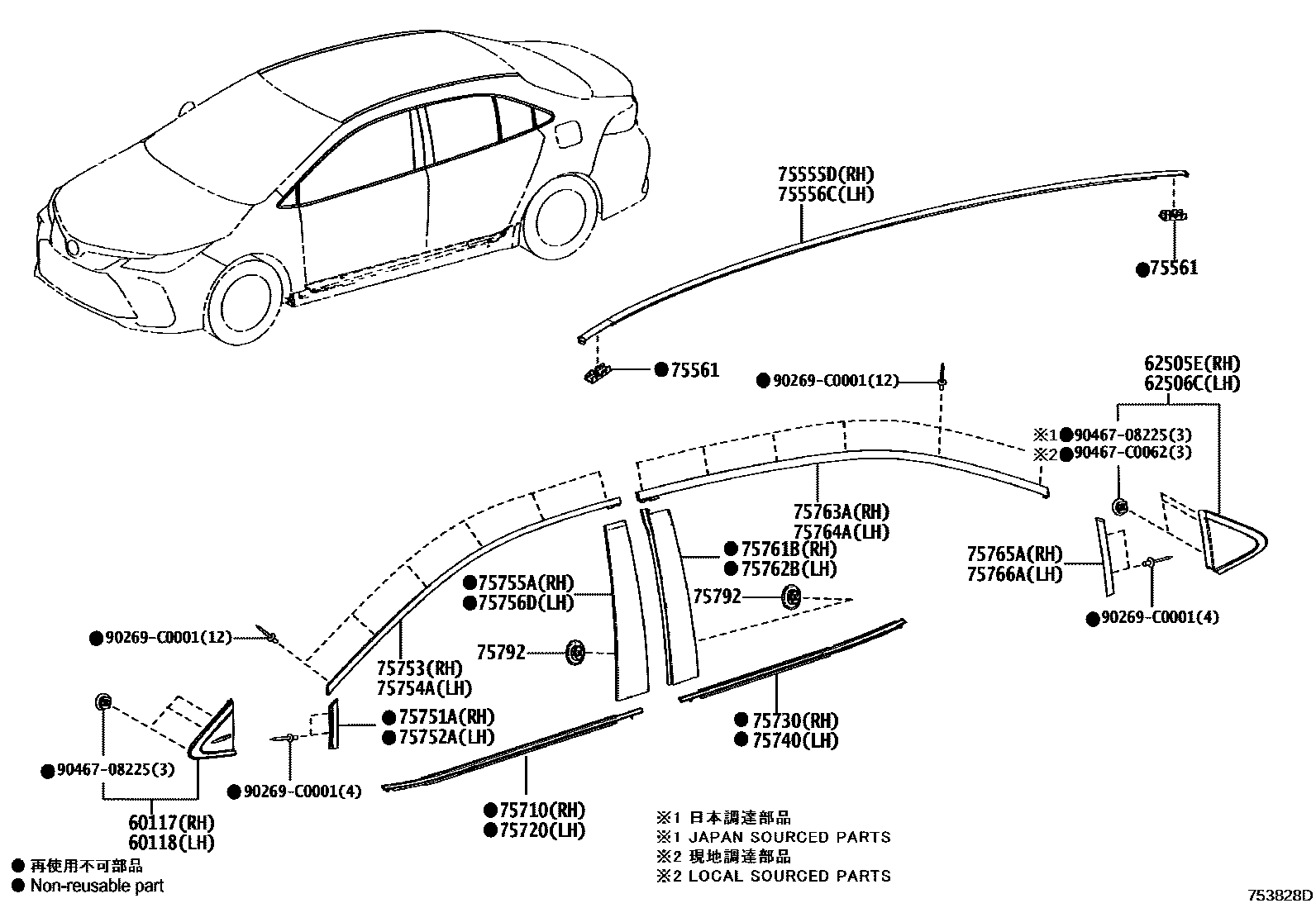

SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02350iMZEA11..CVT;NRE210..G,N201906-202303

main60117-02360iZWE211201906-202007

main60117-02470iZWE211202007-202303

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02350iNRE210..E201906

main60118-02360iZWE211201906-202007

main60118-02470iZWE211202007-202303

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-02130iMZEA11..CVT;NRE210..G,N201906-202303

NO PAINT REQ.

main62505-02140iZWE211201906-202007

NO PAINT REQ.

main62505-02210iZWE211202007-202303

NO PAINT REQ.

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-02130iNRE210..E201906

NO PAINT REQ.

main62506-02140iZWE211201906-202007

NO PAINT REQ.

main62506-02210iZWE211202007-202303

NO PAINT REQ.

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02370iNRE210..E201906

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02350iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iNRE210..E201906

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02610iMZEA11..CVT;NRE210..G,N201906-202303

BLACK

main75710-12871iZWE211201906-202008

SILVER(STAINLESS)

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02610iNRE210..E201906

BLACK

main75720-12A21iZWE211201906-202008

SILVER(STAINLESS)

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02610iMZEA11..CVT;NRE210..G,N201906-202303

BLACK

main75730-12461iZWE211201906-202008

SILVER(STAINLESS)

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02610iMZEA11..CVT;NRE210..G,N201906-202303

BLACK

main75740-12551iZWE211201906-202008

SILVER(STAINLESS)

75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)

main75751-02090iMZEA17,ZWE219202304

75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)

main75752-02090iMZEA17,ZWE219202304

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-02120iMZEA11..CVT;NRE210..G,N201906-202303

main75753-02130iZWE211201906-202303

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-02120iMZEA17,ZWE219202304

main75754-02130iZWE211201906-202303

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-02200iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-02200iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-02210iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-02210iNRE210..E201906

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-02140iNRE210..E201906

main75763-02150iZWE211201906-202303

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-02140iMZEA17,ZWE219202304

main75764-02150iZWE211201906-202303

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-02100iNRE210..E201906

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-02100iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D030×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main75792-47010×2iMZEA17,ZWE219202304

(J)

90269C0001

main90269-C0001

9046708225

main90467-08225

90467C0062

main90467-C0062

27 parts on this diagram · 2 diagrams in section
