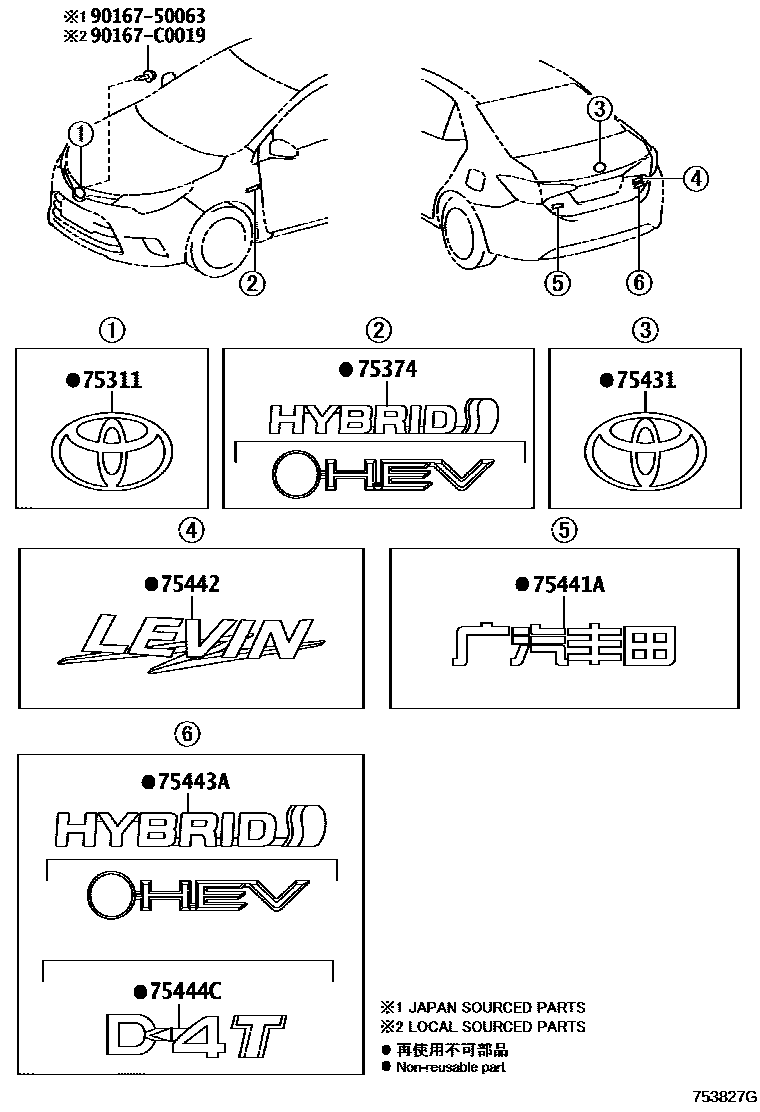

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-02120iZWE219..E,N202407

main53141-02130iZWE219..E,N202304-202407

main75403-02070iZWE219..G202304-202407

main90975-02124iNRE210..E; NRE210..E,G; NRE210..N201906-201911

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH

main90975-02136iZWE211..E; ZWE211..E,G; ZWE211..N201906-201911

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE; SPORT PACKAGE&CLEARANCE & BACK SONAR-WITH

main90975-C2002supersedes 90975-C2028iMZEA17..G202304

main90975-C2028supersedes 75311-02230iMZEA11,NRE210..N; NRE210..G;MZEA11..E,G201911-202303

(L); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,(L)

main90975-C2029supersedes 75311-02280iZWE211..E,G; ZWE211..N201911-202303

(L); ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE,(L)

main75311-02230iMZEA17..N202304

VFM PACKAGE

75374EMBLEM, SIDE PANEL

main75374-02170iZWE211201906-202303

RH

main75374-02180iZWE211201906-202303

LH

main75440-0E040×2iZWE219202407

main75440-02090×2iZWE219..E202407

BE,RH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-02070iZWE219; ZWE219..E202304-202407

BE

main90975-C2002iMZEA17202304

main75446-YY140iZWE219..E202407

BE

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-02410iNRE210..G,N;MZEA11,ZWE211201906-202303

main75441-02510iMZEA17,ZWE219; NRE210..E202304

main75441-02520iZWE219..E202407

BE

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02420iZWE219202304

LEVIN

main75442-02580iMZEA17202304

LEVIN

main75442-02690iZWE219..E202407

LEVIN,BE

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75440-0E090iZWE219202407

HEV

main75443-02380iZWE211201906-202303

HYBRID

main75440-02100iZWE219..E202407

HEV,BE

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75447-02500iNRE210..G,N201906-202303

D-4D

9016750063

main90167-50063

90167C0019

main90167-C0019

9 parts on this diagram · 1 diagram in section
