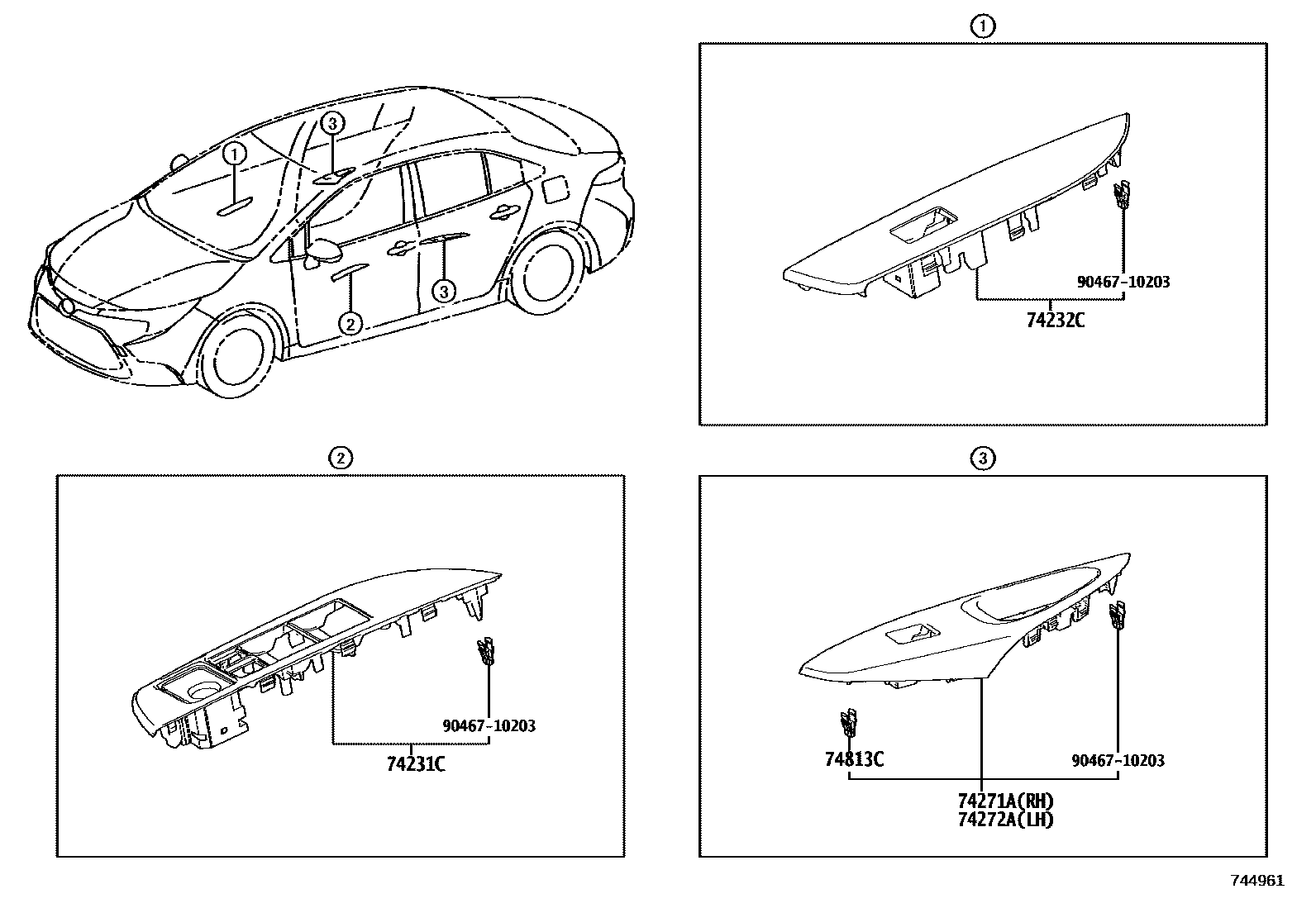

ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP 0003 1VISOR & ASSIST GRIP

74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE

main74232-02K10iNRE210..E201906-202407

main74232-02L30iNRE210..E202304

74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE

main74231-02J50iNRE210..E201906-202304

main74231-02K40iMZEA17,ZWE219202304

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02A60iNRE210..E201906-202304

main74271-02B00iNRE210..E202304

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02A50iNRE210..G,N;MZEA11,ZWE211201906-202304

main74272-02A90iNRE210..E202304

74813CCLIP

main55416-60030iNRE210..E201906-202303

9046710203

main90467-10203

6 parts on this diagram · 3 diagrams in section
