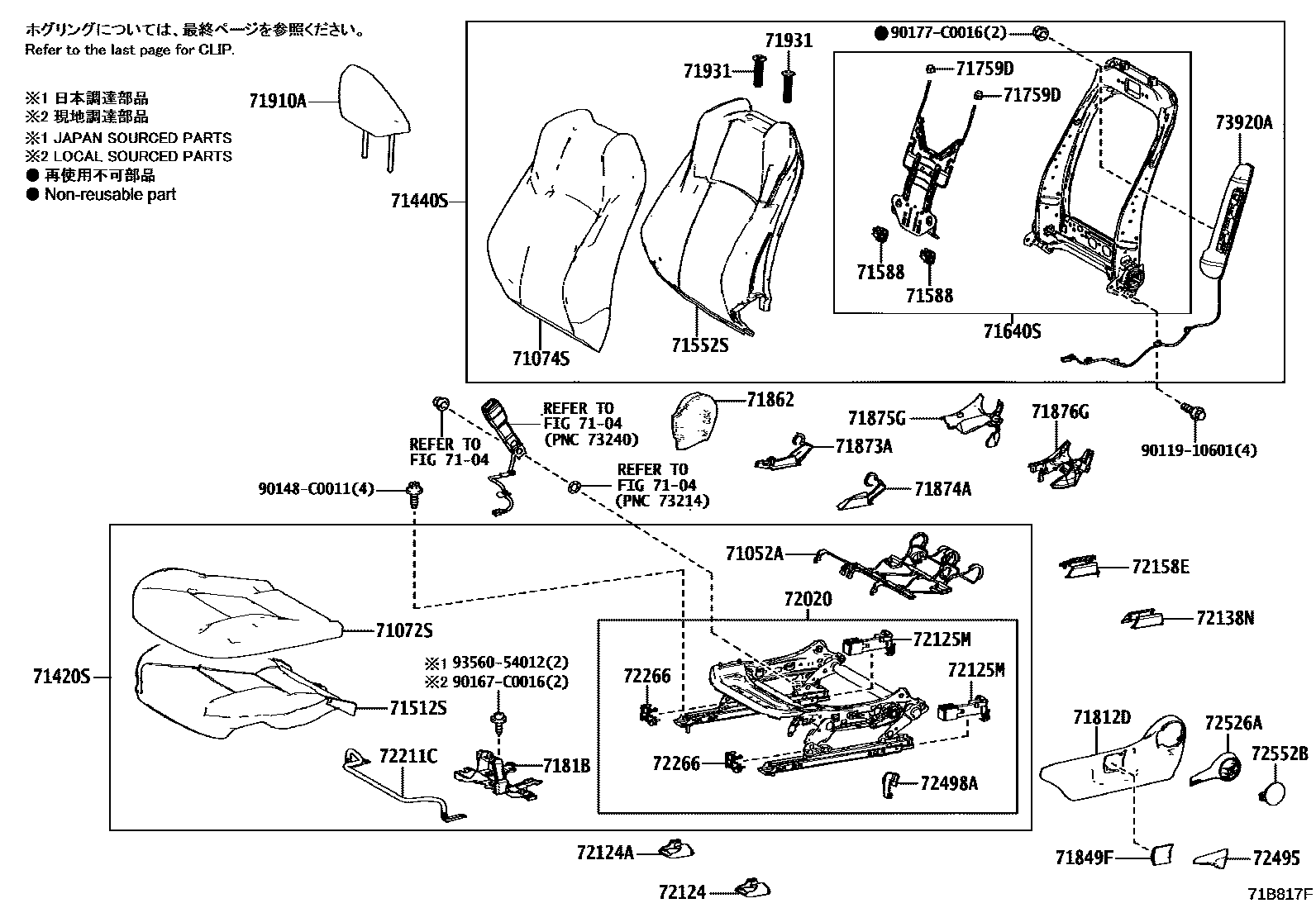

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040i202304

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0ZE40-C0i202007-202303

BLACK,TRIM1#,2#

main71072-0ZR80-C1i201906-202007

BLACK,TRIM1#,2#

main71072-0ZW40-C1i202304

BLACK,TRIM2#

main71072-0ZY30-A0i202407

BLACK,TRIM2#

main71072-0ZY30-C2i202407

BLACK,TRIM20

main71072-0ZY40-C3i202304

BLACK/SAND BROWN,TRIM2#

main71072-0ZY40-E3i202304

SAND BROWN,TRIM4#

main71072-0ZF50-A0i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,CKD COLOR,TRIM1#,20

main71072-0ZF50-A1i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER,GTMC COLOR,TRIM20

main71072-0ZF60-A0i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),CKD COLOR,TRIM1#,20

main71072-0ZF60-A1i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),GTMC COLOR,TRIM20

main71072-0ZR60-B0i201906-201911

SPORT PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY,TRIM1#

main71072-0ZR60-C0i201906

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71072-0ZR70-B0i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),SE GRAY,TRIM1#; SPORT PACKAGE,SE GRAY,TRIM1#

main71072-0ZR70-C0i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#

main71072-0ZW50-C3i202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/SAND BROWN,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0ZN10-C0i202007-202303

BLACK/BLACK,TRIM2#

main71074-0ZN10-C1i202007-202303

BLACK/COOL GRAY,TRIM1#

main71074-0ZZ50-B2i201906-202007

DK.GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GARY,TRIM1#

main71074-0ZZ50-C2i201906-202007

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71074-0ZZ51-B2i202007

DK.GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GRAY,TRIM1#

main71074-0ZZ51-C2i202007-202303

BLACK,TRIM2#

main71074-0ZZ70-C4i201906-202007

BLACK,TRIM2#

main71074-0ZZ70-C5i201906-202007

BLACK,TRIM1#

main71074-F2470-C2i202304

BLACK,TRIM2#

main71074-F2670-A0i202407

BLACK,TRIM2#

main71074-F2670-C1i202304-202407

BLACK,TRIM2#

main71074-F2680-C2i202304

BLACK/SAND BROWN,TRIM2#

main71074-F2680-E3i202304

SAND BROWN,TRIM4#

main71074-0ZX70-B0i202101-202111

SEAT COVER MATERIAL-FABRIC(FOR SPORT PACKAGE),SE GRAY,TRIM1#

main71074-0ZX70-C0i202101-202111

SEAT COVER MATERIAL-FABRIC(FOR SPORT PACKAGE),BLACK,TRIM2#

main71074-0ZZ60-B2i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),SE GARY,TRIM1#; SPORT PACKAGE,SE GARY,TRIM1#

main71074-0ZZ60-C2i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#

main71074-F2280-A0i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER,CKD COLOR,TRIM1#,20

main71074-F2280-A1i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,GTMC COLOR,TRIM20

main71074-F2290-A0i202111-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),CKD COLOR,TRIM1#

main71074-F2290-A1i202111-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),GTMC COLOR,TRIM2#

main71074-F2480-C3i202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/SAND BROWN,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0ZD50-B2i201906-202007

COOL GARY,TRIM1#

main71420-0ZD50-C2i201906-202007

BLACK,TRIM2#

main71420-0ZJ30-B0i202007-202303

COOL GRAY,TRIM1#

main71420-0ZJ30-C0i202007-202303

BLACK,TRIM2#

main71420-0ZM70-C2i202304-202408

BLACK,TRIM2#

main71420-0ZM70-C3i202408

BLACK,TRIM2#

main71420-0ZM90-C3i202304

BLACK/SAND BROWN,TRIM2#

main71420-0ZM90-E3i202304

SAND BROWN,TRIM4#

main71420-0ZQ40-C3i202304-202408

BLACK,TRIM2#

main71420-0ZQ40-C4i202407-202408

BLACK,TRIM20

main71420-0ZQ40-C5i202408

BLACK,TRIM2#

main71420-0ZQ40-C6i202408

BLACK,TRIM20

main71420-0Z700-B1i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),COOL GRAY,TRIM1#

main71420-0Z700-C2i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#

main71420-0Z750-B0i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#

main71420-0Z750-C1i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71420-0ZD30-B0i201906

DK.GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GARY,TRIM1#

main71420-0ZD30-C0i201906

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71420-0ZD40-B0i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),SE GARY,TRIM1#; SPORT PACKAGE,SE GARY,TRIM1#

main71420-0ZD40-C0i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#

main71420-0ZM80-C4i202304-202408

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71420-0ZM80-C5i202408

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71070-02F30-B4i201906-202007

COOL GARY,TRIM1#

main71070-02F30-C3i201906-202007

BLACK,TRIM2#

main71070-02M00-B0i202007-202303

COOL GRAY,TRIM1#

main71070-02M00-C0i202007-202303

BLACK,TRIM2#

main71070-02P60-C2i202304

BLACK,TRIM2#

main71070-02P80-C2i202304

BLACK/SAND BROWN,TRIM2#

main71070-02P80-E3i202304

SAND BROWN,TRIM4#

main71070-02S90-C1i202304

BLACK,TRIM2#

main71070-02S90-C2i202407

BLACK,TRIM20

main71070-02600-B0i202101-202111

SEAT COVER MATERIAL-FABRIC(FOR SPORT PACKAGE),SE GRAY,TRIM1#

main71070-02600-C0i202101-202111

SEAT COVER MATERIAL-FABRIC(FOR SPORT PACKAGE),BLACK,TRIM2#

main71070-02F10-B3i201906

DK.GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK.GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK.GARY,TRIM1#

main71070-02F10-C3i201906

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71070-02F20-B3i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),SE GARY,TRIM1#; SPORT PACKAGE,SE GARY,TRIM1#

main71070-02F20-C3i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#

main71070-02N70-B2i202111-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),COOL GRAY,TRIM1#

main71070-02N70-C2i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#

main71070-02N80-B1i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#

main71070-02N80-C1i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71070-02P70-C2i202304

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02C80i201906-202303

main71512-02C90i201906-202303

main71512-02D40i202304

main71512-02D50i202304

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02C90i201906-202303

main71552-02D80i202304

71588PROTECTOR, FRONT SEATBACK EDGE, NO.2

main71587-06010×2i201906-202303

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-02C60i201906-202303

main71640-02D10i201906-202303

main71640-02E40i202304

main71640-02E50i202304

71759DHOOK, FRONT SEATBACK, NO.2

main71759-06030×2i201906-202303

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02B20-C0i202304

BLACK,TRIM2#,4#

main71812-06570-C0i201906-202303

BLACK,TRIM1#,2#

main71812-06580-C0i201906-202303

BLACK,TRIM1#,2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-06010i202304

main7181B-06020i202304

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-F4040-C0supersedes 71849-06010-C0i202304

BLACK,TRIM2#

main71849-06010-C0i201906-201911

SPORT PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM1#,2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-06340-C0i201906-202303

BLACK,TRIM1#,2#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71874-02510i202304

main71874-06400i201906-202303

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06390i201906-202303

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71876-06420-C0i201906-202303

BLACK,TRIM1#,2#

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-06390-C0i201906-202303

BLACK,TRIM1#,2#

71910AHEADREST ASSY, FRONT SEAT

main71910-02V00-B1×2i201906-202009

COOL GARY,TRIM1#

main71910-02V00-B3×2i202009-202303

COOL GRAY,TRIM1#

main71910-02V00-C1×2i201906-202009

BLACK,TRIM2#

main71910-02V00-C3×2i202009-202303

BLACK,TRIM2#

main71910-02X70-B1×2i202101-202303

COOL GRAY,TRIM1#

main71910-02X70-C1×2i202101-202303

BLACK,TRIM2#

main71910-02Z60-C3×2supersedes 71910-02V70-C1i202304

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-02Z60-E2×2i202304

SAND BROWN,TRIM4#

main71910-0Z120-C0×2supersedes 71910-0Z110-C0i202304

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-0Z120-E0×2i202304

SAND BROWN,TRIM4#

main71910-02U80-B0×2i201906-202009

COOL GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),COOL GARY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GARY,TRIM1#

main71910-02U80-B3×2i202009

DK. GRAY/BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),DK. GRAY/BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,DK. GRAY/BLACK,TRIM2#

main71910-02U80-B4×2i202009-202209

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),COOL GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#

main71910-02U80-C0×2i201906-202009

BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

main71910-02U90-B2×2i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),SE GARY,TRIM1#; SPORT PACKAGE,SE GARY,TRIM1#

main71910-02U90-C2×2i201906-202007

SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION),BLACK,TRIM2#; SPORT PACKAGE,BLACK,TRIM2#

main71910-02W60-A0×2i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),CKD COLOR,TRIM1#,20

main71910-02W60-A1×2i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),GTMC COLOR,TRIM20

main71910-02W70-A0×2i202007

SEAT COVER MATERIAL-SYNTHETIC LEATHER,CKD COLOR,TRIM1#,20

main71910-02W70-A1×2i202007-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,GTMC COLOR,TRIM20

main71910-02X50-B1×2i202101-202209

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),BLACK/DK.GRAY,TRIM2#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/DK.GRAY,TRIM2#

main71910-02X50-B2×2i202101-202209

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),COOL GRAY,TRIM1#; SEAT COVER MATERIAL-SYNTHETIC LEATHER,COOL GRAY,TRIM1#

main71910-02X60-B1×2i202101-202111

SEAT COVER MATERIAL-FABRIC(FOR SPORT PACKAGE),SE GRAY,TRIM1#

main71910-02X60-C1×2i202101-202111

SEAT COVER MATERIAL-FABRIC(FOR SPORT PACKAGE),BLACK,TRIM2#

main71910-02X90-A0×2supersedes 71910-02X50-B2i202101-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,CKD COLOR,TRIM1#

main71910-02X90-A1×2supersedes 71910-02X50-B1i202101-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER,-,TRIM2#

main71910-0Z060-A0×2i202111-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),CKD COLOR,TRIM1#

main71910-0Z060-A1×2i202111-202303

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE),GTMC COLOR,TRIM2#

71931SUPPORT, FRONT SEAT HEADREST

main71930-06070-B0×2i201906-202303

W(LOCK),COOL GRAY,TRIM1#; W(LOCK),COOL GRAY,TRIM10

main71930-06070-C0×2i201906-202303

W(LOCK),BLACK,TRIM10,2#; W(LOCK),BLACK,TRIM2#

main71931-06060-B0×2i201906-202303

W/O(LOCK),COOL GRAY,TRIM1#; W/O(LOCK),COOL GRAY,TRIM10

main71931-06060-C0×2i202304

W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,4#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02A90i202304

main72020-02B00i202304

main72020-06371supersedes 72020-06370i202001-202103

SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE)

main72020-06372i202104-202303

main72020-06380i201906-202303

main72020-06370i201906-202001

SEAT COVER MATERIAL-SYNTHETIC LEATHER; SEAT COVER MATERIAL-SYNTHETIC LEATHER(FOR SPORT PACKAGE); SPORT PACKAGE&SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE & CUSHION)

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-06110i201906-202303

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-06110i202304

72125MCOVER, SEAT TRACK, UPPER NO.3

main72125-06050×2i202304

main72125-06060×2i201906-202303

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-06130i201906

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-06200i201906-202303

72211HANDLE, SEAT TRACK ADJUSTING
