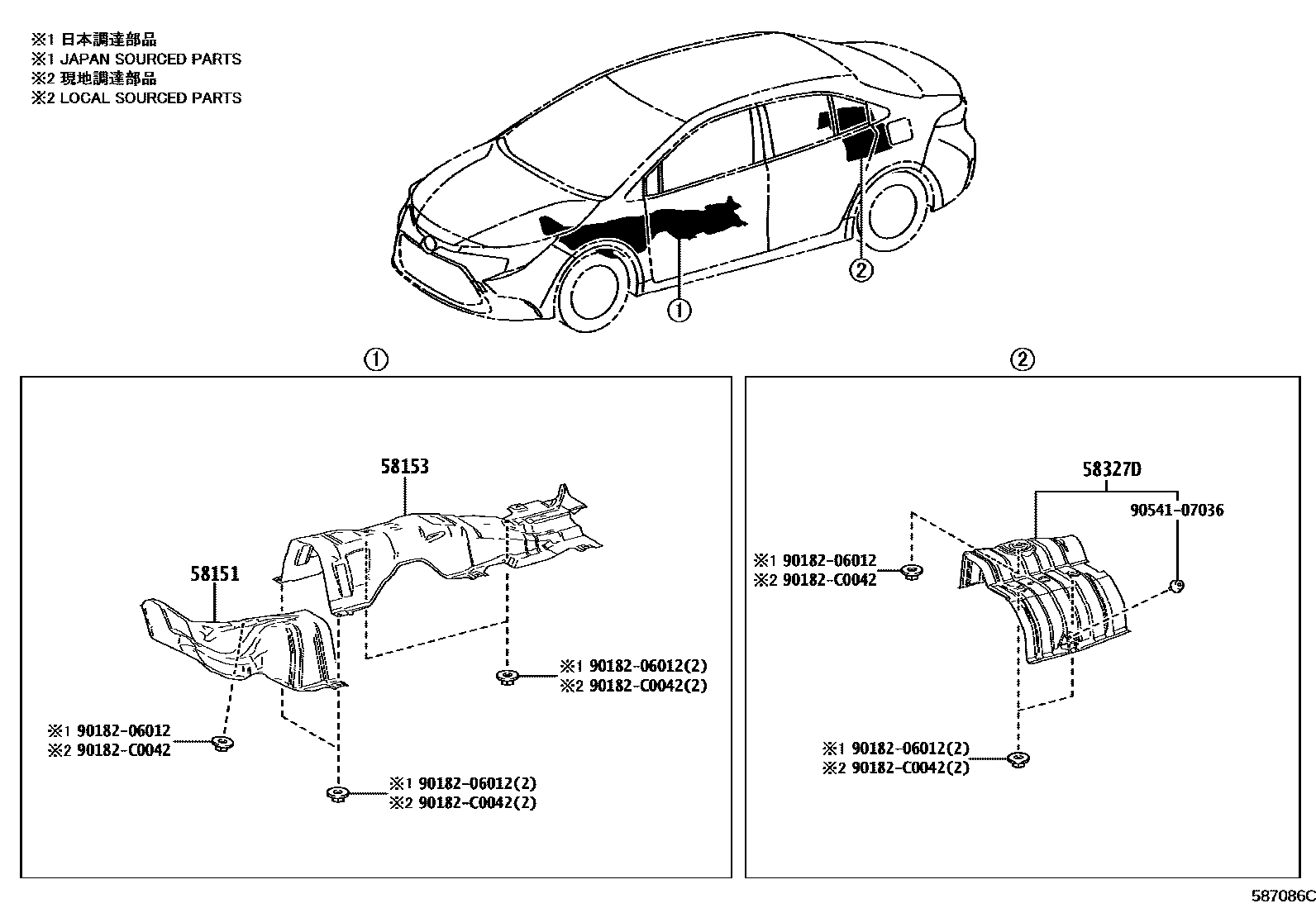

FLOOR INSULATOR

0001 1 0003 1 0004 1 0005 1 0006 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-02480iMZEA11..CVT202101-202201

main58151-02481iMZEA11..CVT202202-202303

main58151-02750iNRE210..G,N201906-202303

main58151-02760iZWE211201906-202303

main58151-02830iZWE219202304

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-02440iMZEA11,NRE210,ZWE211..CVT201906-202201

main58153-02441iNRE210..G,N;MZEA11,ZWE211..CVT202202-202303

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-02320iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

9018206012

main90182-06012

90182C0042

main90182-C0042

9054107036

main90541-07036

6 parts on this diagram · 5 diagrams in section
