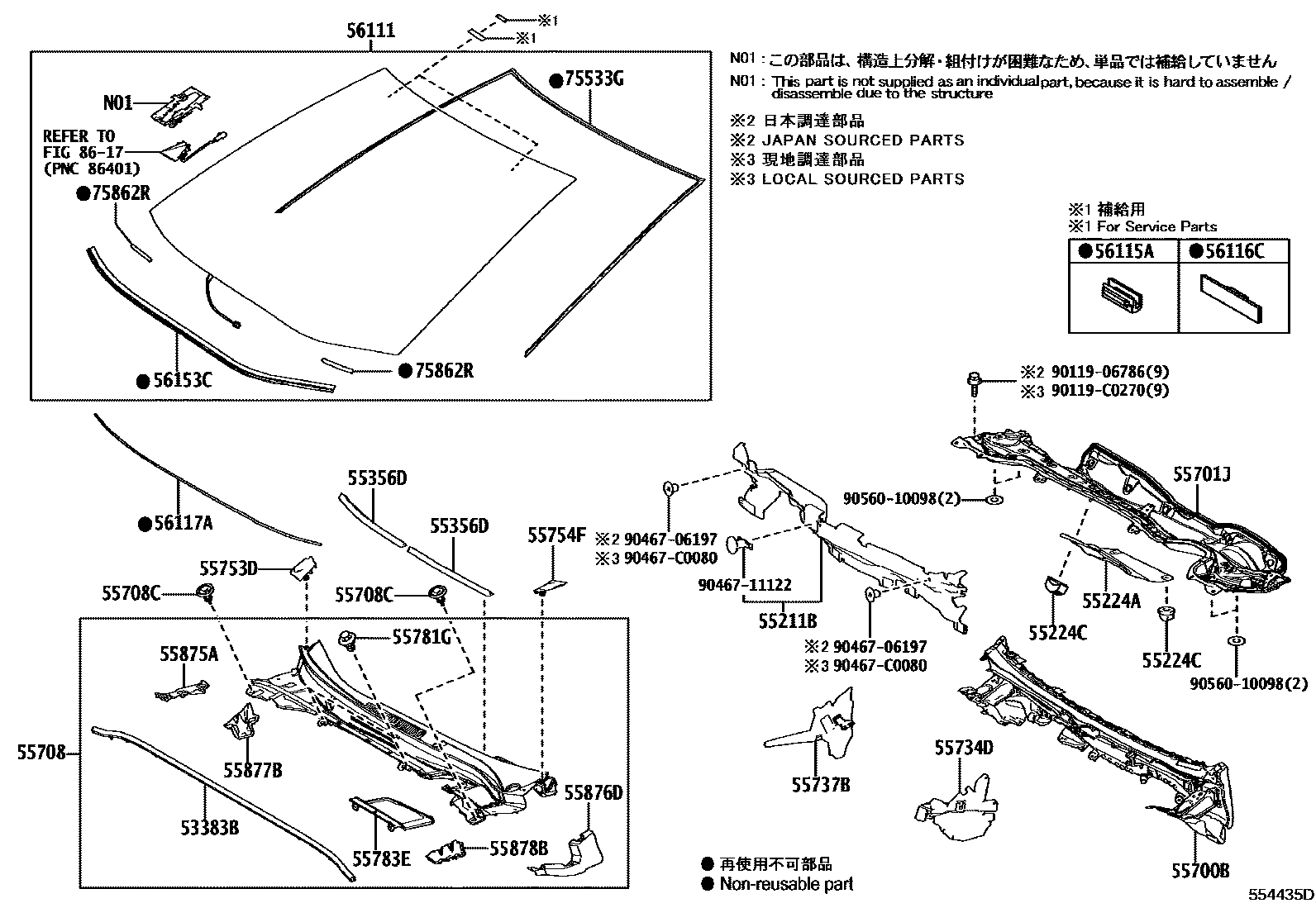

COWL PANEL & WINDSHIELD GLASS

0001 1 0003 1 0004 1

53383BSEAL, HOOD TO COWL TOP

main53383-02320iNRE210..G,N;MZEA11,ZWE211201906-202303

55211BSILENCER, FRONT PANEL

main55211-02360iNRE210..E201906

main55211-02430iMZEA17,ZWE219202304

main55211-12790iMZEA11,ZWE211..CVT201906-202303

(J)

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-02300iNRE210201906-202011

main55224-02301iMZEA17,ZWE219202304

55224CCLIP, DASH PANEL INSULATOR

main90467-06206-C0×4iNRE210201906-202011

BLACK

main90467-C0055×4iMZEA17,ZWE219202304

(L)

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-02570×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55700BCOWL ASSY

main55700-02740iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-02680iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02B00iNRE210..G,N;MZEA11,ZWE211201906-202303

main55708-02C60iNRE210..E202304-202512

55708CCLIP, COWL TOP VENTILATOR LOUVER

main90467-09242×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

(J)

main90467-C0037×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

(L)

55734DPLATE, WATER GUARD

main55734-02480iNRE210,ZWE211201906-202003

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02310iNRE210,ZWE211201906-202003

55753DSHIELD, COWL WATER EXTRACT, RH

main55753-02240iNRE210..G,N;MZEA11,ZWE211201906-202303

main55753-02280iNRE210..E202304-202512

55754FSHIELD, COWL WATER EXTRACT, LH

main55754-02250iNRE210..G,N;MZEA11,ZWE211201906-202303

main55754-02290iNRE210..E202304-202512

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07224×2iNRE210..G,N;MZEA11,ZWE211201906-202303

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-02380iNRE210..G,N;MZEA11,ZWE211201906-202303

55875ASEAL, AIR DUCT, NO.5

main55875-02290iNRE210..G,N;MZEA11,ZWE211201906-202303

55876DSEAL, AIR DUCT, NO.6

main55876-02200iNRE210..G,N;MZEA11,ZWE211201906-202303

55877BCOVER, COWL VENT, RH

main55877-02330iNRE210..G,N;MZEA11,ZWE211201906-202303

55878BCOVER, COWL VENT, LH

main55878-02270iNRE210..G,N;MZEA11,ZWE211201906-202303

56111GLASS, WINDSHIELD

main56101-02M60supersedes 56101-02M50iMZEA11,NRE210,ZWE211..N; NRE210..G;MZEA11,ZWE211..E,G201906-202303

ACTIVE SAFETY PACKAGE-TOYOTA SAFETY SENSE

main56101-0ZC60iMZEA17,ZWE219202304

main56101-0Z070supersedes 56101-0ZK00iNRE210..E201906-202304

TECH PACKAGE

main56101-0ZC50iMZEA17..N202304

VFM PACKAGE

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iNRE210..E201906

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iNRE210..G,N;MZEA11,ZWE211201906-202303

56117ADAM, WINDOW GLASS ADHESIVE

main56117-02350iMZEA17,ZWE219; MZEA17..N202304

*D,L=1298; *D,L=1298,VFM PACKAGE

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-02110iNRE210..G,N;MZEA11,ZWE211201906-202303

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-02250iNRE210..G,N;MZEA11,ZWE211201906-202303

75862RPROTECTOR, ROCKER PANEL MOULDING, NO.2

main75862-02060×2iNRE210..G,N;MZEA11,ZWE211201906-202303

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9011906786

main90119-06786

90119C0270

main90119-C0270

9046706197

main90467-06197

9046711122

main90467-11122

90467C0080

main90467-C0080

9056010098

main90560-10098

33 parts on this diagram · 3 diagrams in section
