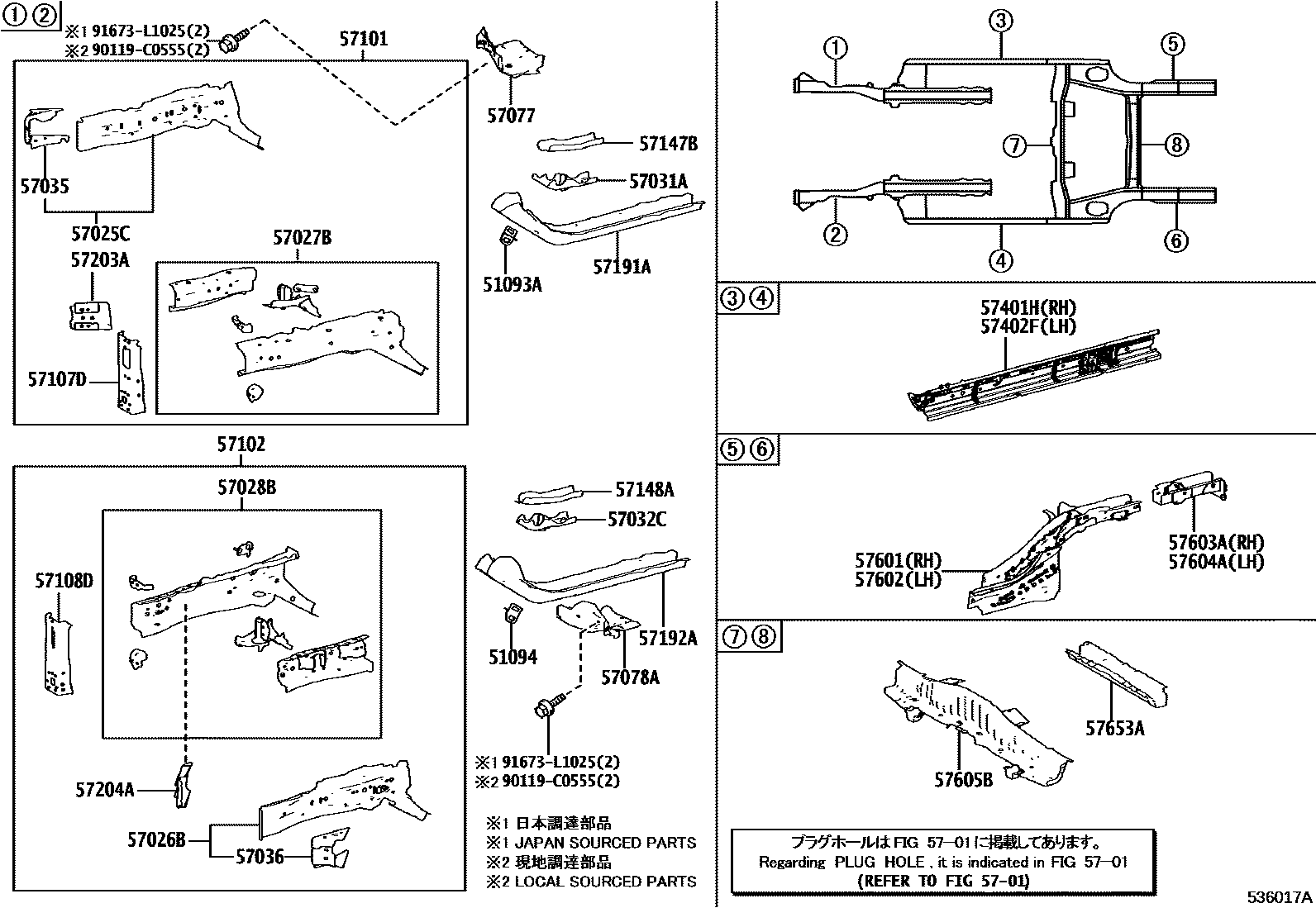

FLOOR SIDE MEMBER

0001 1 0003 1 0005 1

51093AHOOK SUB-ASSY, TRANSPORT, FRONT RH

main51093-F4030iNRE210,ZWE211201906-202002

51094HOOK SUB-ASSY, TRANSPORT, FRONT LH

main51094-F4030iNRE210,ZWE211201906-202002

5701HOLE PLUG

→ Go to FIG 57-01

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH

main57027-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH

main57028-F4040iMZEA17,ZWE219202304

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57032CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57035PANEL SUB-ASSY, FRONT STEP, RH

main57035-F4041iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57036PANEL SUB-ASSY, FRONT STEP, LH

main57036-F4041iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-F4040iNRE210,ZWE211201906-202006

main57077-F4041iNRE210..G,N;MZEA11,ZWE211..CVT202006-202303

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-F4040iNRE210,ZWE211201906-202006

main57078-F4041iNRE210..G,N;MZEA11,ZWE211..CVT202006-202303

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-F4907iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-F4906iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-02160iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-02160iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57147BPLATE, FRONT SIDE MEMBER, REAR RH

main57147-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57148APLATE, FRONT SIDE MEMBER, REAR LH

main57148-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-F4040iNRE210..E201906

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-F4040iNRE210..E201906

57203AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57203-F4041iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57204AEXTENSION SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57204-F4041iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-02430iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-02440iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-02580iMZEA17202304

main57601-02620iNRE210..E; ZWE219202304

main57601-F4040iMZEA11,NRE210,ZWE211..CVT201906-202303

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-02680iMZEA17202304

main57602-02720iNRE210..E; ZWE219202304

main57602-F4040iMZEA11,NRE210,ZWE211..CVT201906-202303

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-02270iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main57603-02300iMZEA17202304

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-02170iNRE210..E201906-202402

main57604-02171iNRE210..E; ZWE219202403

main57604-02200iMZEA17202304-202402

main57604-02201iMZEA17202403

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02380iZWE211201906-202303

main57605-0A090iMZEA17202304

main57605-F4070iMZEA11..CVT;NRE210..G,N201906-202303

57653AMEMBER, REAR FLOOR CROSS, NO.2

main57653-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

90119C0555

main90119-C0555

91673L1025

main91673-L1025

33 parts on this diagram · 3 diagrams in section
