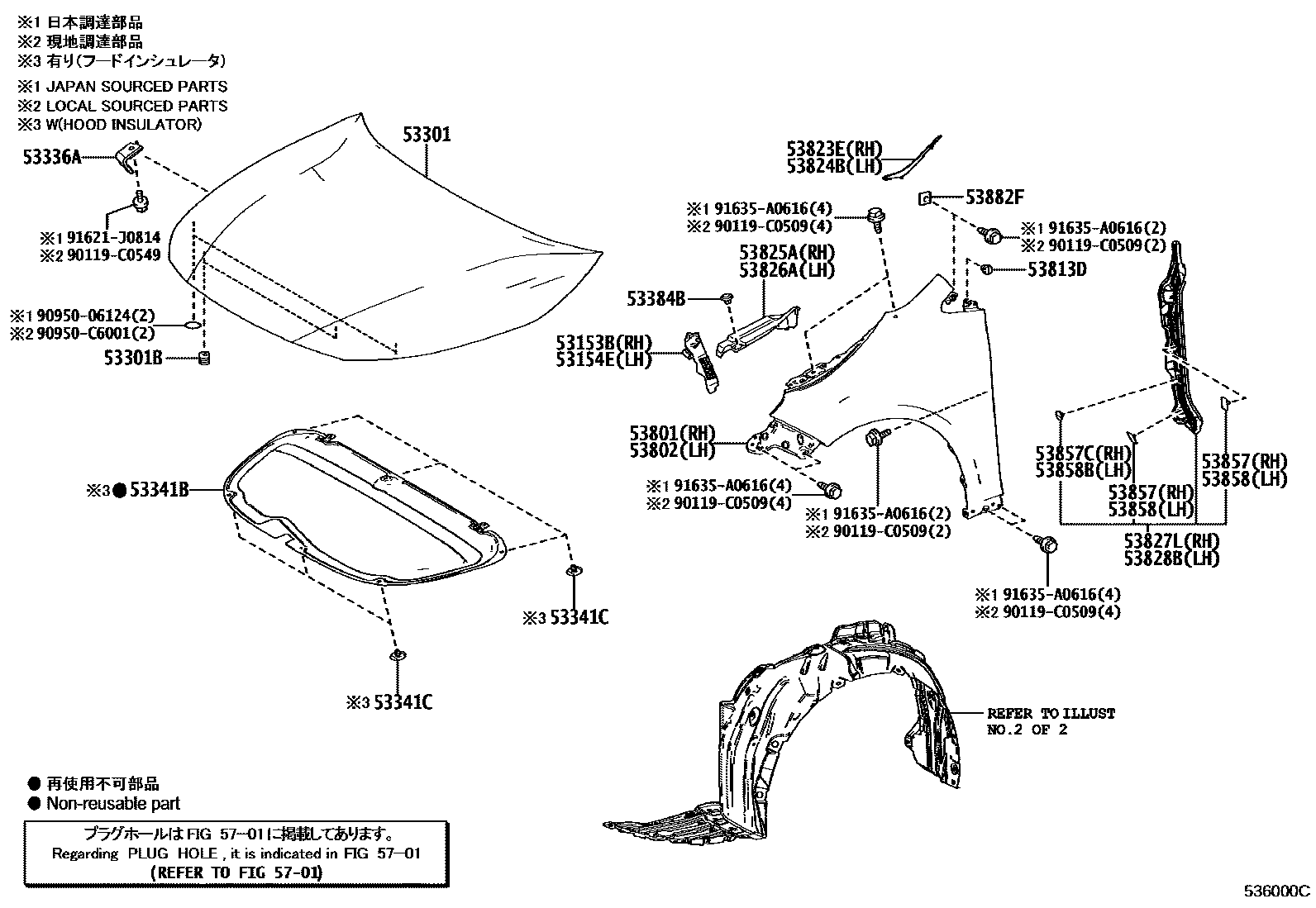

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-02160iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53154EGUIDE, FRONT SIDE AIR, NO.2

main53154-02160iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53301HOOD SUB-ASSY

main53301-02440iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53301BCUSHION, HOOD BUMPER

main90541-09117×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53336ABRACKET, HOOD STAY

main53336-02020iNRE210..E201906

53341BINSULATOR, HOOD

main53341-02450iNRE210..E,G;MZEA11,ZWE211201906-202303

main53341-02451iMZEA17,ZWE219; NRE210..E202304

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×6iNRE210..G;MZEA11,ZWE211..CVT201906-202303

(J)

main90467-C0006×6iNRE210..E201906

(L)

53384BCUSHION, HOOD, CENTER

main53384-02030×2iMZEA17,ZWE219202304

(L)

main53384-78010×2iNRE210..E202008

(J)

53801FENDER SUB-ASSY, FRONT RH

main53801-02340iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53802FENDER SUB-ASSY, FRONT LH

main53802-02330iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53813DEXTENSION, FRONT FENDER

main53813-48011×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02251iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02251iNRE210..E201906

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02230iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02230iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02310iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02310iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

53857CRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-06020iMZEA17,ZWE219202304

(L)

main53857-47011iNRE210..E202005

(J)

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010×2iNRE210..E201906

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-06020iMZEA17,ZWE219202304

(L)

main53857-47011iNRE210..G,N;MZEA11,ZWE211..CVT202005-202303

(J)

53882FSEAL, FRONT FENDER

main53882-0D030×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

(L)

main53882-33060×2iNRE210..E201906

(J)

5701HOLE PLUG

→ Go to FIG 57-01

90119C0509

main90119-C0509

90119C0549

main90119-C0549

9095006124

main90950-06124

90950C6001

main90950-C6001

91621J0814

main91621-J0814

91635A0616

main91635-A0616

29 parts on this diagram · 2 diagrams in section
