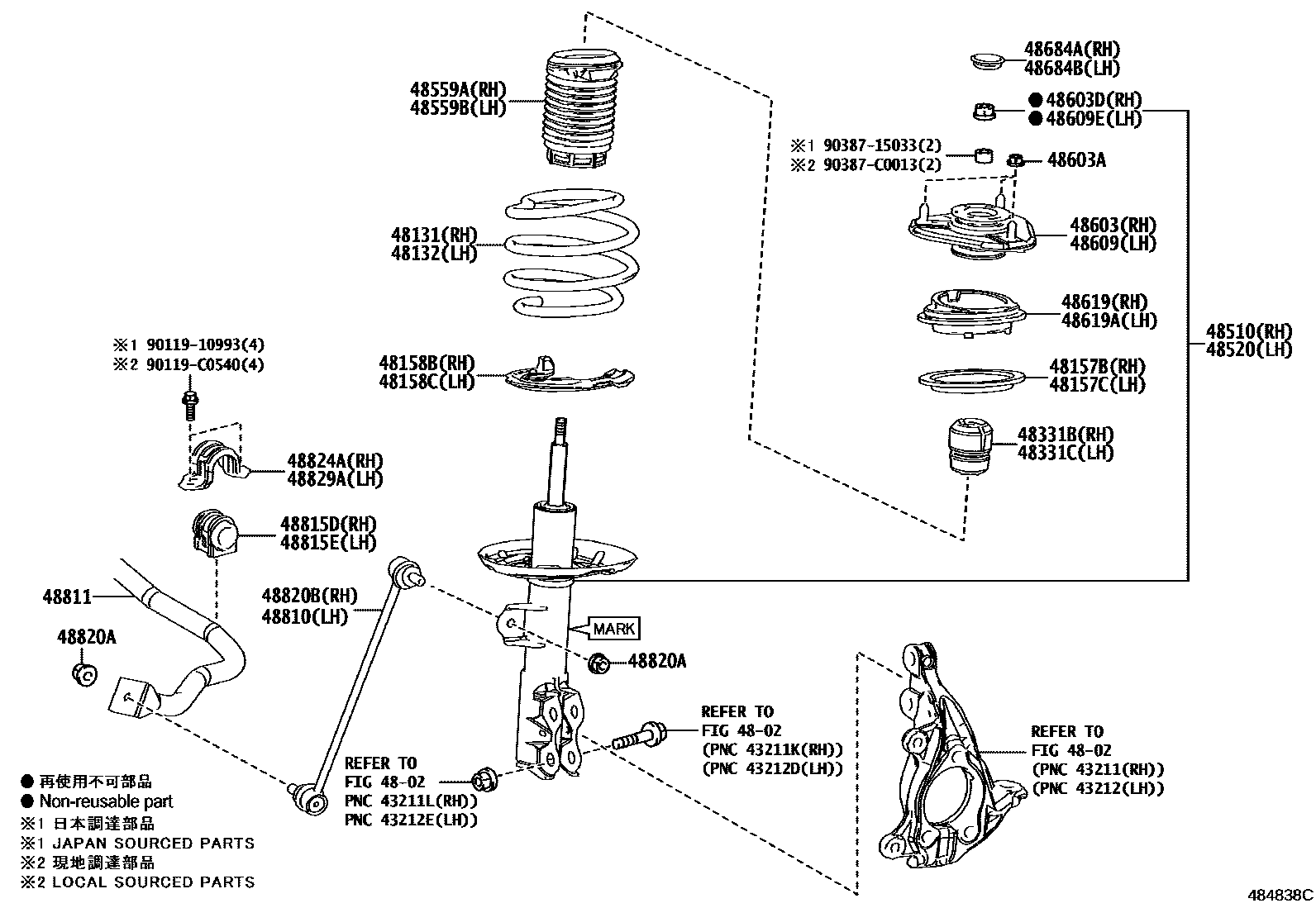

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0Z800iZWE211;NRE210..G,N201906-202303

main48131-0Z810iMZEA11202101-202303

main48131-0ZA40iZWE219202304

main48131-0ZA60iMZEA17202304

48132SPRING, FRONT COIL, LH

main48131-0Z800iZWE211;NRE210..G,N201906-202303

main48131-0Z810iMZEA11202101-202303

main48131-0ZA40iZWE219202304

main48131-0ZA60iMZEA17202304

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48331BBUMPER, FRONT SPRING, RH

main48331-02210iZWE211;NRE210..G,N201906-202303

main48331-F4030iMZEA17,ZWE219202101-202303

48331CBUMPER, FRONT SPRING, LH

main48331-02210iZWE211;NRE210..G,N201906-202303

main48331-F4030iMZEA17,ZWE219202101-202303

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z408iMZEA11..CVT202101-202303

MARK 48510-02T30

sub48510-8Z546

main48510-8Z410iNRE210..E201906-202303

MARK 48510-02T50

main48510-8Z613iZWE219202304

MARK 48510-02K30

main48510-8Z614iMZEA17202304

MARK 48510-02U50

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z262iMZEA11..CVT202101-202303

MARK 48520-02T30

sub48520-8Z376

main48520-8Z264iZWE211;NRE210..G,N201906-202303

MARK 48520-0T250

main48520-8Z434iZWE219202304

MARK 48520-02K30

main48520-8Z435iMZEA17202304

MARK 48520-02U50

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10029iNRE210..G,N;MZEA11,ZWE211201906-202303

(J)

main90178-C0033iNRE210..G,N;MZEA11,ZWE211201906-202303

(L)

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iNRE210..G,N;MZEA11,ZWE211201906-202303

(J)

main90177-C0025iNRE210..G,N;MZEA11,ZWE211201906-202303

(L)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-F4040iNRE210..G,N;MZEA11,ZWE211201906-202303

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iNRE210..G,N;MZEA11,ZWE211201906-202303

(J)

main90177-C0025iNRE210..G,N;MZEA11,ZWE211201906-202303

(L)

48619BEARING, STRUT MOUNTING, RH

main48619-0A010iNRE210..E202304

main48619-F4030iNRE210..G,N;MZEA11,ZWE211201906-202304

48619ABEARING, STRUT MOUNTING, LH

main48619-0A010iMZEA17,ZWE219202304

main48619-F4030iNRE210..E201906-202304

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-0A010iNRE210..G,N;MZEA11,ZWE211202203-202303

(L)

main48684-52010iMZEA11,NRE210,ZWE211201906-202203

main48684-52010iNRE210..E202203-202303

(J)

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-0A010iNRE210..G,N;MZEA11,ZWE211202203-202303

(L)

main48684-52010iMZEA17,ZWE219202203-202303

(J)

main48684-52010iMZEA11,NRE210,ZWE211201906-202203

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0A020iMZEA17,ZWE219202408

main48820-F4020iMZEA17,ZWE219201906-202409

sub48820-0A020

48811BAR, STABILIZER, FRONT

main48811-02500iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

main48811-02540iZWE219202304

main48811-02550iMZEA17202304

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-02480iMZEA17202304

main48815-02540iZWE219202304

main48815-F4040iNRE210..E201906-202303

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-02480iMZEA17202304

main48815-02540iZWE219202304

main48815-F4040iNRE210..E201906-202303

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-C0018iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

(L)

main94151-21241iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0A020iNRE210..E202408

main48820-F4020iNRE210..G,N;MZEA11,ZWE211201906-202409

sub48820-0A020

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-F4040iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

9011910993

main90119-10993

90119C0540

main90119-C0540

9038715033

main90387-15033

90387C0013

main90387-C0013

34 parts on this diagram · 1 diagram in section
