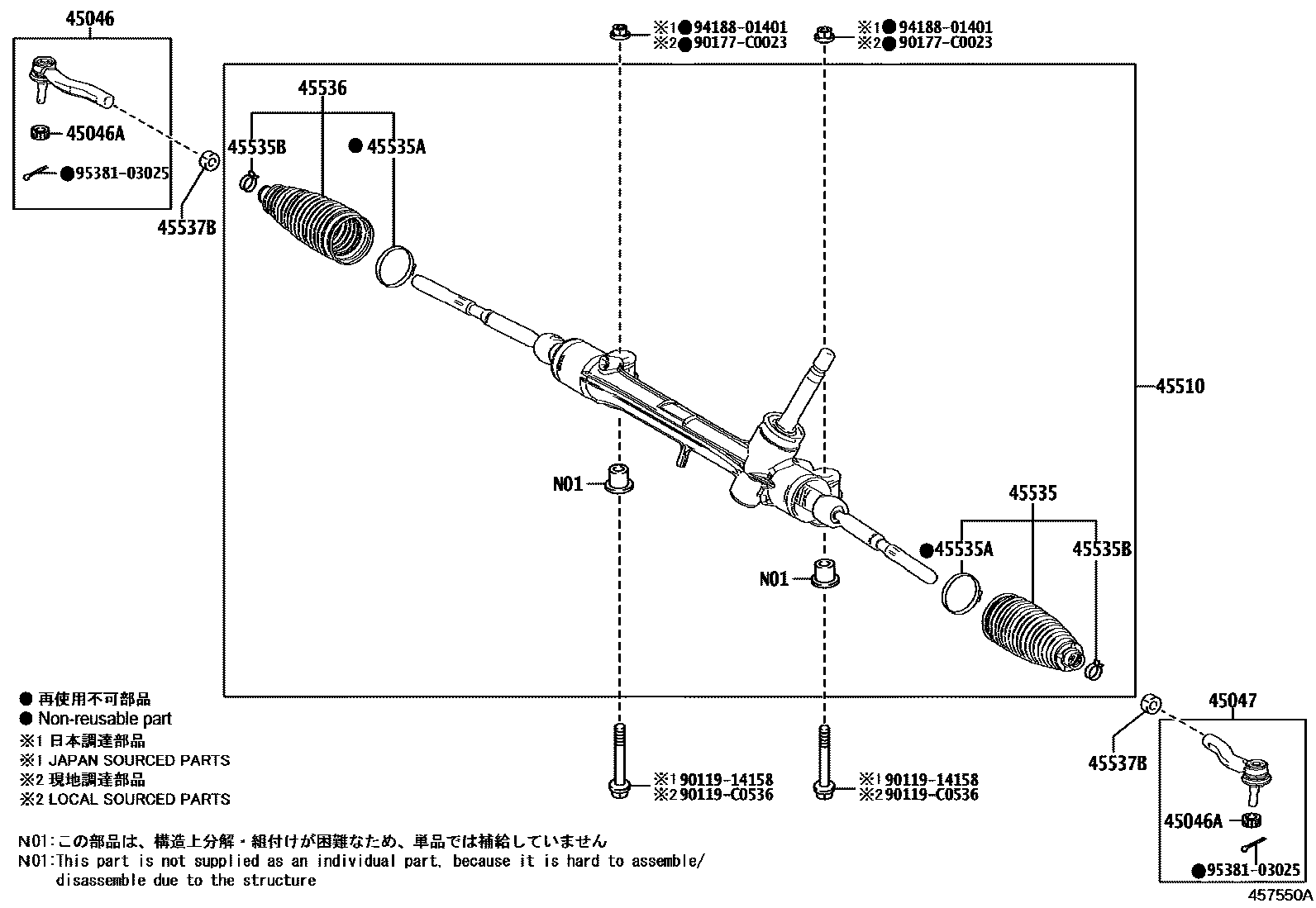

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49265iNRE210..E201906

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iMZEA17,ZWE219202304

(J)

main90171-C0001×2iNRE210..E201906

(L)

45047END SUB-ASSY, TIE ROD, LH

main45047-49205iNRE210..G,N;MZEA11,ZWE211201906-202303

45510GEAR ASSY, STEERING

main45510-02830supersedes 45510-02840iZWE219..G202304

main45510-02840iMZEA17;ZWE219..E,N202304

45535BOOT, STEERING RACK, NO.1

main45535-59105iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-0D070×2iNRE210..G,N;MZEA11,ZWE211..CVT201906-202303

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2iNRE210..E201906

45536BOOT, STEERING RACK, NO.2

main45535-59105iMZEA17,ZWE219202304

45537BNUT, RACK END LOCK

main90178-16001×2iMZEA17,ZWE219202304

(J)

main90178-C0015×2iMZEA17,ZWE219202304

(L)

9011914158

main90119-14158

90119C0536

main90119-C0536

90177C0023

main90177-C0023

9418801401

main94188-01401

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
