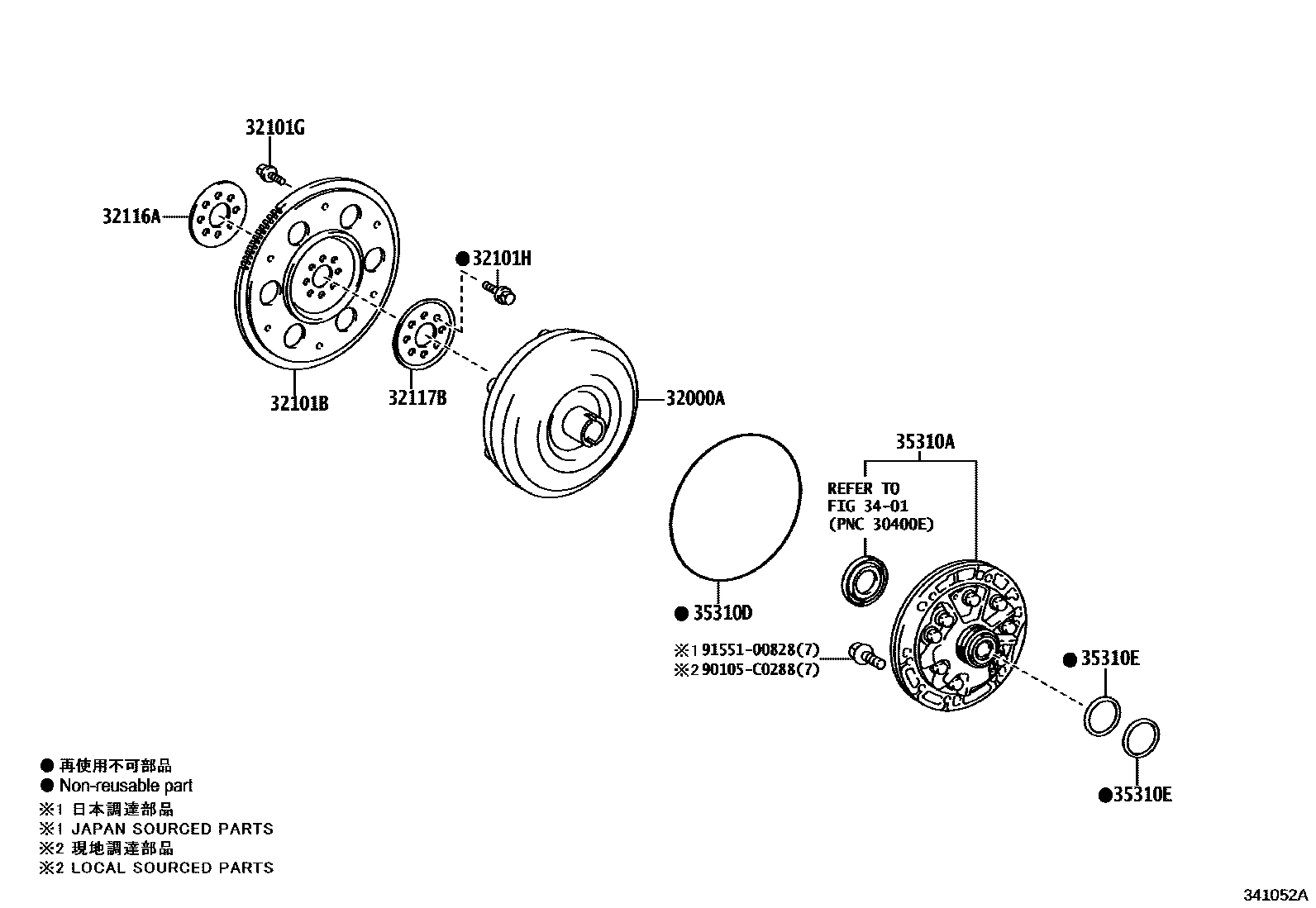

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

0001 1K313 0002 1K320,K321

32000ACONVERTER ASSY, TORQUE

main32000-02050iNRE210201906-202303

(L)

main32000-12530iNRE210..G,N201906-202503

(J)

main32000-12540iMZEA11202104-202212

TOYOTA:REFER 34-01

main32000-K0010iMZEA11202101-202303

AISIN AW:REFER 34-01

main32000-K0010iMZEA17202304

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-02070iMZEA17202101-202303

(L)

main32101-0D030iNRE210..E201906-202303

(L)

main32101-12100iNRE210202007-202303

(J)

main32101-52100iMZEA11202104-202303

main32101-52100iMZEA11202101-202303

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iMZEA17201906-202303

*8-1.25PX12-8.4,BLACK

main90109-08113iNRE210..G,N202104-202303

*8-1.25PX12-8.4,(J),BLACK

main90119-08498iNRE210..E201906-202303

*8-1.25PX12-8,SILVER WHITE

main90119-08498iNRE210..G,N202104-202303

*8-1.25PX12-8,(J),SILVER WHITE

main90119-C0217iNRE210..E202104-202303

*8-1.25PX12-7.1,(L),SILVER WHITE

main90119-C0299iNRE210..E202104-202303

*8-1.25PX12-7.1,(L),BLACK

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNRE210..E201906-202303

main90105-12404iMZEA11202104-202303

(J)

main90105-12404iMZEA11202101-202303

main90105-C0352iMZEA11202104-202303

(L)

32116ASPACER, DRIVE PLATE, FRONT

main32116-02020iNRE210..G,N201906-202303

(L)

main32116-12030iNRE210202007-202303

(J)

32117BSPACER, DRIVE PLATE, REAR

main32117-02020iNRE210..E201906-202303

(L)

main32117-0R010iMZEA11202101-202303

(L)

main32117-12040iNRE210202007-202303

(J)

main32117-33010iMZEA11202104-202303

main32117-33010iMZEA11202101-202303

(J)

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-02020iNRE210201906-202303

TMCAP:REFER 34-01

main35310-12170iNRE210..G,N201906-202303

TMH:FIG.34-01

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99202iNRE210..G,N201906-202303

TMH:FIG.34-01

main90301-C0067iNRE210201906-202303

TMCAP:REFER 34-01

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-02030iNRE210201906-202303

TMCAP:REFER 34-01

main35617-12031iNRE210..G,N201906-202303

TMH:FIG.34-01

90105C0288

main90105-C0288

9155100828

main91551-00828

12 parts on this diagram · 2 diagrams in section
