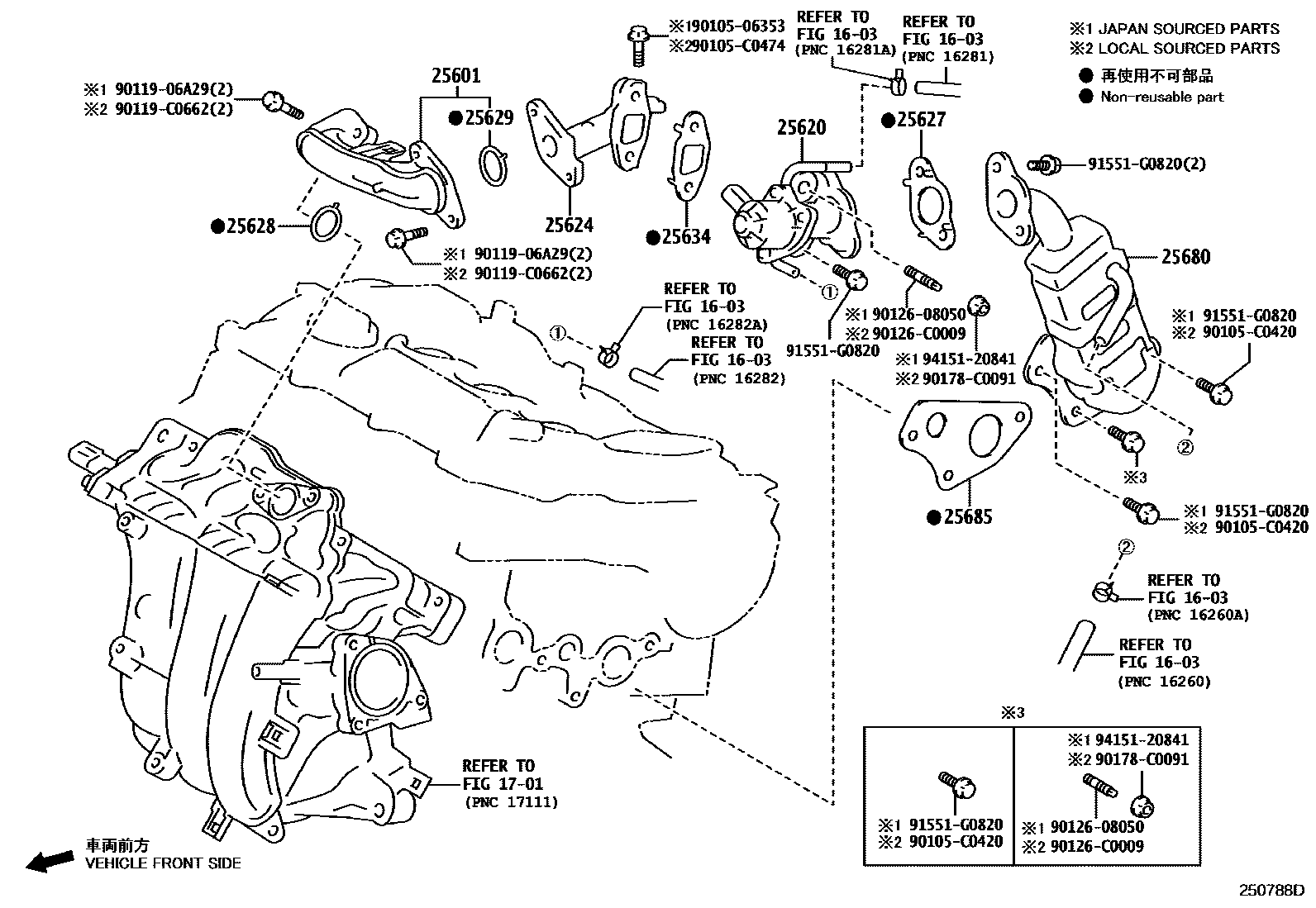

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15050iM15..MZEA11202101-202303

*616

main25601-F3040iM15..MZEA11202101-202303

*617

25620VALVE ASSY, EGR

main25620-0T010i8ZRFXE..ZWE219202304

main25620-15360iM15..MZEA11202101-202303

*616

main25620-37150i8ZRFXE..ZWE211201906-202303

main25620-F3030iM15..MZEA17202304

25624ADAPTER, EGR VALVE

main25624-15010iM15..MZEA11202101-202303

*616

main25624-F3030iM15..MZEA11202101-202303

*617

25627GASKET, EGR VALVE

main25627-15010iM15..MZEA11202101-202303

*616

main25627-37020i8ZRFXE..ZWE211201906-202303

main25627-F3040iM15..MZEA17202304

25628GASKET, EGR INLET

main25628-25010iM15..MZEA17202304

25629GASKET, EGR VALVE ADAPTER

main25628-25010iM15..MZEA11202101-202303

*617,*616

25634GASKET, EGR PIPE

main25634-15010iM15..MZEA11202101-202303

*616

main25634-37020i8ZRFXE..ZWE211201906-202303

main25634-F3040iM15..MZEA17202304

25680COOLER ASSY, EGR

main25680-15020iM15..MZEA11202101-202303

*616

main25680-F3030iM15..MZEA11202101-202303

*617

25685GASKET, EGR COOLER, NO.1

main25685-0T010i8ZRFXE..ZWE219202403

(L)

main25685-15010iM15..MZEA11202101-202303

*616

main25685-37020i8ZRFXE..ZWE219202403

(J)

main25685-F3020iM15..MZEA17202304

9010506353

main90105-06353

90105C0420

main90105-C0420

90105C0474

main90105-C0474

9011906A29

main90119-06A29

90119C0662

main90119-C0662

9012608050

main90126-08050

90126C0009

main90126-C0009

90178C0091

main90178-C0091

91551G0820

main91551-G0820

9415120841

main94151-20841

21 parts on this diagram · 2 diagrams in section
