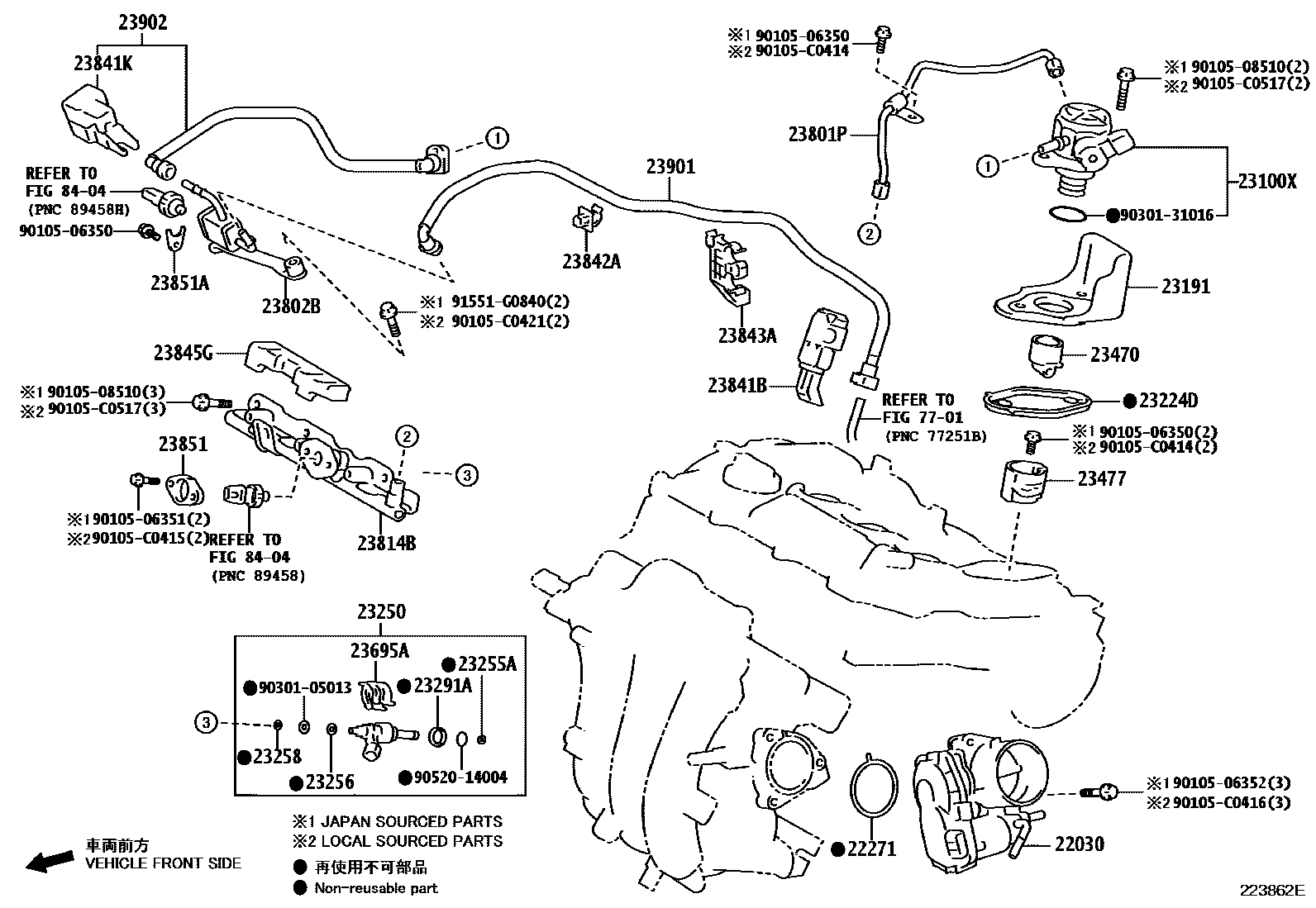

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y070i202007-202303

*497,*615

main22030-15010i202101-202303

*616

main22030-47080i202007-202303

*474

main22030-F3050i202101-202303

*617

22271GASKET, THROTTLE BODY

main22271-0T040i201906-202303

(L)

main22271-0Y050i201906-202007

main22271-15050i202304

main22271-37020i202304

(J)

main22271-47060i202007-202303

*474

23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)

main23101-0Y020i201906-202007

main23101-25040i202101-202303

*616

main23101-47020i202007-202303

*474

main23101-F2020i202304

23191FLANGE, FUEL PUMP

main23191-25050i202101-202303

(J),*617,*616

main23214-F2030i202304

(L)

23224DGASKET, FUEL PUMP SPACER

main23224-0Y010i201906-202007

main23224-25010i202101-202106

*616

main23224-25011i202304

main23224-47010i202007-202303

*474

23250INJECTOR ASSY, FUEL

main23209-09440×4i201906-202303

(L)

main23209-09460×4i202304-202305

(L),MARK=23250-0T140

main23209-0Y100-01×4i201906-202007

MARK 1,REFER REPAIR MANUAL

main23209-0Y100-02×4i202007-202303

MARK 2,*497,*615:REFER R/M

main23209-0Y100-03×4i201906-202007

MARK 3,REFER REPAIR MANUAL

main23209-0Y100-04×4i201906-202007

MARK 4,REFER REPAIR MANUAL

main23209-0Y100-05×4i201906-202007

MARK 5,REFER REPAIR MANUAL

main23209-0Y100-06×4i201906-202007

MARK 6,REFER REPAIR MANUAL

main23209-0Y100-07×4i202007

MARK 7,*497,*615:REFER R/M

main23209-0Y100-08×4i202007

MARK 8,*497,*615:REFER R/M

main23209-0Y100-09×4i201906-202007

MARK 9,REFER REPAIR MANUAL

main23209-24010-01×3i202101-202303

MARK 1,*616

main23209-24010-02×3i202101-202303

MARK 2,*616

main23209-24010-03×3i202101-202303

MARK 3,*616

main23209-24010-04×3i202101-202303

MARK 4,*616

main23209-24010-05×3i202101-202303

MARK 5,*616

main23209-24010-06×3i202101-202303

MARK 6,*616

main23209-24010-07×3i202101-202303

MARK 7,*616

main23209-24010-08×3i202101-202303

MARK 8,*616

main23209-24010-09×3i202101-202303

MARK 9,*616

main23209-39295×4i201906-202303

(J)

main23209-47100-01×4i202007-202303

MARK 1,*474:REFER R/M

main23209-47100-02×4i202007-202303

MARK 2,*474:REFER R/M

main23209-47100-03×4i202007-202303

MARK 3,*474:REFER R/M

main23209-47100-04×4i202007-202303

MARK 4,*474:REFER R/M

main23209-47100-05×4i202007-202303

MARK 5,*474:REFER R/M

main23209-47100-06×4i202007-202303

MARK 6,*474:REFER R/M

main23209-47100-07×4i202007-202303

MARK 7,*474:REFER R/M

main23209-47100-08×4i202007-202303

MARK 8,*474:REFER R/M

main23209-47100-09×4i202007-202303

MARK 9,*474:REFER R/M

main23209-F2030-01×3i202101-202303

MARK 1,*617

main23209-F2030-02×3i202101-202303

MARK 2,*617

main23209-F2030-03×3i202101-202303

MARK 3,*617

main23209-F2030-04×3i202304

MARK 4

main23209-F2030-05×3i202101-202303

MARK 5,*617

main23209-F2030-06×3i202101-202303

MARK 6,*617

main23209-F2030-07×3i202101-202303

MARK 7,*617

main23209-F2030-08×3i202101-202303

MARK 8,*617

main23209-F2030-09×3i202304

MARK 9

23255ASEAL, FUEL INJECTOR

main23255-25010×3i202101-202303

*617,*616

main23255-31030×4i202007-202303

*474; *497,*615

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×4i201906-202007

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-31030×3i202304

main23258-36010×4i202007-202303

*474

main23258-47010×3i202101-202303

*616

main23258-47040×4i202007

*497,*615

23291INSULATOR, INJECTOR VIBRATION

main23291-0P020×4i201906-202303

main23291-15010×4i202304-202305

main23291-23010×4i202305-202311

(J)

main23291-31020×4i202007

*497,*615

23291AINSULATOR, INJECTOR VIBRATION

main23291-31020×3i202304

23470LIFTER ASSY, FUEL PUMP

main23470-0Y010i202101-202303

*617

main23470-25010i202101-202303

*616

main23470-36020i202007-202303

*474

23477GUIDE, FUEL PUMP LIFTER

main23477-0Y010i202007

*497,*615

main23477-25010i202101-202303

*616

main23477-47010i202007-202303

*474

main23477-F2050i202101-202303

*617

23695ACLAMP, NOZZLE HOLDER

main23695-24010×3i202101-202303

*617,*616

main23695-70010×16i201906-202007

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-0Y010i201906-202007

main23801-15070i202101-202303

*616

main23801-47030i202007-202303

*474

main23801-F3010i202304

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-15010i202101-202303

*616

main23802-F3010i202101-202303

*617

23814BPIPE, FUEL DELIVERY

main23800-0Y020i201906-202007

main23800-47030i202007

(J),*497,*615

main23814-15070i202101-202207

*617,*616

main23814-15071i202304

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-0T120i202304

(J)

main23841-24040i202101-202303

(J)

main23841-37081i201906-202303

main23841-47050i201906

main23841-F3050i202101-202303

(L)

23841KCLAMP, FUEL PIPE

main23841-15020i202101-202303

*616

main23841-F3020i202101-202303

*617

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-0T090i202304

(L)

main23841-37131i202304

(J)

main23841-47050i202101-202303

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-F3030i202101-202303

23845GINSULATOR, FUEL DELIVERY

main23845-15010i202101-202303

*616

main23845-F3010i202304

23851HOLDER, FUEL PRESSURE SENSOR, NO.1

main23851-25020i202101-202303

*616

main23851-F2020i202304

23851AHOLDER, FUEL PRESSURE SENSOR, NO.2

main23851-25030i202101-202303

*616

main23851-F2030i202101-202303

*617

23901TUBE SUB-ASSY, FUEL

main23901-0T360i202304

main23901-0T420i201906-202303

main23901-0Y290i201906-202303

main23901-F3010i202304

23902TUBE SUB-ASSY, FUEL

main23901-15040i202101-202303

*616

main23901-F3050i202101-202303

*617

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

9010506350

main90105-06350

9010506351

main90105-06351

9010506352

main90105-06352

9010508510

main90105-08510

90105C0414

main90105-C0414

90105C0415

main90105-C0415

90105C0416

main90105-C0416

90105C0421

main90105-C0421

90105C0517

main90105-C0517

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

91551G0840

main91551-G0840
