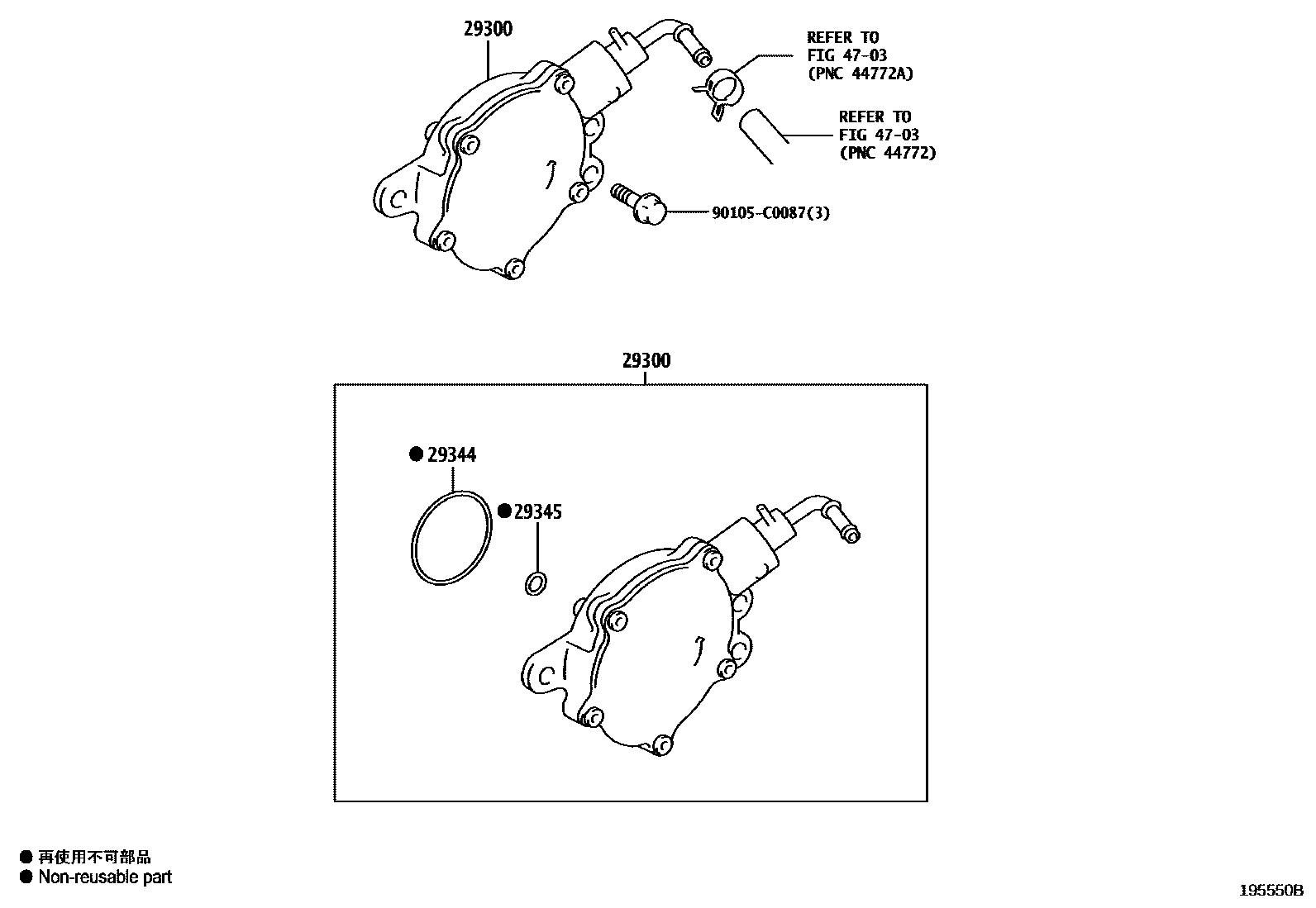

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-0Y020i9NRFTS..NRE210..E202007

MAGNA

main29300-24011iM15..MZEA11202101-202303

TAIHO

main29300-47050i9NRFTS..NRE210202007-202303

TAIHO

main29300-F2041iM15..MZEA17202304

BOSCH

29344RING, O VACUUM PUMP, NO.2

main29344-0P010i9NRFTS..NRE210..E201906

MAGNA

main29344-22011i9NRFTS..NRE210202007-202303

TAIHO

29345RING, O VACUUM PUMP, NO.3

main29345-0P010i9NRFTS..NRE210..G,N201906-202303

MAGNA

main29345-22011i9NRFTS..NRE210202007-202303

TAIHO

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

90105C0087

main90105-C0087

5 parts on this diagram · 3 diagrams in section
