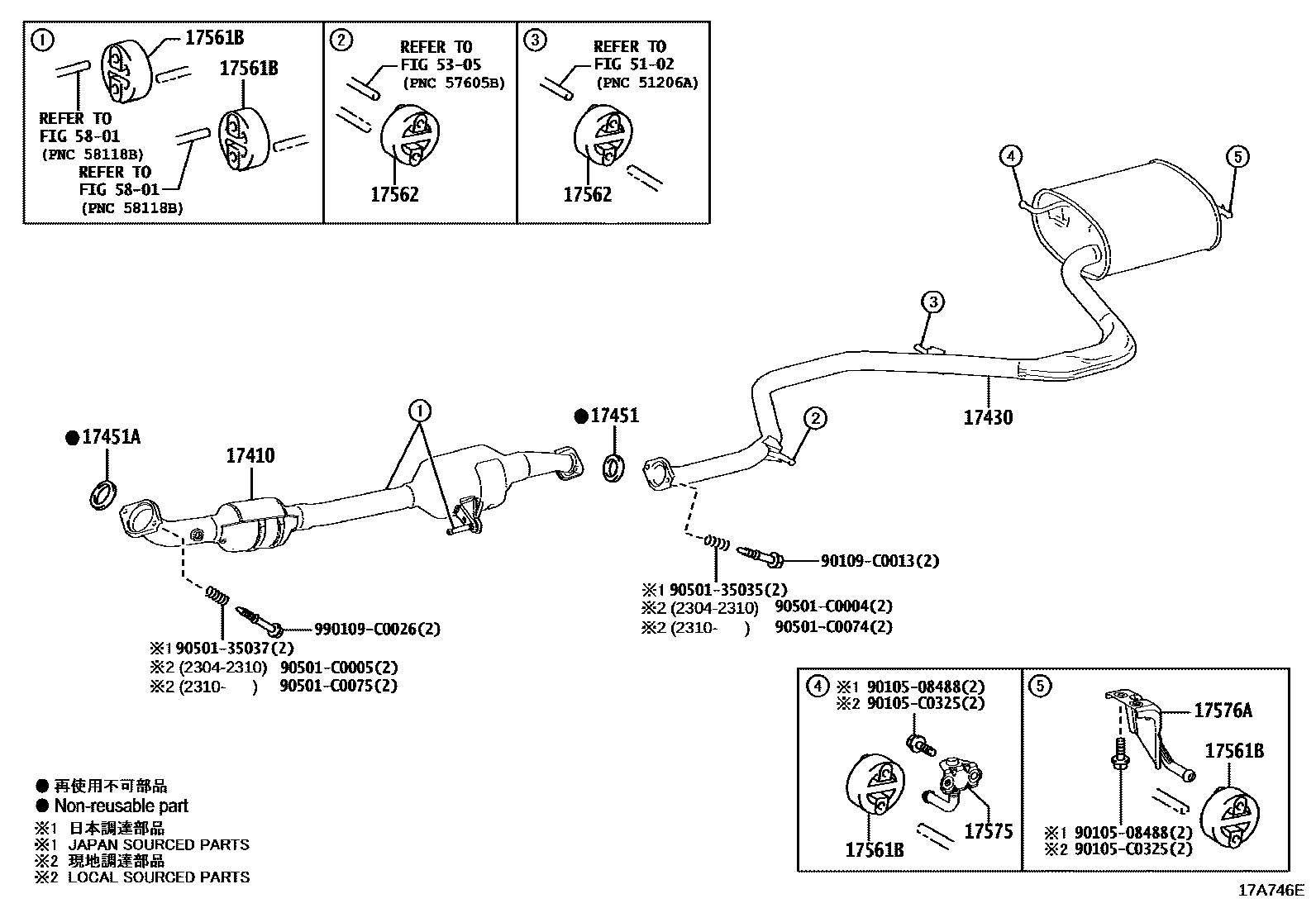

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0TA70i8ZRFXE..ZWE211201906-202109

main17410-0TA71i8ZRFXE..ZWE211202110-202303

main17410-0TK20i8ZRFXE..ZWE219202304

main17410-0YA20i9NRFTS..NRE210..E201906-202512

main17410-F3010iM15..MZEA11202101-202303

*114=TOYOTA/F3010/Y

main17410-F3060iM15..MZEA17202304

17430PIPE ASSY, EXHAUST, TAIL

main17430-0T640i8ZRFXE..ZWE219202304

main17430-0Y450i9NRFTS..NRE210..G,N201906-202303

main17430-F3010iM15..MZEA11202101-202303

main17430-F3110iM15..MZEA17202304

17451GASKET, EXHAUST PIPE

main17451-0T031i8ZRFXE..ZWE211;9NRFTS..NRE210..G,N201906-202303

main17451-0T080iM15..MZEA11202101-202303

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T010i8ZRFXE..ZWE211;9NRFTS..NRE210..G,N201906-202303

main17451-0T050i8ZRFXE..ZWE219202304

main17451-F3010iM15..MZEA11202101-202303

17561BSUPPORT, EXHAUST PIPE, NO.1

main17565-0H080×4i9NRFTS..NRE210..G,N;M15,8ZRFXE..MZEA11,ZWE211..CVT201906-202303

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-0H090×2i9NRFTS..NRE210..E201906

17575BRACKET, EXHAUST PIPE SUPPORT, NO.5

main17575-0T150i9NRFTS..NRE210..G,N;M15,8ZRFXE..MZEA11,ZWE211..CVT201906-202303

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-0T100i9NRFTS..NRE210..G,N;M15,8ZRFXE..MZEA11,ZWE211..CVT201906-202303

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010508488

main90105-08488

90105C0325

main90105-C0325

90109C0013

main90109-C0013

9050135035

main90501-35035

9050135037

main90501-35037

90501C0004

main90501-C0004

90501C0005

main90501-C0005

90501C0074

main90501-C0074

90501C0075

main90501-C0075

20 parts on this diagram · 4 diagrams in section
