OIL FILTER

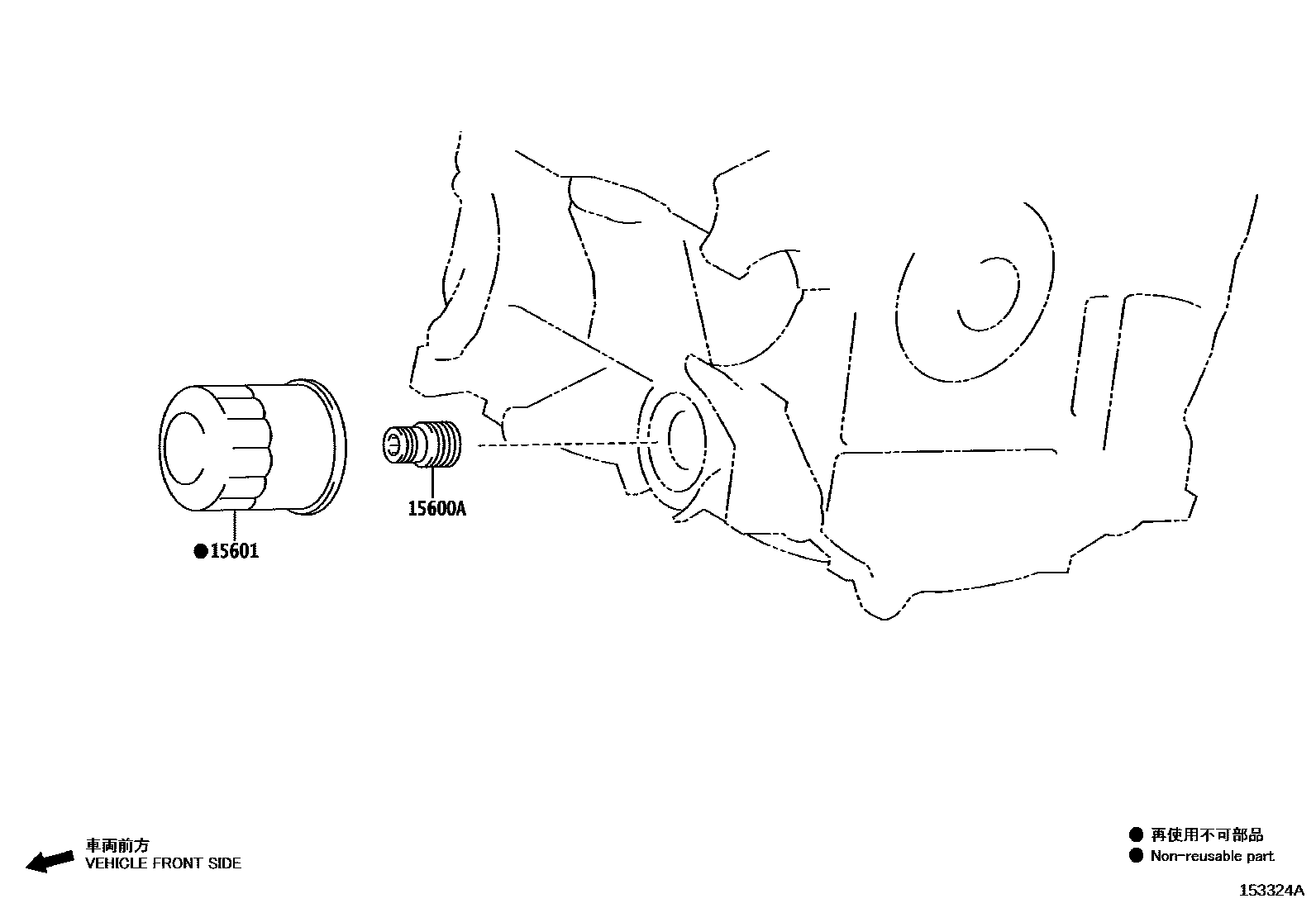

Parts diagram

15600AUNION(FOR OIL FILTER)

main90404-19011i202007-202303

*474

main90404-19011i202007-202303

*497,*615

main90404-19011i201906-202007

main90904-04006i202101-202303

*617,*616

main90904-04006i201906-202303

15601FILTER SUB-ASSY, OIL

main90915-10003i202007-202303

*474

main90915-10009i202101-202303

*616

main90915-10009i202304

(J)

main90915-CA003i201906-202303

main90915-CA003i202007-202302

*497,*615

main90915-CA004i202304

(L)

main90915-CA004i202101-202303

*617

main90915-CA004i202303

*497,*615

2 parts on this diagram · 3 diagrams in section
