ENGINE OVERHAUL GASKET KIT

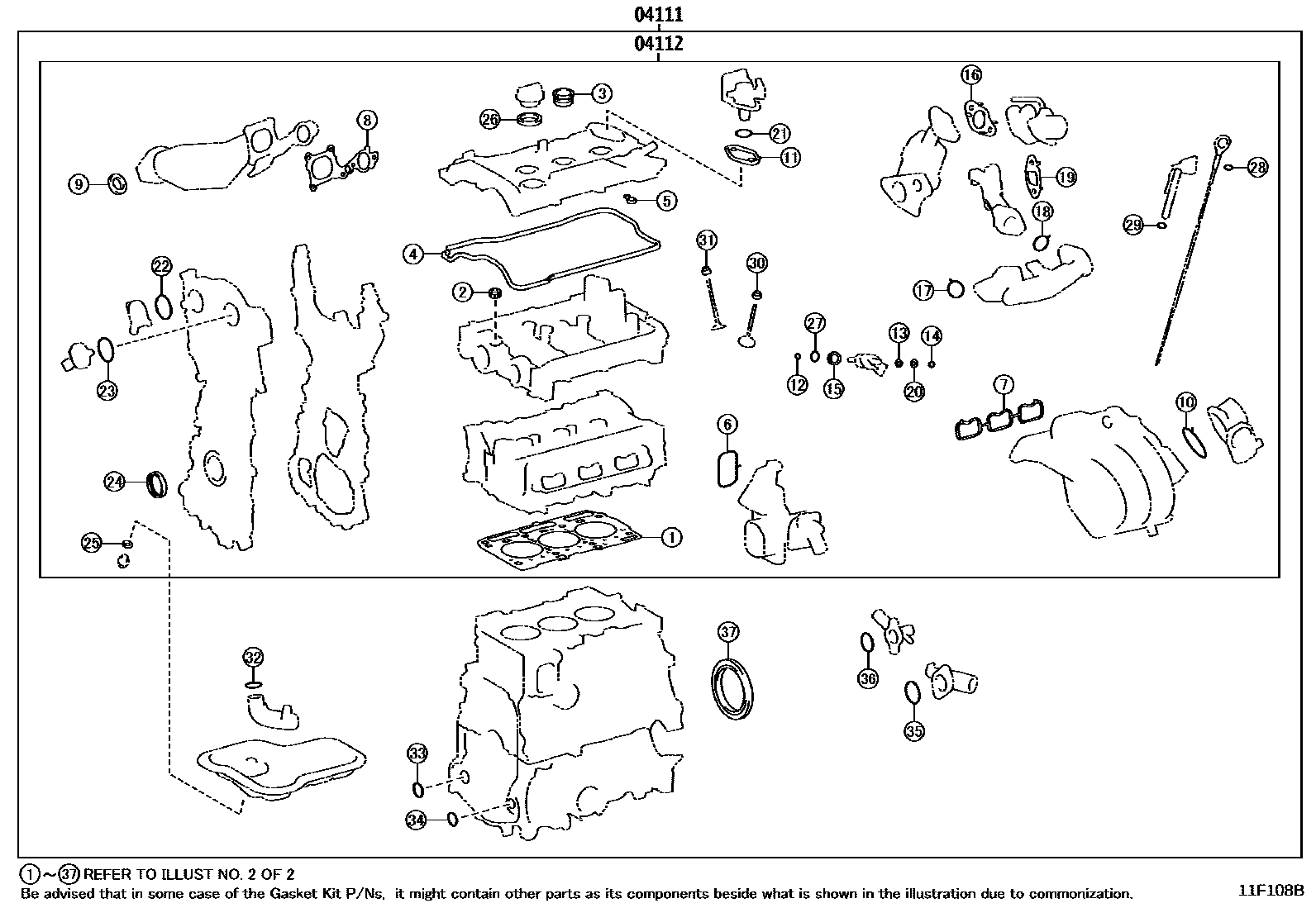

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T310i201906-202303

main04111-0T320i202304-202311

main04111-0T330i202311

main04111-0Y120i201906-202007

main04111-47272i202007-202303

*474

main04111-F3040i202101-202110

main04111-F3041i202304

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T260i201906-202303

main04112-0T270i202304-202311

main04112-0T280i202311

main04112-0Y120i201906

*497,*615

main04112-47182i202007-202303

*474

main04112-F3040i202101-202110

main04112-F3041i202110-202303

2 parts on this diagram · 6 diagrams in section
