SHORT BLOCK ASSEMBLY

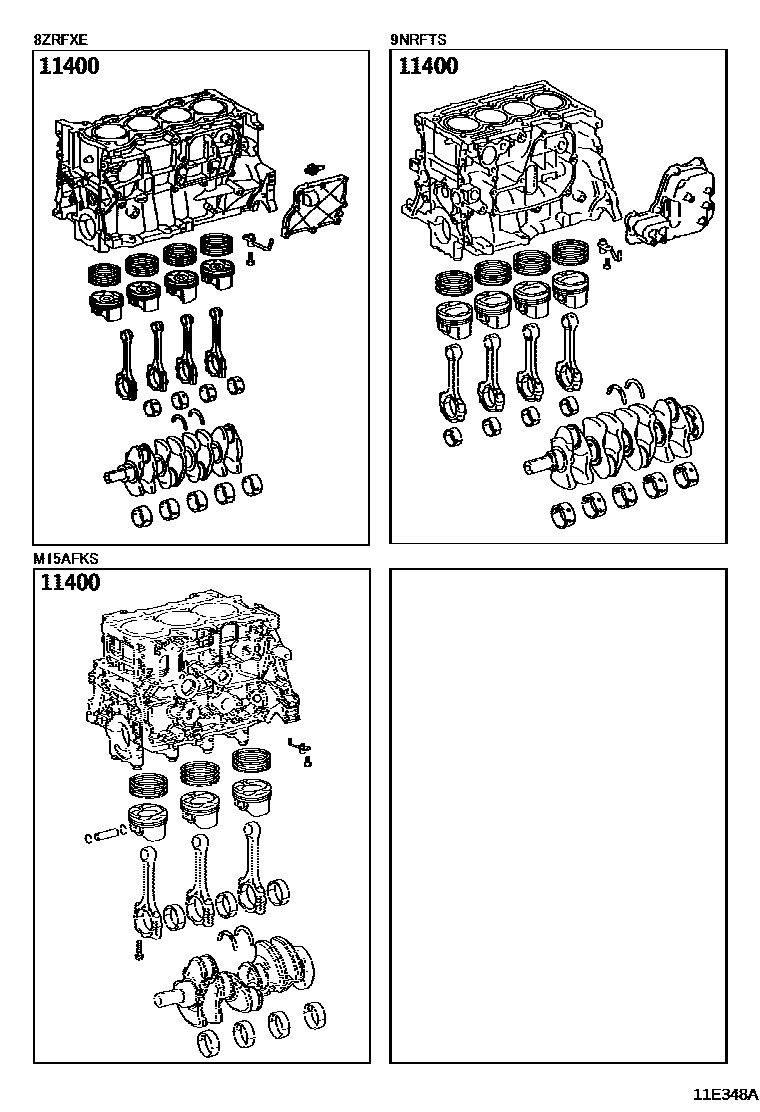

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0T520i201906-202303

main11400-0T580i202304

main11400-0Y260i201906-202303

*684

main11400-15110i202101-202303

*616

main11400-47230i202007-202303

*474

main11400-F3040i202304

1 parts on this diagram · 1 diagram in section
