HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55900CONTROL ASSY, AIR CONDITIONER
main55900-02682-C0supersedes 55900-02672-C0iNRE181,ZRE182..CVT..(E,G); NRE181,ZRE182..E,G,N; ZRE182..G201612-201706
BLACK,TRIM0#,2#; COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC,BLACK,TRIM0#,2#; COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM0#,2#; LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC,BLACK,TRIM0#,2#; LEATHER SEAT&WITH(AUTO AIR CONDITIONER),BLACK,TRIM0#,2#
BLACK,TRIM0#,2#; COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC,BLACK,TRIM0#,2#; COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM0#,2#; LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC,BLACK,TRIM0#,2#; LEATHER SEAT&WITH(AUTO AIR CONDITIONER),BLACK,TRIM0#,2#
55901DCONTROL SUB-ASSY, HEATER, NO.1
55902ECONTROL SUB-ASSY, HEATER, NO.2
main55902-02261iNRE181,ZRE18#..E,G,N; ZRE181..E;NRE181,ZRE182..CVT..(E,G); ZRE181..E;ZRE182..CVT..G201408-201706
COMBI SEAT(DRIVER POWER SEAT); COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC; LEATHER SEAT&WITH(AUTO AIR CONDITIONER); LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
55903ACONTROL SUB-ASSY, HEATER, NO.3
main55903-02370supersedes 55903-02351iNRE181,ZRE182..CVT..(E,G); NRE181,ZRE182..E,G,N; ZRE182..G201612-201706
COMBI SEAT(DRIVER POWER SEAT); COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC; LEATHER SEAT&WITH(AUTO AIR CONDITIONER); LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
COMBI SEAT(DRIVER POWER SEAT); COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC; LEATHER SEAT&WITH(AUTO AIR CONDITIONER); LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-0K010iNRE181,ZRE18#..E,G,N; ZRE181..E;NRE181,ZRE182..CVT..(E,G); ZRE181..E;ZRE182..CVT..G201408-201706
COMBI SEAT(DRIVER POWER SEAT); COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC; LEATHER SEAT&WITH(AUTO AIR CONDITIONER); LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC
55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-0K010iNRE181,ZRE18#..E,G,N; ZRE181..E;NRE181,ZRE182..CVT..(E,G); ZRE181..E;ZRE182..CVT..G201408-201706
COMBI SEAT(DRIVER POWER SEAT); COMBI SEAT(DRIVER POWER SEAT)&COLD AREA SPEC; LEATHER SEAT&WITH(AUTO AIR CONDITIONER); LEATHER SEAT&WITH(AUTO AIR CONDITIONER)&COLD AREA SPEC

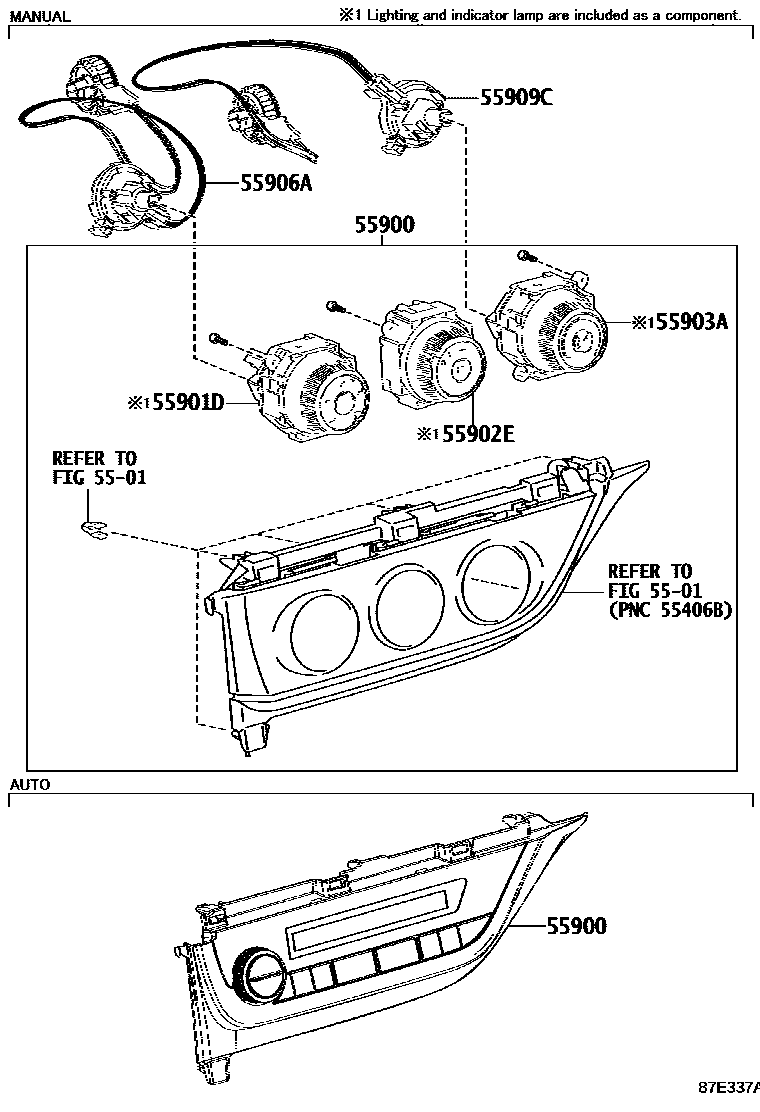

7 parts on this diagram · 4 diagrams in section
