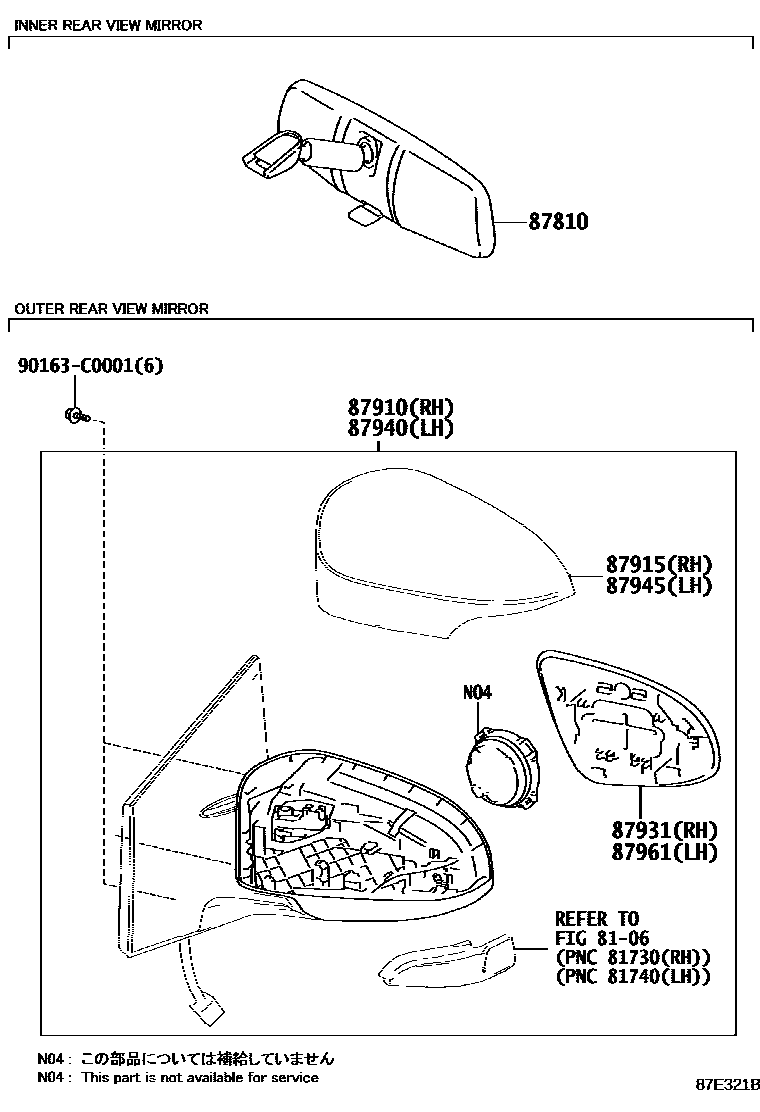

MIRROR

8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

→ Go to FIG 81-06

87810MIRROR ASSY, INNER REAR VIEW

main87810-0D070iNRE181,ZRE18#,ZWE182201408-201706

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-02E50-A0iNRE181,ZRE182,ZWE182201706

WHITE PEARL CS.,070

main87910-02E50-B0iNRE181,ZRE182,ZWE182201706

SILVER ME.,1D4

main87910-02E50-B1iZRE18#,ZWE182201408-201612

GRAY ME.,1G3

main87910-02E50-C0iNRE181,ZRE182,ZWE182201706

ATTITUDE BLACK MC.,218

main87910-02E50-D0iNRE181,ZRE18#,ZWE182201408-201706

RED M.M.,3R3

main87910-02E50-E0iNRE181,ZRE182,ZWE182201706

ORANGE ME.,4R8

main87910-02E50-E1iNRE181,ZRE182,ZWE182201706

DK. BROWN M.M.,4U3

main87910-02E50-J0iNRE181,ZRE18#,ZWE182201408-201706

BLUE ME.,8T7

main87910-02E50-J1iNRE181,ZRE182,ZWE182201706

BLUE ME.,8X7

main87910-02E50-K0iZWE182201512-201706

DEEP AMETHYST M.M.,9AH

87915COVER, OUTER MIRROR, RH

main87915-02931iZRE181;ZRE182..6F201408-201611

PAINT REQ.

87931OUTER MIRROR, RH

main87931-02E50iNRE181,ZRE182,ZWE182201706

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-02K00-A0iNRE181,ZRE182,ZWE182201706

WHITE PEARL CS.,070

main87940-02K00-B0iNRE181,ZRE182,ZWE182201706

SILVER ME.,1D4

main87940-02K00-B1iZRE18#,ZWE182201408-201612

GRAY ME.,1G3

main87940-02K00-C0iNRE181,ZRE182,ZWE182201706

ATTITUDE BLACK MC.,218

main87940-02K00-D0iNRE181,ZRE18#,ZWE182201408-201706

RED M.M.,3R3

main87940-02K00-E0iNRE181,ZRE182,ZWE182201706

ORANGE ME.,4R8

main87940-02K00-E1iNRE181,ZRE182,ZWE182201706

DK. BROWN M.M.,4U3

main87940-02K00-J0iNRE181,ZRE18#,ZWE182201408-201706

BLUE ME.,8T7

main87940-02K00-J1iNRE181,ZRE182,ZWE182201706

BLUE ME.,8X7

main87940-02K00-K0iZWE182201512-201706

DEEP AMETHYST M.M.,9AH

87945COVER, OUTER MIRROR, LH

main87945-02931iZRE181;ZRE182..6F201408-201611

PAINT REQ.

87961MIRROR OUTER, LH

main87961-02K00iZRE181;ZRE182..6F201408-201611

90163C0001

main90163-C0001

9 parts on this diagram · 1 diagram in section
