HORN

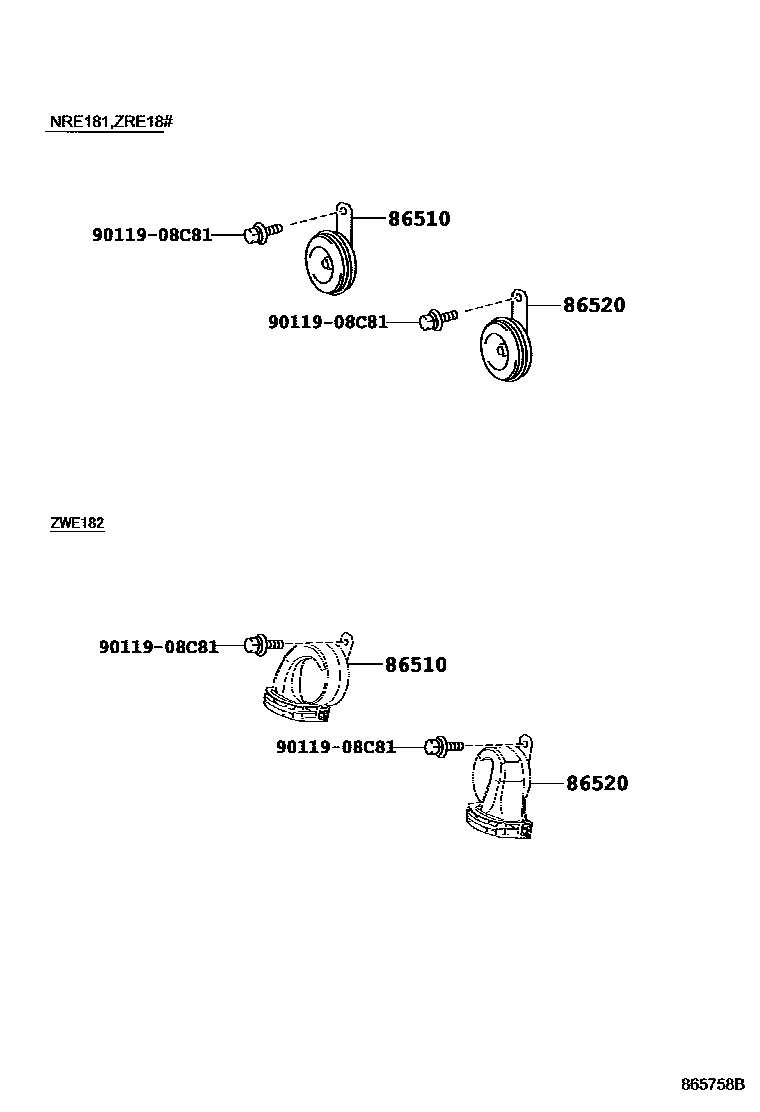

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-02170i201706

main86510-0R040i201408-201505

main86510-0R041i201506-201611

main86510-12660i201512-201706

86520HORN ASSY, LOW PITCHED

main86520-02291i201706

main86520-0R040i201408-201505

main86520-0R041i201506-201706

main86520-12750i201512-201706

9011908C81

main90119-08C81

3 parts on this diagram · 1 diagram in section
