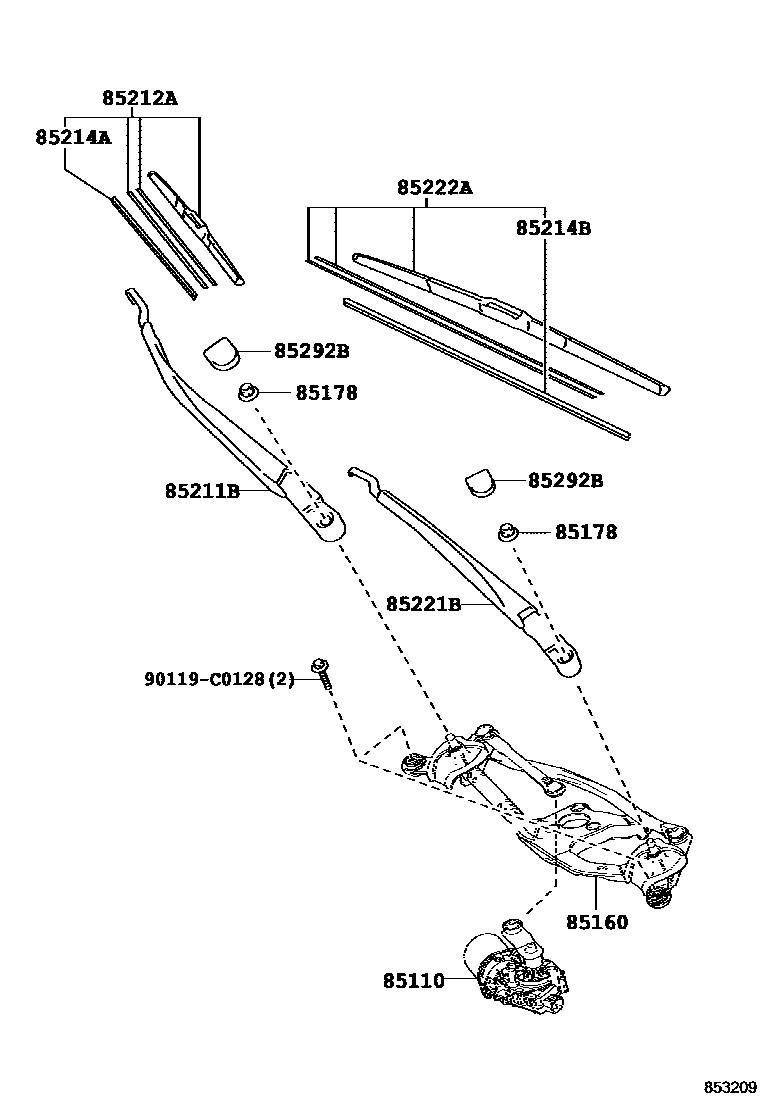

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02460iZRE181;ZRE182..6F201408-201611

main85110-02461iNRE181,ZRE182,ZWE182201809

85160LINK ASSY, WINDSHIELD WIPER

main85150-02410iZRE181;ZRE182..6F201408-201611

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012×2iZRE181;ZRE182..6F201408-201611

85211BARM, FRONT WIPER, RH

main85211-02420iZRE181;ZRE182..6F201408-201611

85212ABLADE, FR WIPER, RH

main85212-02320iZRE181;ZRE182..6F201408-201611

85214ARUBBER, WIPER, RH

main85214-02260iZRE181;ZRE182..6F201408-201611

85214BRUBBER, WIPER, LH

main85214-02340iZRE181;ZRE182..6F201408-201611

85221BARM, FRONT WIPER, LH

main85221-02440iZRE181;ZRE182..6F201408-201611

85222ABLADE, FR WIPER, LH

main85222-02330iZRE181;ZRE182..6F201408-201611

main85222-02460iNRE181,ZRE182,ZWE182201810

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D110×2iZRE181;ZRE182..6F201408-201611

90119C0128

main90119-C0128

11 parts on this diagram · 1 diagram in section
