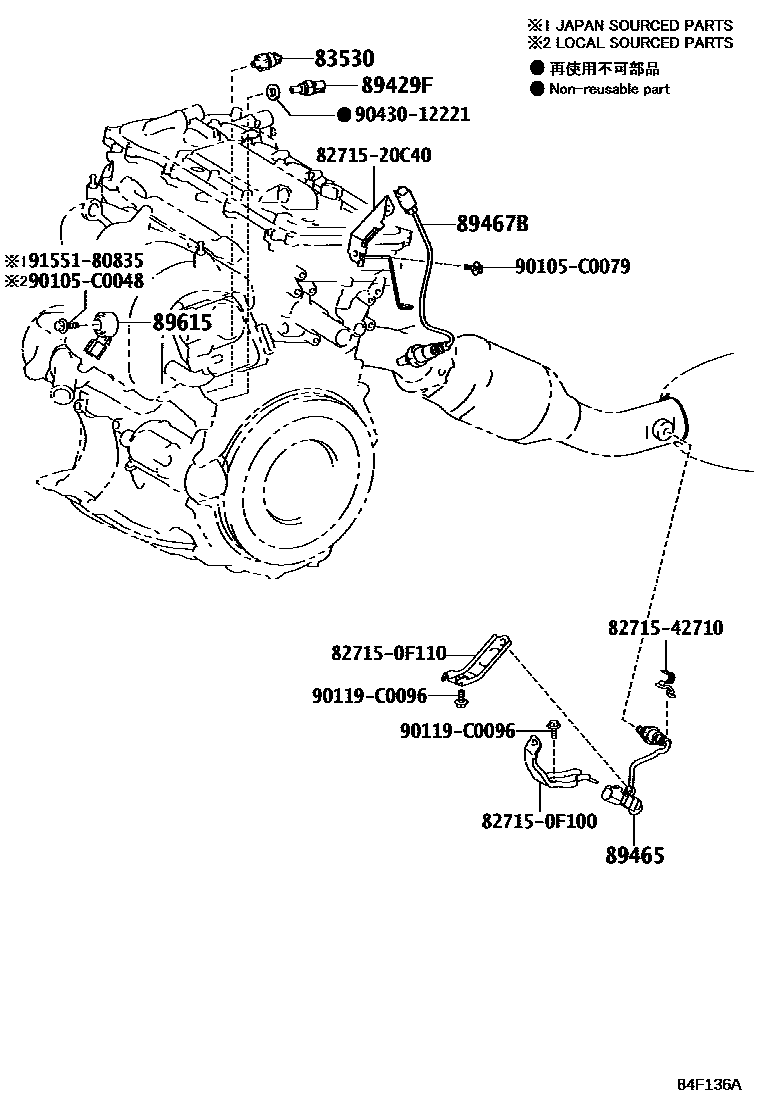

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZRE182,ZWE182201902

main83530-28020iZRE182,ZWE182201408-201902

DENSO

main83530-60020iZRE182,ZWE182..CVT201408-201902

YAZAKI

89429FSENSOR, TEMPERATURE

main89429-02010iNRE181201612-201706

main89429-12010iZRE181;ZRE182..6F201408-201706

89465SENSOR, OXYGEN

main89465-02300iZRE182201408-201706

main89465-02410iNRE181201612-201706

main89465-0Q010iZWE182201512-201706

89467BSENSOR, AIR FUEL RATIO

main89467-02120iNRE181201612-201706

main89467-0R070iZRE182,ZWE182201512-201706

main89467-0R070iZRE182201408-201706

(L)

main89467-52060iZRE181201408-201505

main89467-52060iZRE182201408-201612

(J)

89615SENSOR, KNOCK CONTROL

main89615-02040iNRE181201612-201706

main89615-20090iZRE181;ZRE182..6F201408-201706

827150F100BRACKET,WIRING HARNESS CLAMP

main82715-0F100

827150F110BRACKET,WIRING HARNESS CLAMP

main82715-0F110

8271520C40BRACKET,WIRING HARNESS CLAMP

main82715-20C40

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

90105C0048

main90105-C0048

90105C0079

main90105-C0079

90119C0096

main90119-C0096

9043012221

main90430-12221

9155180835

main91551-80835

14 parts on this diagram · 18 diagrams in section
