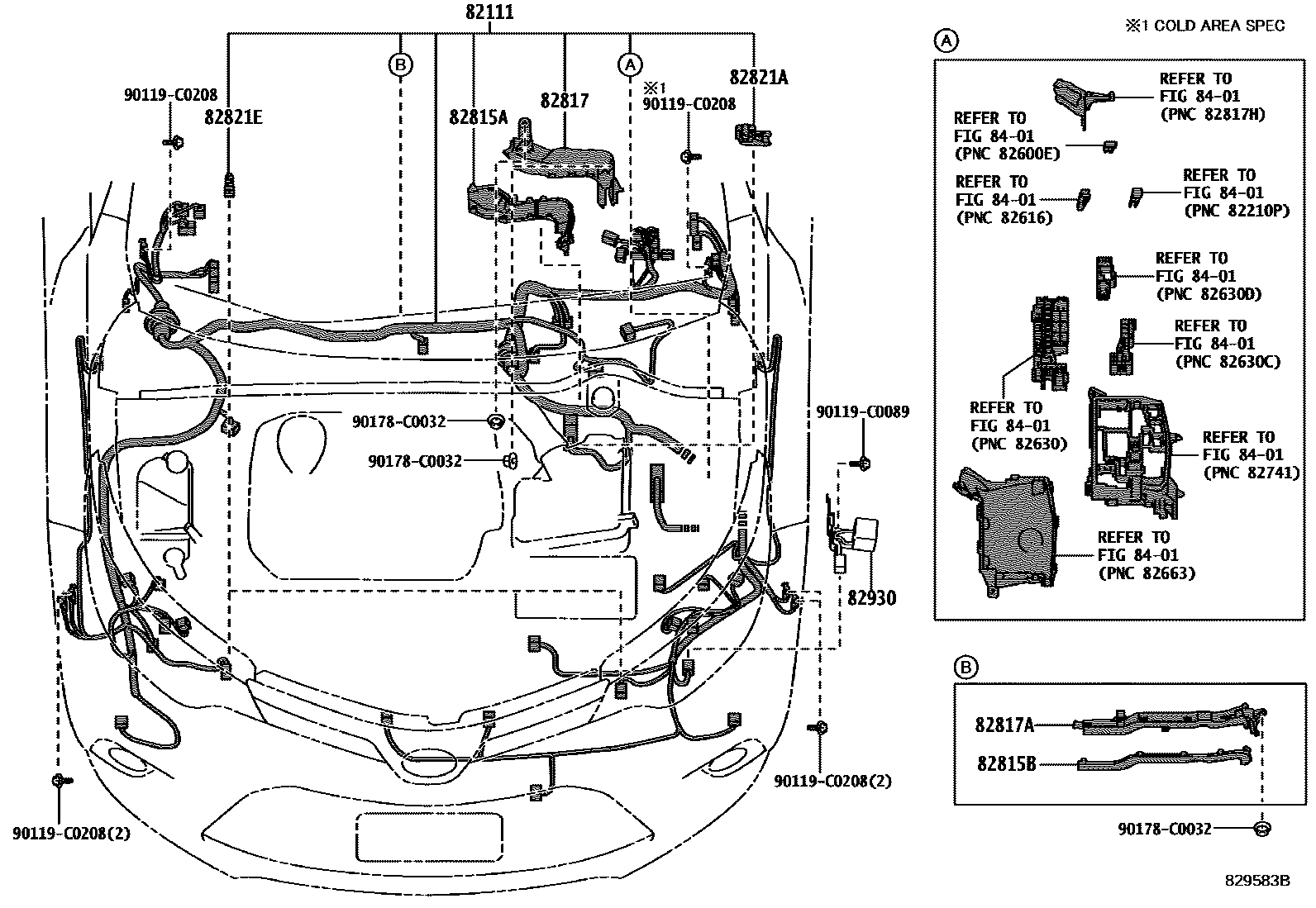

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 1/2 0003 1ENGINE ROOM 2/2 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1SEAT 0011 1FLOOR & ROOF 0012 1HIGH-TENSION CABLE 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CONNECTOR 1/3 0016 1CONNECTOR 2/3 0017 1CONNECTOR 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-F2530supersedes 82111-F2E50iZRE182..G; ZRE182..V201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL

main82111-F2E40iNRE181..6F..E201706-201810

main82111-F2E41iNRE181..6F..E201810

main82115-0ZZ90iNRE181..6F..N201706-201810

main82115-0ZZ91iNRE181..6F..N201810

main82116-0Z010iNRE181..CVT..N201706

main82116-0Z160iZWE182201512-201706

main82116-0Z161iZWE182201706

main82116-0ZS10iNRE181..6F201612-201706

main82116-0ZS20iNRE181..CVT201612-201706

main82116-0ZS30iZRE182201612-201706

main82115-0ZZ30supersedes 82115-0ZZ20iZRE181..5F201408-201611

COLD AREA SPEC

main82115-0ZZ50supersedes 82115-0ZZ40iZRE182..6F201408-201611

COLD AREA SPEC

main82115-0ZZ60supersedes 82115-0ZZ10iZRE181..CVT201408-201611

COLD AREA SPEC

main82115-0ZZ80supersedes 82115-0ZZ70iZRE182..CVT201408-201612

COLD AREA SPEC

main82116-0Z020supersedes 82111-F2E30iNRE181..CVT..E201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-02520iZRE181;ZRE182..6F201408-201611

main82815-47390iZWE182201512-201706

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-02530iZRE181;ZRE182..6F201408-201611

main82815-47560iZWE182201512-201706

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-02F90iZRE181;ZRE182..6F201408-201611

main82817-47620iZWE182201512-201706

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-02G00iNRE181;ZRE182..CVT201408-201706

main82817-47800iZWE182201512-201706

82821ACOVER, CONNECTOR

main82821-02080iZRE181;ZRE182..6F201408-201611

82821ECOVER, CONNECTOR

main82821-42040×2iZRE181;ZRE182..6F201408-201611

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-12010iNRE181,ZRE182201612-201706

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0089

main90119-C0089

90119C0208

main90119-C0208

90178C0032

main90178-C0032

12 parts on this diagram · 17 diagrams in section
