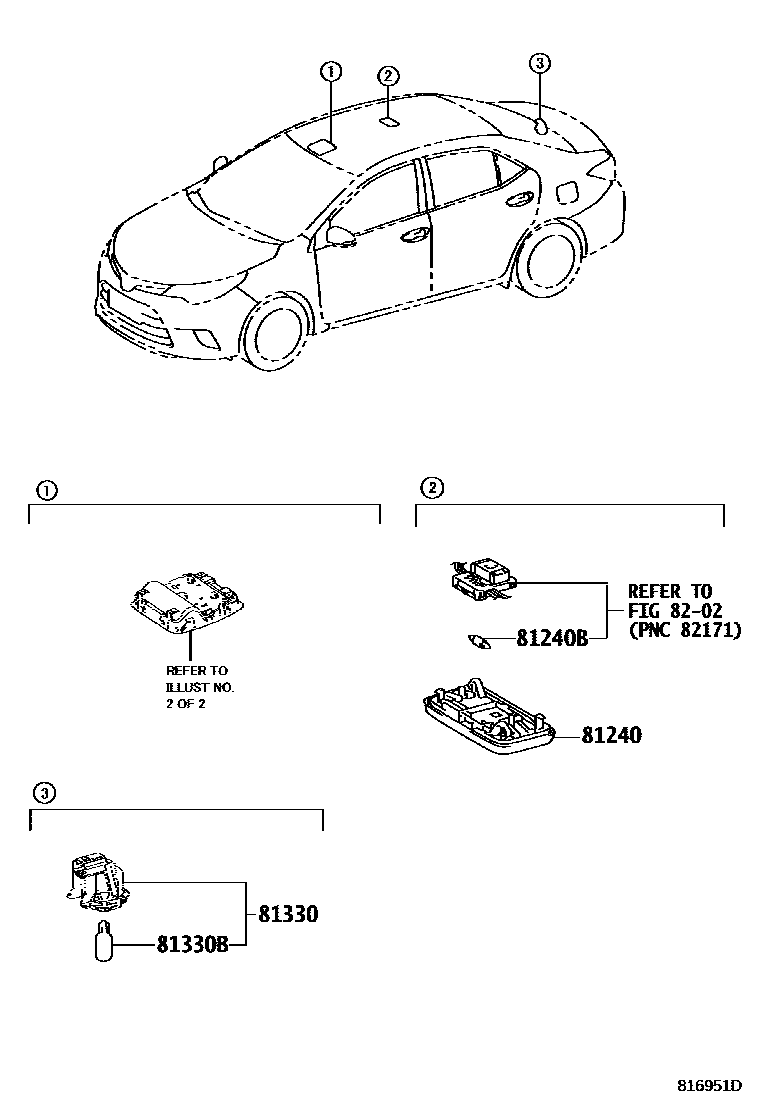

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-60060-A5iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main81240-60060-A6iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main81240-60060-B0iNRE181,ZRE18#,ZWE182201408-201706

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNRE181,ZRE18#,ZWE182201408-201706

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0D010iNRE181,ZRE182,ZWE182201706-201809

main81330-0D040iNRE181,ZRE182,ZWE182201810

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iZRE181;ZRE182..6F201408-201611

12V 3.8W

8202WIRING & CLAMP

→ Go to FIG 82-02

5 parts on this diagram · 2 diagrams in section
