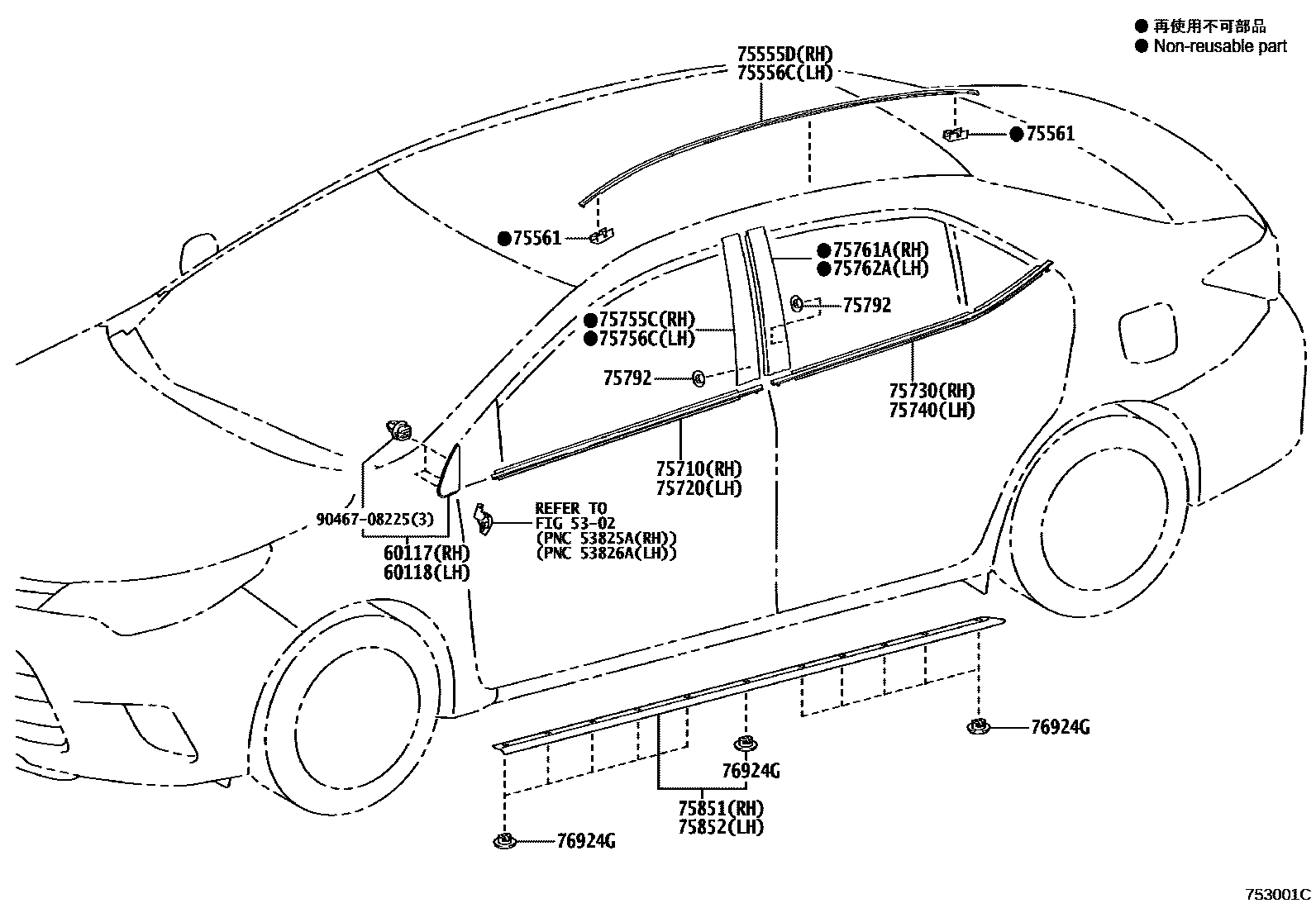

SIDE MOULDING

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02180iNRE181,ZRE182,ZWE182201706

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02180iNRE181,ZRE18#,ZWE182201408-201706

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-02280iZRE182..CVT;NRE181,ZWE182201408-201706

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-02270iZRE181;ZRE182..6F201408-201611

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030×4iZRE182..CVT;NRE181,ZWE182201408-201706

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-02440iZRE181;ZRE182..6F201408-201611

main75710-02450iZRE182,ZWE182..V201408-201706

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-02440iZRE181;ZRE182..6F201408-201611

main75720-02450iZRE182,ZWE182..V201706

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-02420iNRE181,ZRE182,ZWE182..E,G,N201706

main75730-02430iZRE182,ZWE182..V201408-201706

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-02420iNRE181,ZRE182,ZWE182..E,G,N201706

main75740-02430iZRE182,ZWE182..V201706

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-02100iNRE181,ZRE18#,ZWE182201408-201706

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-02090iNRE181,ZRE18#,ZWE182201408-201706

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-02100iNRE181,ZRE18#,ZWE182201408-201706

NO PAINT REQ.

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-02100iNRE181,ZRE18#,ZWE182201408-201706

NO PAINT REQ.

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D030×4iZRE181;ZRE182..6F201408-201611

75851MOULDING, ROCKER PANEL, RH

main75851-02220iZRE181;ZRE182..6F201408-201611

75852MOULDING, ROCKER PANEL, LH

main75852-02220iZRE181;ZRE182..6F201408-201611

76924GRETAINER, ROCKER PANEL MOULDING

main76924-52021×22iZRE181;ZRE182..6F201408-201611

9046708225

main90467-08225

19 parts on this diagram · 1 diagram in section
