ARMREST & VISOR

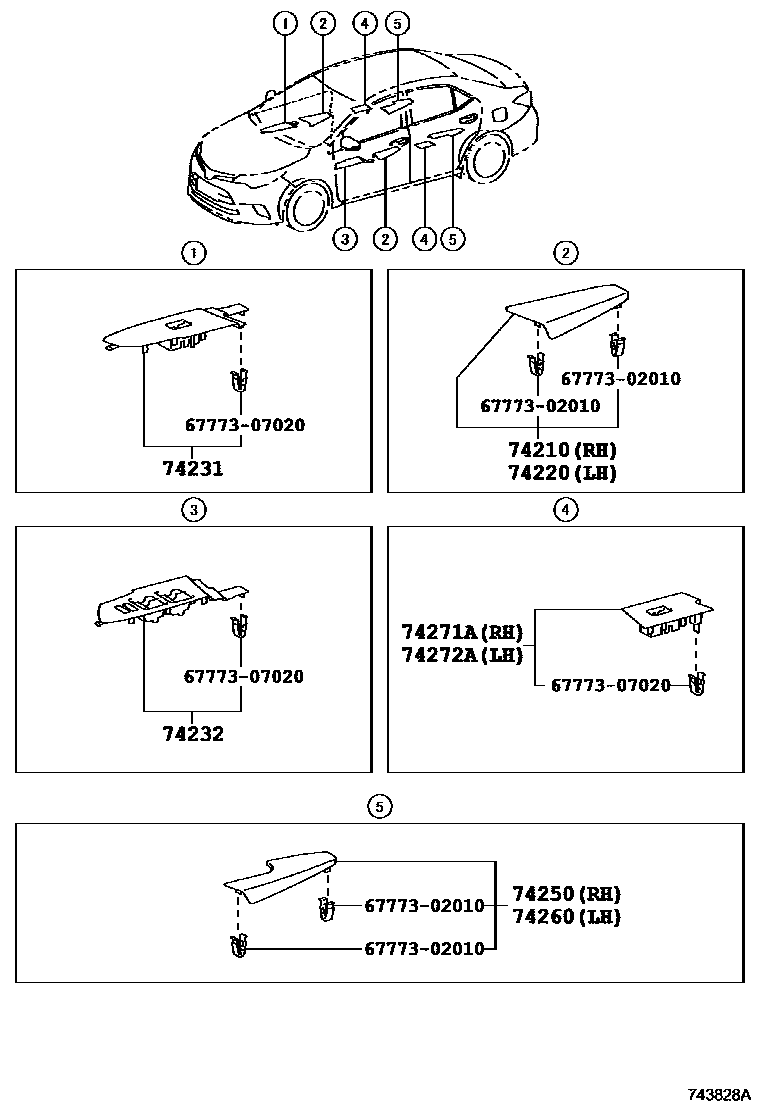

Parts diagram

74210ARMREST ASSY, FRONT, RH

main74210-02490-C0i201706

BLACK,TRIM0#,2#

main74210-02500-C2i201512-201706

BLACK,TRIM0#,2#

main74210-YL010-C0i201612-201706

R&D SEAT(FOR ACCESSORY),BLACK,TRIM2#

74220ARMREST ASSY, FRONT, LH

main74220-02460-C0i201706

BLACK,TRIM0#,2#

main74220-02470-C2i201706

BLACK,TRIM0#,2#; BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM0#,2#

main74220-YL010-C0i201612-201706

R&D SEAT(FOR ACCESSORY),BLACK,TRIM2#

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02D00-C0i201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02D50-C0i201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

74250ARMREST ASSY, REAR RH

main74250-02590-C0i201408-201706

BLACK,TRIM0#,2#

main74250-02600-C2i201408-201706

BLACK,TRIM2#

main74250-YL010-C0i201612-201706

R&D SEAT(FOR ACCESSORY),BLACK,TRIM2#

74260ARMREST ASSY, REAR LH

main74260-02590-C0i201706

BLACK,TRIM0#,2#

main74260-02600-C2i201408-201706

BLACK,TRIM2#

main74260-YL010-C0i201612-201706

R&D SEAT(FOR ACCESSORY),BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-02610-C0i201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-02540-C0i201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

6777302010

main67773-02010

6777307020

main67773-07020

10 parts on this diagram · 2 diagrams in section
