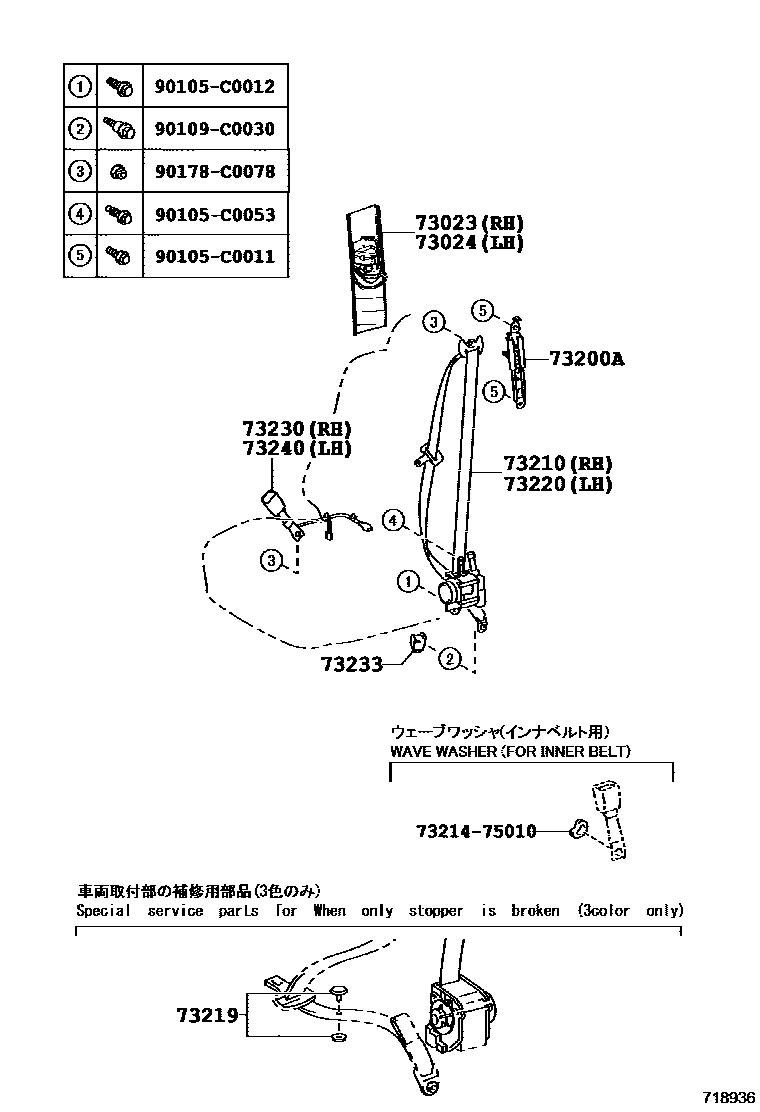

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02090-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main73023-02090-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main73023-02090-B0iNRE181,ZRE182,ZWE182201706

LT.GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02090-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main73024-02090-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main73024-02090-B0iNRE181,ZRE182,ZWE182201706

LT.GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-0G020×2iZRE181;ZRE182..6F201408-201611

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02620-A0iZRE182..G201612-201706

IVORY,TRIM0#

main73210-02620-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main73210-02620-C0iNRE181,ZWE182201512-201706

BLACK,TRIM2#

main73210-02630-A0iZRE18#..E,G,N201408-201612

IVORY,TRIM0#

main73210-02630-C0iZRE18#201408-201612

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iZRE182..CVT;NRE181,ZWE182201408-201706

BLACK

main73219-33020iZRE181;ZRE182..6F201408-201611

GRAY

main73219-33030iZRE182..CVT;NRE181,ZWE182201408-201706

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02440-A0iNRE181,ZWE182..E,G,N201512-201706

IVORY,TRIM0#

main73220-02440-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main73220-02440-C0iZRE182201612-201706

BLACK,TRIM2#

main73220-02570-A0iZRE18#..E,G,N201408-201612

IVORY,TRIM0#

main73220-02570-C0iZRE18#201408-201612

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02A80-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main73230-02A80-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main73230-02A80-C0iNRE181,ZRE182,ZWE182201706

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-0F010-C0×2iNRE181,ZRE182,ZWE182..E,G,N; ZRE182,ZWE182..V201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02A70-A0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

IVORY,TRIM0#

main73230-02A70-A1iZWE182..E;NRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main73230-02A70-C0iZWE182..E;NRE181,ZRE182201706

BLACK,TRIM2#

main73230-02B00-A0iZWE182..G201512-201706

IVORY,TRIM0#

main73230-02B00-A1iZWE182..G201706

FLAXEN,TRIM0#

main73230-02B00-C0iZRE182..V;ZWE182..G,V201408-201706

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105C0011

main90105-C0011

90105C0012

main90105-C0012

90105C0053

main90105-C0053

90109C0030

main90109-C0030

90178C0078

main90178-C0078

15 parts on this diagram · 2 diagrams in section
