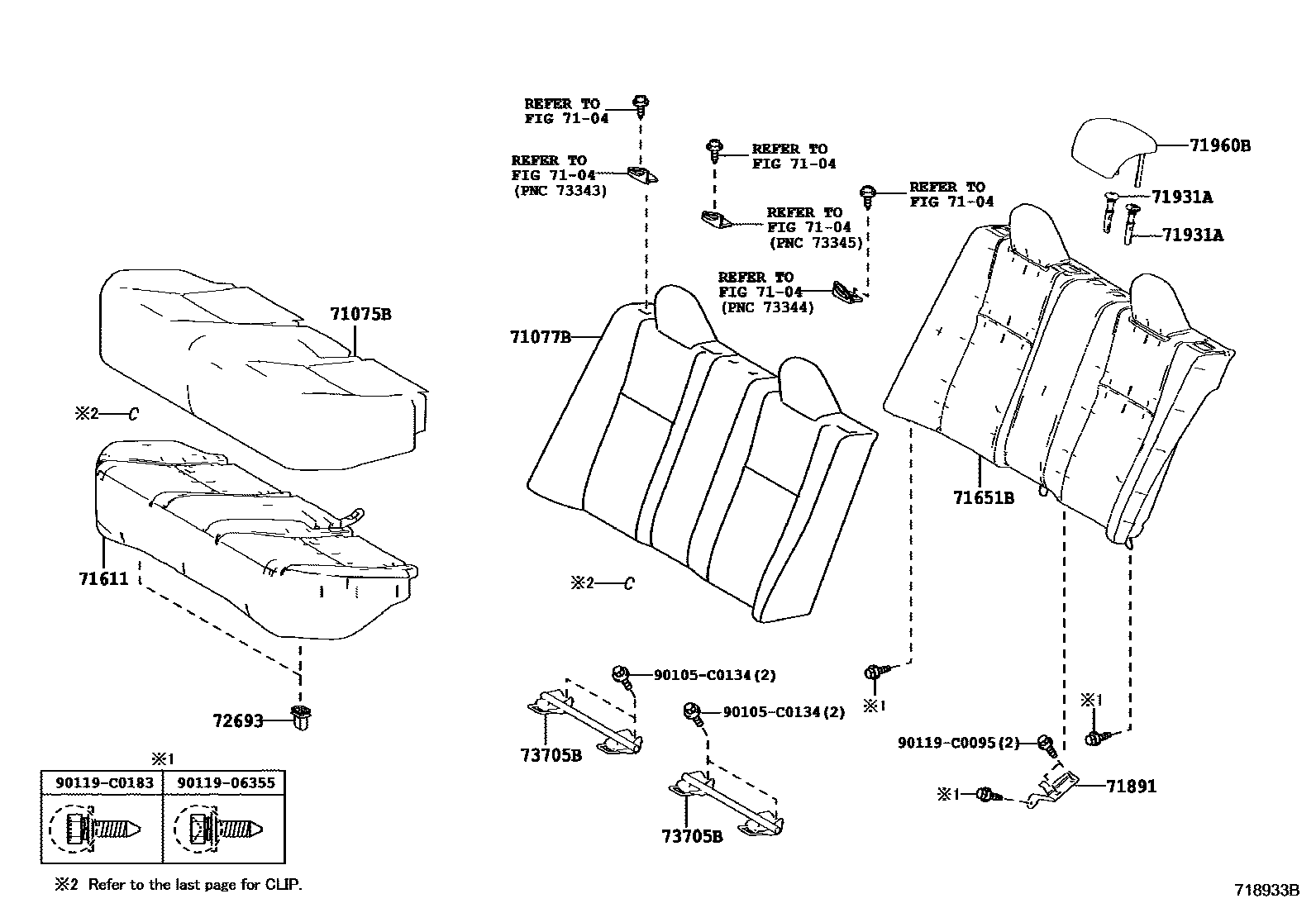

REAR SEAT & SEAT TRACK

0001 1FIXED SEAT,W/O(ARMREST) 0002 1FIXED SEAT,W(ARMREST) 0003 1FOLDING SEAT 0004 1W/O(ARMREST) 0005 1W(ARMREST) 0006 1SEAT COVER EDGE WIRE & CLIP

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-02W40-A1iNRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71075-02W40-C1iNRE181,ZRE182..E,G,N201706

BLACK,TRIM2#

main71075-02W70-C6iZRE182..V201408-201706

BLACK,TRIM2#

main71075-02W70-C7iNRE181,ZRE182..CVT..(E,G); ZRE182..V201706

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71075-02W80-A2iZRE18#..E,G,N; ZRE182..G;ZRE181..CVT..E201408-201609

IVORY,TRIM0#; R&D SEAT,IVORY,TRIM0#

main71075-02W80-C3iZRE18#..E,G,N; ZRE182..G;ZRE181..CVT..E201408-201609

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71075-02W81-A2iNRE181,ZRE182..CVT..(E,G); NRE181;ZRE182..CVT..G201610-201706

IVORY,TRIM0#; R&D SEAT,IVORY,TRIM0#

main71075-02W81-C3iNRE181,ZRE182..CVT..(E,G); NRE181;ZRE182..CVT..G201610-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71075-02X60-A0iZWE182..E201512-201609

IVORY/R080,TRIM0#

main71075-02X60-C0iZWE182..E201512-201609

BLACK,TRIM2#

main71075-02X61-A0iZWE182..E201610-201706

IVORY,TRIM0#

main71075-02X61-A2iZWE182..E201706

FLAXEN,TRIM0#

main71075-02X61-C0iZWE182..E201610-201706

BLACK,TRIM2#

main71075-02X61-C1iZWE182..E201706

BLACK,TRIM2#

main71075-02X80-A2iZWE182..G201512-201706

IVORY,TRIM0#

main71075-02X80-A3iZWE182..G201706

FLAXEN,TRIM0#

main71075-02X80-C3iZWE182..G,V201512-201706

BLACK,TRIM2#

main71075-02X80-C4iZWE182..G,V201706

BLACK,TRIM2#

main71075-02W60-A4iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71075-02W60-C8iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71075-02W70-A0iZRE181..E;NRE181,ZRE182..CVT..(E,G)201511-201706

LEATHER SEAT,IVORY,TRIM0#

main71075-02W70-A2iNRE181,ZRE182..CVT..(E,G)201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71075-02W81iZRE182..6F;ZRE181..CVT..E201610-201611

R&D SEAT

main71075-0ZC70iNRE181..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

main71075-0ZC80iZWE182..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-0Z430-A2iZWE182..E201512-201706

IVORY/R080,TRIM0#

main71077-0Z430-A3iZWE182..E201706

FLAXEN,TRIM0#

main71077-0Z430-C2iZWE182..E201706

BLACK,TRIM2#

main71077-0Z430-C3iZWE182..E201512-201706

BLACK,TRIM2#

main71077-0Z450-A2iZWE182..G201512-201706

IVORY,TRIM0#

main71077-0Z450-A4iZWE182..G201706

FLAXEN,TRIM0#

main71077-0Z450-C5iZWE182..G,V201512-201706

BLACK,TRIM2#

main71077-0Z450-C6iZWE182..G,V201706

BLACK,TRIM2#

main71078-02T90-A2iNRE181,ZRE18#..E,G,N; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71078-02T90-C3iNRE181,ZRE18#..E,G,N; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71077-0ZN30iZWE182..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

main71078-02U00-A6iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71078-02U00-C6iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-02550iZWE182201706

main71503-02560iNRE181,ZRE18#..E,G,N; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

R&D SEAT

main71503-02570iZRE182..V201408-201706

71651BPAD, REAR SEATBACK(FOR BENCH TYPE)

main71507-02340iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

main71507-02400iZWE182..E201706

main71507-02410iZWE182..G,V201706

main71507-02360iZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT)

71891BRACKET, REAR SEATBACK SET, NO.1

main71891-02030iZWE182201706

71931ASUPPORT, REAR SEAT HEADREST

main71930-02360-A1iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

W(LOCK),IVORY,TRIM0#; W(LOCK),R&D SEAT,IVORY,TRIM0#

main71930-02360-A6×3iZWE182..E; ZWE182..G;NRE181,ZRE182..E,G,N201706

W(LOCK),FLAXEN,TRIM0#

main71930-02360-C0iZRE182..G;NRE181,ZRE181..CVT..E; ZRE182..V;ZWE182..G,V; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

W(LOCK),BLACK,TRIM2#; W(LOCK),R&D SEAT,BLACK,TRIM2#

main71931-02120-A1×3iZWE182..G201512-201706

W/O(LOCK),IVORY,TRIM0#

main71931-02120-A6×3iZWE182..E; ZWE182..G;NRE181,ZRE182..E,G,N201706

W/O(LOCK),FLAXEN,TRIM0#

main71931-02120-C0iZWE182..E; ZWE182..G,V;NRE181,ZRE182201706

W/O(LOCK),BLACK,TRIM2#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-02G30-A0iZRE18#..E,G,N; ZRE182..G;ZRE181..CVT..E201408-201502

IVORY/R080,TRIM0#,20; R&D SEAT,IVORY/R080,TRIM0#,20

main71960-02G30-C0iZRE18#..E,G,N; ZRE182..G;ZRE181..CVT..E201408-201502

BLACK,TRIM20; R&D SEAT,BLACK,TRIM20

main71960-02G31-A0iZRE182..G;ZRE181..CVT..E; ZWE182..E;ZRE18#..E,G,N201503-201606

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71960-02G31-C0iZRE182..G;ZRE181..CVT..E; ZWE182..E;ZRE18#..E,G,N201503-201606

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71960-02G32-A0iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201606-201706

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71960-02G32-A2iZWE182..E;NRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71960-02G32-C0iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201606-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71960-02G40-C1iZRE181..E;ZRE182..CVT..G; ZRE182..V201408-201502

BLACK,TRIM2#; COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71960-02G41-A0iZWE182..G201512-201606

IVORY,TRIM0#

main71960-02G41-C1iZRE181..E;ZRE182..CVT..G; ZRE182..V;ZWE182..G,V201503-201606

BLACK,TRIM2#; COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71960-02G42-A0iZRE181..E;NRE181,ZRE182..CVT..(E,G); ZWE182..G201606-201706

IVORY,TRIM0#; LEATHER SEAT,IVORY,TRIM0#

main71960-02G42-A3iNRE181,ZRE182..CVT..(E,G); ZWE182..G201706

FLAXEN,TRIM0#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71960-02G42-C1iZRE181..E;NRE181,ZRE182..CVT..(E,G); ZRE182..V;ZWE182..G,V201606-201706

BLACK,TRIM2#; LEATHER SEAT,BLACK,TRIM2#

main71960-02G10iNRE181,ZWE182..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

main71960-02G40-A0iZRE181..E;ZRE182..CVT..G201408-201502

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-02030×2iNRE181,ZRE182,ZWE182201706

73705BBRACKET SUB-ASSY, CROSS ANCHOR

main73705-02210×2iNRE181,ZRE182201706

main73705-02230iZWE182201706

90105C0134

main90105-C0134

9011906355

main90119-06355

90119C0095

main90119-C0095

90119C0183

main90119-C0183

14 parts on this diagram · 6 diagrams in section
