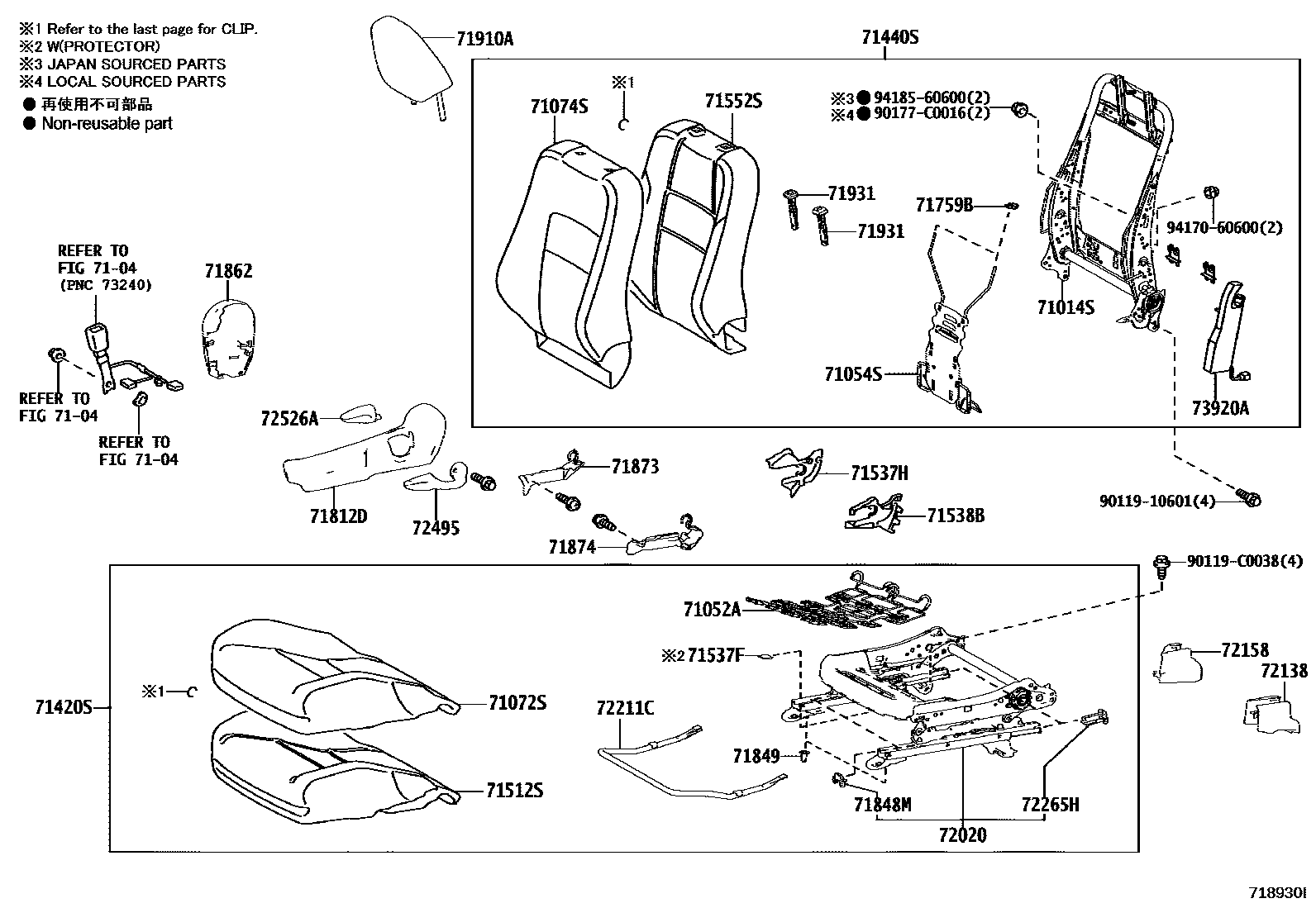

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(MANUAL) 0002 1LH SEAT(POWER) 0003 1RH SEAT 0004 1SEAT COVER EDGE WIRE & CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-02250iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

main71014-02260iZWE182..G,V201706-201807

main71014-02370iZWE182..G,V201808

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-0P030iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-02240iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0ZB00-A0iZWE182..G201512-201706

IVORY,TRIM0#

main71072-0ZB00-A2iZWE182..G201706-201807

FLAXEN,TRIM0#

main71072-0ZB00-A4iZWE182..G201807-201810

FLAXEN,TRIM0#

main71072-0ZB00-C5iZRE182..V;ZWE182..G,V201408-201706

BLACK,TRIM2#

main71072-0ZB00-C6iZWE182..G,V201706-201807

BLACK,TRIM2#

main71072-0ZB00-C8iZWE182..G,V201807-201810

BLACK,TRIM2#

main71072-0ZB90-A0iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71072-0ZB90-A2iZWE182..E201706

FLAXEN,TRIM0#

main71072-0ZB90-C0iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71072-0ZB90-C2iZWE182..E201706

BLACK,TRIM2#

main71072-0ZD80-A1iNRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71072-0ZD80-C1iNRE181,ZRE182..E,G,N201706

BLACK,TRIM2#

main71072-0ZD90-C1iNRE181,ZRE182..CVT..(E,G); ZRE182..V201706-201807

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71072-0ZD90-C4iNRE181,ZRE182..CVT..(E,G); ZRE182..V201807-201810

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71072-0ZU70-C0iNRE181,ZRE182..CVT..(E,G); ZRE182..V201810

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71072-0ZU80-A0iZWE182..G201810

FLAXEN,TRIM0#

main71072-0ZU80-C0iZWE182..G,V201810

BLACK,TRIM2#

main71072-0ZB10-A5iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71072-0ZB10-C5iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71072-0ZD90-A1iNRE181,ZRE182..CVT..(E,G)201706-201807

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71072-0ZD90-A2iNRE181,ZRE182..CVT..(E,G)201807-201810

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71072-0ZU00iNRE181,ZWE182..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

main71072-0ZU70-A0iNRE181,ZRE182..CVT..(E,G)201810

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0ZJ60-A1iNRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71074-0ZJ60-C1iNRE181,ZRE182..E,G,N201706

BLACK,TRIM2#

main71074-0ZJ80-A0iZWE182..G201512-201706

IVORY,TRIM0#

main71074-0ZJ80-C5iZRE182..V;ZWE182..G,V201408-201706

BLACK,TRIM2#

main71074-0ZJ90-A5iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71074-0ZJ90-C3iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71074-0ZM90-A0iNRE181,ZRE182..CVT..(E,G); ZWE182..G201706

FLAXEN,TRIM0#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71074-0ZM90-C0iNRE181,ZRE182..CVT..(E,G); ZRE182..V;ZWE182..G,V201706

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71074-0ZS00-A0iZWE182..E201706

FLAXEN,TRIM0#

main71074-0ZS00-C0iZWE182..E201706

BLACK,TRIM2#

main71074-0ZJ70-A3iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71074-0ZJ70-C3iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71074-F2180iNRE181,ZWE182..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-02D60-A4iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

IVORY,TRIM0#; R&D SEAT,IVORY,TRIM0#

main71420-02D60-A6iZWE182..E201706

FLAXEN,TRIM0#

main71420-02D60-C4iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71420-02D60-C6iZWE182..E201706

BLACK,TRIM2#

main71420-02T80-A0iZWE182..G201512-201706

IVORY,TRIM0#

main71420-02T80-A2iZWE182..G201706-201807

FLAXEN,TRIM0#

main71420-02T80-A3iZWE182..G201807-201810

FLAXEN,TRIM0#

main71420-02T80-C5iZRE182..V;ZWE182..G,V201408-201706

BLACK,TRIM2#

main71420-02T80-C6iZWE182..G,V201706-201807

BLACK,TRIM2#

main71420-02T80-C8iZWE182..G,V201807-201810

BLACK,TRIM2#

main71420-02Z00-A1iNRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71420-02Z00-C1iNRE181,ZRE182..E,G,N201706

BLACK,TRIM2#

main71420-02Z10-C1iNRE181,ZRE182..CVT..(E,G); ZRE182..V201706-201807

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71420-02Z10-C3iNRE181,ZRE182..CVT..(E,G); ZRE182..V201807-201810

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71420-0ZF50-C0iNRE181,ZRE182..CVT..(E,G); ZRE182..V201810

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71420-0ZF60-A0iZWE182..G201810

FLAXEN,TRIM0#

main71420-0ZF60-C0iZWE182..G,V201810

BLACK,TRIM2#

main71420-02T90-A6iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71420-02T90-C6iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71420-02Z10-A1iNRE181,ZRE182..CVT..(E,G)201706-201807

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71420-02Z10-A2iNRE181,ZRE182..CVT..(E,G)201807-201810

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71420-0ZE60iNRE181,ZWE182..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

main71420-0ZF50-A0iNRE181,ZRE182..CVT..(E,G)201810

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0ZM20-A6iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

IVORY,TRIM0#; R&D SEAT,IVORY,TRIM0#

main71440-0ZM20-C6iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71440-0ZM30-A0iZWE182..G201512-201706

IVORY,TRIM0#

main71440-0ZM30-C6iZRE182..V;ZWE182..G,V201408-201706

BLACK,TRIM2#

main71440-0ZR70-A0iZWE182..G201706

FLAXEN,TRIM0#

main71440-0ZR70-C0iZWE182..G,V201706

BLACK,TRIM2#

main71440-0ZR80-A1iNRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71440-0ZR80-C1iNRE181,ZRE182..E,G,N201706

BLACK,TRIM2#

main71440-0ZR90-C0iNRE181,ZRE182..CVT..(E,G); ZRE182..V201706

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71440-0ZX90-A1iZWE182..E201706

FLAXEN,TRIM0#

main71440-0ZX90-C1iZWE182..E201706

BLACK,TRIM2#

main71070-02J80iNRE181,ZWE182..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

main71440-0ZM40-A5iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71440-0ZM40-C5iZRE181..E;ZRE182..CVT..G201408-201612

COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71440-0ZR90-A0iNRE181,ZRE182..CVT..(E,G)201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-02700supersedes 71512-02810iNRE181,ZRE182201706

main71512-02770iZWE182..G,V201706

main71512-02810iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

71537FPROTECTOR, FRONT SEAT CUSHION, NO.2

main71537-02340iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)

main71537-02250-C0iNRE181,ZRE18#,ZWE182..E,G,N; ZRE182,ZWE182..V; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#; R&D SEAT,BLACK,TRIM0#,2#

71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)

main71538-02180-C0iNRE181,ZRE18#,ZWE182..E,G,N; ZRE182,ZWE182..V; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#; R&D SEAT,BLACK,TRIM0#,2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-02870supersedes 71552-02A30iZRE182..V;ZWE182..G,V201408-201706

main71552-02A30iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

71759BHOOK, FRONT SEATBACK

main71759-47011×4iNRE181,ZRE182..CVT..(E,G); ZRE182..CVT;NRE181,ZWE182201408-201706

R&D SEAT

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-02800-C0iZRE182..V; ZWE182..E;NRE181,ZRE182..E,G,N201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

main71812-02840-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

71848MCAP, SEAT ADJUSTER COVER, FRONT UPPER

main71848-0D130×4iNRE181,ZRE18#,ZWE182; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

R&D SEAT

71849CAP, SEAT ADJUSTER COVER, LH

main71848-02050×2iNRE181,ZRE18#,ZWE182; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

R&D SEAT

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-02340-C0iNRE181,ZRE18#,ZWE182..E,G,N; ZRE182,ZWE182..V; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#; R&D SEAT,BLACK,TRIM0#,2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-06440iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

main71873-06450iZWE182..G,V201706

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-06430iZRE182..V;ZWE182..G,V201408-201706

main71874-06520iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

71910AHEADREST ASSY, FRONT SEAT

main71910-02K50-A1×2iNRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main71910-02K50-C1×2iNRE181,ZRE182..E,G,N201706

BLACK,TRIM2#

main71910-02P80-C2×2iZRE181..E;ZRE182..CVT..G; ZRE182..V201408-201502

BLACK,TRIM2#; COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71910-02P81-A1×2iZWE182..G201512-201606

IVORY,TRIM0#

main71910-02P81-C2×2iZRE181..E;ZRE182..CVT..G; ZRE182..V;ZWE182..G,V201503-201606

BLACK,TRIM2#; COMBI SEAT(DRIVER POWER SEAT),BLACK,TRIM2#

main71910-02P82-A1×2iZRE181..E;NRE181,ZRE182..CVT..(E,G); ZWE182..G201606-201706

IVORY,TRIM0#; LEATHER SEAT,IVORY,TRIM0#

main71910-02P82-A4×2iNRE181,ZRE182..CVT..(E,G); ZWE182..G201706

FLAXEN,TRIM0#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main71910-02P82-C2×2iZRE181..E;NRE181,ZRE182..CVT..(E,G); ZRE182..V;ZWE182..G,V201606-201706

BLACK,TRIM2#; LEATHER SEAT,BLACK,TRIM2#

main71910-02P82-C4×2iNRE181,ZRE182..CVT..(E,G); ZRE182..V;ZWE182..G,V201706

BLACK,TRIM2#; LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main71910-02P90-A1×2iZRE18#..E,G,N; ZRE182..G;ZRE181..CVT..E201408-201502

IVORY/R080,TRIM0#,20; R&D SEAT,IVORY/R080,TRIM0#,20

main71910-02P90-C1×2iZRE18#..E,G,N; ZRE182..G;ZRE181..CVT..E201408-201502

BLACK,TRIM20; R&D SEAT,BLACK,TRIM20

main71910-02P91-A1×2iZRE182..G;ZRE181..CVT..E; ZWE182..E;ZRE18#..E,G,N201503-201606

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71910-02P91-C1×2iZRE182..G;ZRE181..CVT..E; ZWE182..E;ZRE18#..E,G,N201503-201606

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71910-02P92-A1×2iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201606-201706

IVORY/R080,TRIM0#; R&D SEAT,IVORY/R080,TRIM0#

main71910-02P92-A4×2iZWE182..E201706

FLAXEN,TRIM0#

main71910-02P92-C1×2iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201606-201706

BLACK,TRIM2#; R&D SEAT,BLACK,TRIM2#

main71910-02P92-C3×2iZWE182..E201706

BLACK,TRIM2#

main71910-02P80-A1×2iZRE181..E;ZRE182..CVT..G201408-201502

COMBI SEAT(DRIVER POWER SEAT),IVORY,TRIM0#

main71910-02V60×2iNRE181,ZWE182..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

71931SUPPORT, FRONT SEAT HEADREST

main71930-0D160-A0×2iNRE181,ZRE18#,ZWE182..E,G,N; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

W(LOCK),IVORY,TRIM0#; W(LOCK),R&D SEAT,IVORY,TRIM0#

main71930-0D160-A1×2iNRE181,ZRE182,ZWE182..E,G,N201706

W(LOCK),FLAXEN,TRIM0#

main71930-0D160-C0×2iNRE181,ZRE18#,ZWE182; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

W(LOCK),BLACK,TRIM2#; W(LOCK),R&D SEAT,BLACK,TRIM2#

main71931-0D170-A0×2iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

W/O(LOCK),IVORY,TRIM0#

main71931-0D170-A1×2iNRE181,ZRE182,ZWE182..E,G,N201706

W/O(LOCK),FLAXEN,TRIM0#

main71931-0D170-C0×2iNRE181,ZRE18#,ZWE182201408-201706

W/O(LOCK),BLACK,TRIM2#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-02771iZWE182..G,V201706

main72020-02790iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

72138COVER, SEAT TRACK, OUTER LH

main72138-02310-C0iNRE181,ZRE18#,ZWE182..E,G,N; ZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

72158COVER, SEAT TRACK BRACKET, INNER LH

main72158-02320-C0iNRE181,ZRE182,ZWE182..E,G,N; ZRE182,ZWE182..V201706

BLACK,TRIM0#,2#; BLACK,TRIM2#

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0D200×2iZRE181..E; ZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

COMBI SEAT(DRIVER POWER SEAT); R&D SEAT

72265HCOVER, SEAT TRACK UPPER RAIL, REAR INNER

main72265-0D020×4iNRE181,ZRE18#,ZWE182; ZRE182..G;NRE181,ZRE181..CVT..E201408-201706

R&D SEAT

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0D070-C0iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM0#,2#; R&D SEAT,BLACK,TRIM0#,2#

72526AHANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0P020-C0iZRE182..G;NRE181,ZRE181..CVT..E; ZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM0#,2#; R&D SEAT,BLACK,TRIM0#,2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02250iZRE181;ZRE182..6F; ZRE182..6F;ZRE181..CVT..E201408-201611

R&D SEAT

9011910601

main90119-10601

90119C0038

main90119-C0038

90177C0016

main90177-C0016

9417060600

main94170-60600

9418560600

main94185-60600

35 parts on this diagram · 4 diagrams in section
