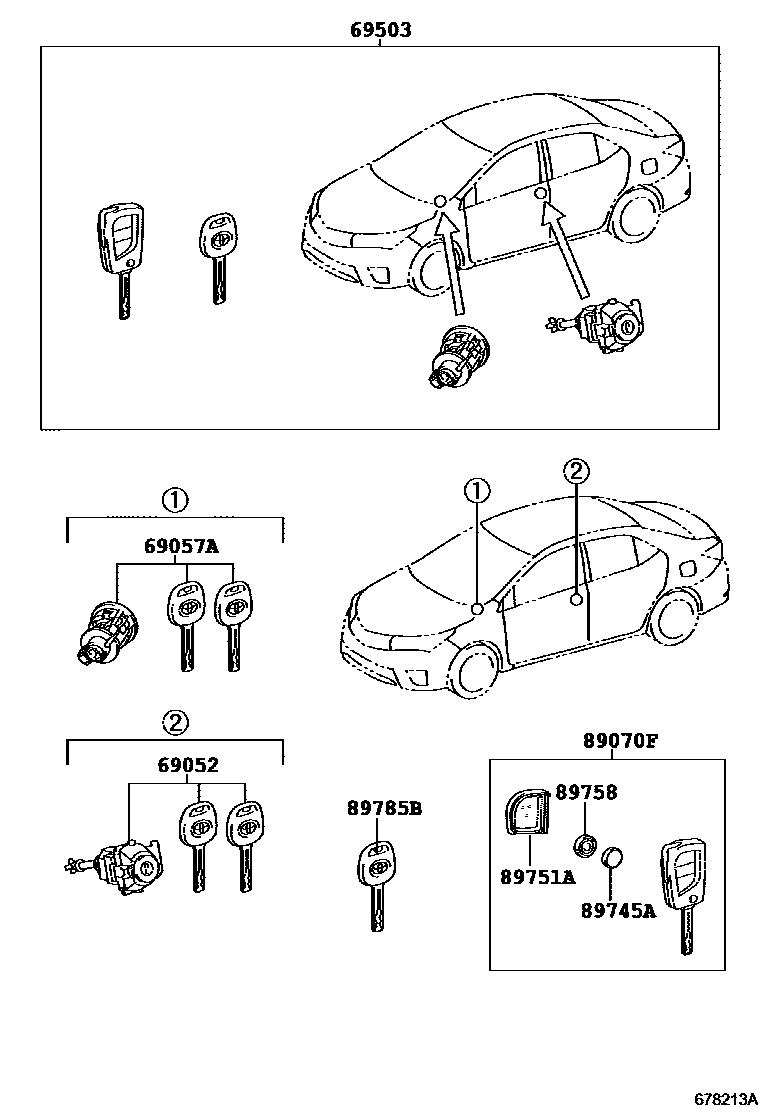

LOCK CYLINDER SET

0001 1WITHOUT(SMART ENTRY) 0002 1WITH(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02430iZRE181;ZRE182..6F201408-201611

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-02A60iZRE181;ZRE182..6F201408-201611

69503CYLINDER SET, LOCK

main69005-02E70iZRE182,ZWE182201706

main89704-02A50iZRE181;ZRE182..6F201408-201611

main89704-02F40iNRE181..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-0P090iZRE181;ZRE182..6F201408-201611

main89070-02K90iNRE181..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

89745ABATTERY, TRANSMITTER

main89745-0R020iZRE181;ZRE182..6F201408-201611

CR1620

89751ACOVER, TRANSMITTER HOUSING

main89751-0P060iNRE181;ZRE182..CVT..G201408-201706

main89751-02170iNRE181..CVT..E201807

FABRIC SEAT & 16INCH ALUMINUM WHEEL

89758PACKING, DOOR CONTROL TRANSMITTER

main89758-0R010iZRE181;ZRE182..6F201408-201611

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-06060iZRE181;ZRE182..6F201408-201611

8 parts on this diagram · 2 diagrams in section
