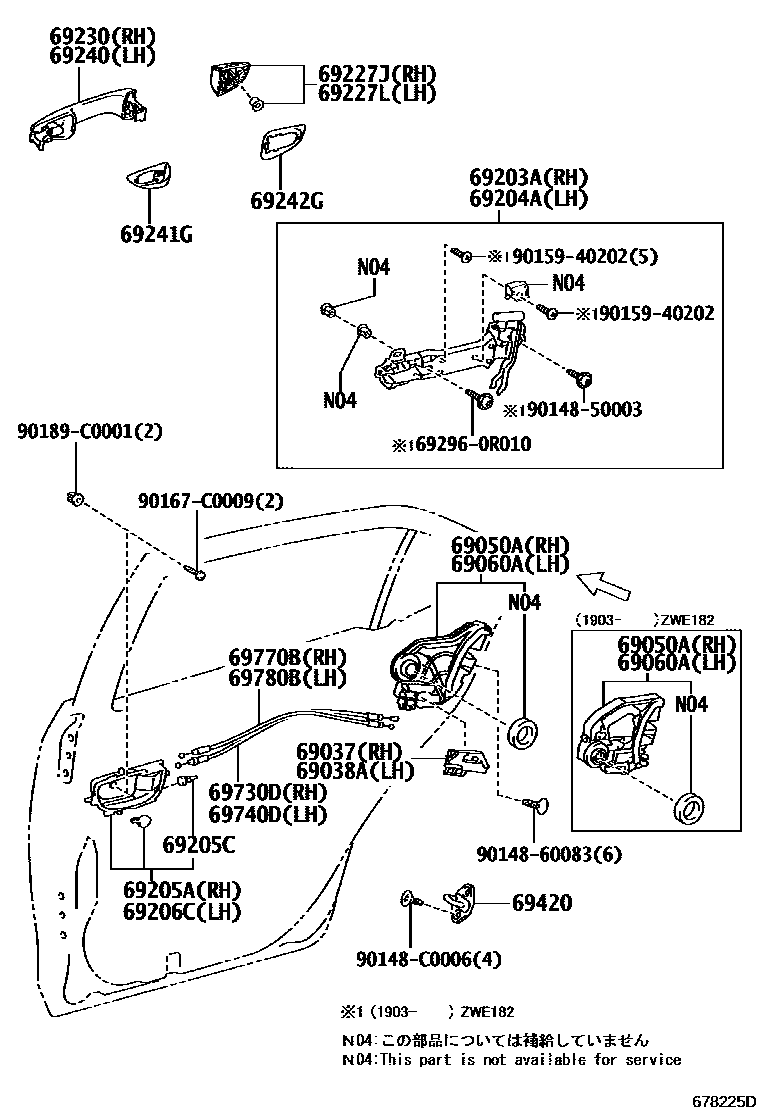

REAR DOOR LOCK & HANDLE

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02070iZRE181;ZRE182..6F201408-201903

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02070iZRE181;ZRE182..6F201408-201903

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02470iZWE182201408-201903

main69050-02480iZRE181;ZRE182..6F201408-201706

main69050-06111iZWE182201903

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02470iZWE182;ZRE182..V201408-201903

main69060-02480iZRE181;ZRE182..6F201408-201706

main69060-06111iZWE182201903

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02300iNRE181;ZRE182..CVT201408-201706

main69203-02370iZWE182201512-201903

main69203-02510iZWE182201903

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02300iZRE181;ZRE182..6F201408-201706

main69204-02370iZWE182201512-201903

main69204-02510iZWE182201903

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02340-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main69205-02340-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main69205-02340-C0iNRE181,ZRE182,ZWE182201408-201706

BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iZRE182..CVT;NRE181,ZWE182201408-201706

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02330-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main69206-02330-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main69206-02330-C0iNRE181,ZRE18#,ZWE182201408-201706

BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02320-A0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

WHITE PEARL CS.,070

main69227-02320-B0iNRE181,ZWE182..E,N201408-201706

SILVER ME.,1D4

main69227-02320-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69227-02320-C0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ATTITUDE BLACK MC.,218

main69227-02320-D0iNRE181,ZWE182..E,N201408-201706

RED M.M.,3R3

main69227-02320-E0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ORANGE ME.,4R8

main69227-02320-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69227-02320-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69227-02320-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69227-02320-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

main69250-02170-A0iZRE182..V;ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69250-02170-B0iZRE182,ZWE182..G,V201408-201706

SILVER ME.,1D4

main69250-02170-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69250-02170-C0iZRE182,ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69250-02170-D0iZRE182..V;ZWE182..G,V201408-201706

RED M.M.,3R3

main69250-02170-E0iZRE182,ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69250-02170-E1iZWE182..G,V201512-201706

DK. BROWN M.M.,4U3

main69250-02170-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69250-02170-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69250-02170-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69228-02120-A0iNRE181,ZWE182..E,N201408-201706

WHITE PEARL CS.,070

main69228-02120-B0iNRE181,ZWE182..E,N201408-201706

SILVER ME.,1D4

main69228-02120-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69228-02120-C0iNRE181,ZWE182..E,N201408-201706

ATTITUDE BLACK MC.,218

main69228-02120-D0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

RED M.M.,3R3

main69228-02120-E0iNRE181,ZWE182..E,N201408-201706

ORANGE ME.,4R8

main69228-02120-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69228-02120-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69228-02120-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69228-02120-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

main69250-02180-A0iZRE182..V;ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69250-02180-B0iZRE182..V;ZWE182..G,V201408-201706

SILVER ME.,1D4

main69250-02180-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69250-02180-C0iZRE182..V;ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69250-02180-D0iZRE182,ZWE182..G,V201408-201706

RED M.M.,3R3

main69250-02180-E0iZRE182,ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69250-02180-E1iZRE182..V201512-201706

DK. BROWN M.M.,4U3

main69250-02180-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69250-02180-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69250-02180-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-02220-A0iZRE182,ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69210-02220-B0iZRE182,ZWE182..G,V201408-201706

SILVER ME.,1D4

main69210-02220-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69210-02220-C0iZRE182..V;ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69210-02220-D0iZRE182..V;ZWE182..G,V201408-201706

RED M.M.,3R3

main69210-02220-E0iZRE182,ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69210-02220-E1iZRE182..V201512-201706

DK. BROWN M.M.,4U3

main69210-02220-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69210-02220-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69210-02220-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

main69211-02320-A0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

WHITE PEARL CS.,070

main69211-02320-B0iNRE181,ZWE182..E,N201408-201706

SILVER ME.,1D4

main69211-02320-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69211-02320-C0iNRE181,ZWE182..E,N201408-201706

ATTITUDE BLACK MC.,218

main69211-02320-D0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

RED M.M.,3R3

main69211-02320-E0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ORANGE ME.,4R8

main69211-02320-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69211-02320-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69211-02320-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69211-02320-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69212-02170-A0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

WHITE PEARL CS.,070

main69212-02170-B0iNRE181,ZWE182..E,N201408-201706

SILVER ME.,1D4

main69212-02170-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69212-02170-C0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ATTITUDE BLACK MC.,218

main69212-02170-D0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

RED M.M.,3R3

main69212-02170-E0iNRE181,ZWE182..E,N201408-201706

ORANGE ME.,4R8

main69212-02170-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69212-02170-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69212-02170-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69212-02170-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

main69220-02160-A0iZRE182..V;ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69220-02160-B0iZRE182,ZWE182..G,V201408-201706

SILVER ME.,1D4

main69220-02160-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69220-02160-C0iZRE182..V;ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69220-02160-D0iZRE182..V;ZWE182..G,V201408-201706

RED M.M.,3R3

main69220-02160-E0iZRE182..V;ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69220-02160-E1iZRE182..V201512-201706

DK. BROWN M.M.,4U3

main69220-02160-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69220-02160-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69220-02160-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02220iZRE181;ZRE182..6F201408-201706

RH

main69242-02210iZRE181;ZRE182..6F201408-201706

LH

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69241-02230iZRE182..CVT;NRE181,ZWE182201408-201706

RH

main69242-02220iZRE182..CVT;NRE181,ZWE182201408-201706

LH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-0D020iZRE182..CVT;NRE181,ZWE182201408-201706

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-02290iNRE181,ZRE182201408-201903

main69730-02450iZWE182201903

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-02290iNRE181,ZRE182201408-201903

main69730-02450iZWE182201903

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-02390iZRE181;ZRE182..6F201408-201903

main69770-02550iZWE182201903

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-02390iZRE181;ZRE182..6F201408-201903

main69770-02550iZWE182201903

692960R010SCREW, DOOR INSIDE HANDLE

main69296-0R010

9014850003

main90148-50003

9014860083

main90148-60083

90148C0006

main90148-C0006

9015940202

main90159-40202

90167C0009

main90167-C0009

90189C0001

main90189-C0001

27 parts on this diagram · 1 diagram in section
