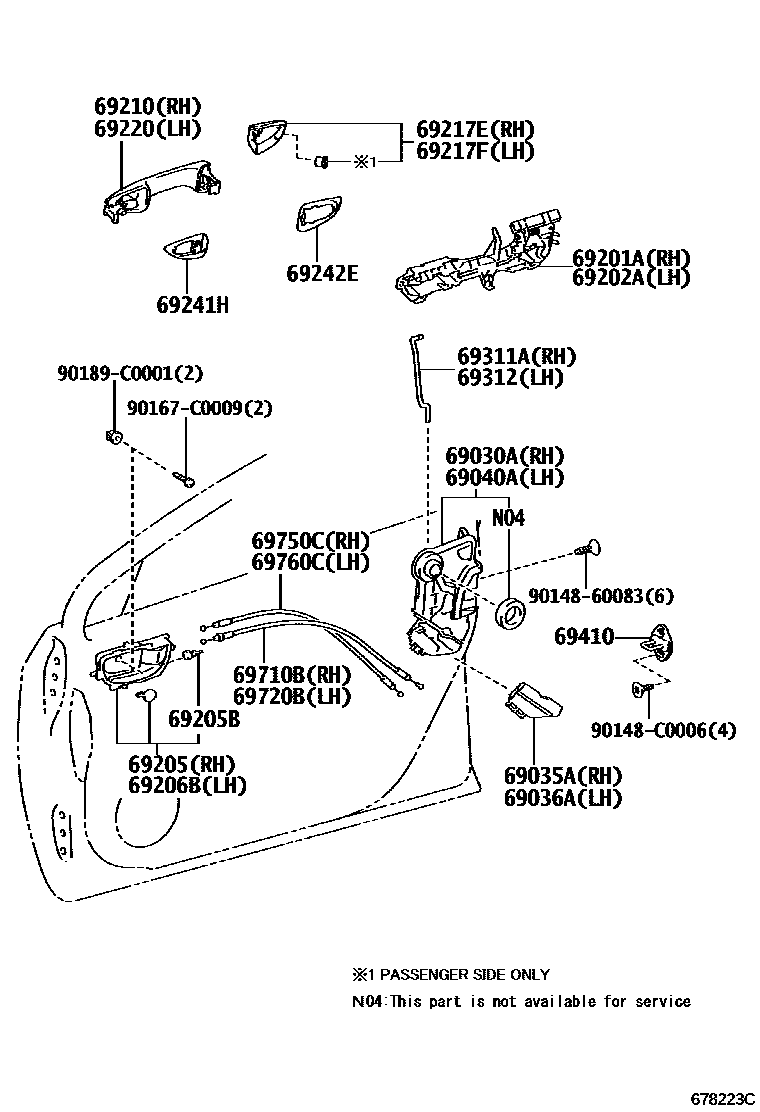

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-02640iZWE182;ZRE182..V201408-201706

main69030-02650iZRE181;ZRE182..6F201408-201706

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02070iNRE181,ZRE182,ZWE182201408-201706

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02070iZRE181;ZRE182..6F201408-201706

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-02600iZRE181;ZRE182..6F201408-201706

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-02290iZRE181;ZRE182..6F201408-201706

main69201-02300iZRE182,ZWE182..G,V201408-201706

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-02230iZRE182..CVT..G;NRE181,ZWE182..E,N201408-201706

main69202-02240iZRE182,ZWE182..G,V201408-201706

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-02340-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main69205-02340-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main69205-02340-C0iNRE181,ZRE182,ZWE182201408-201706

BLACK,TRIM2#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04027iZRE182..CVT;NRE181,ZWE182201408-201706

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-02330-A0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

IVORY,TRIM0#

main69206-02330-A1iNRE181,ZRE182,ZWE182..E,G,N201706

FLAXEN,TRIM0#

main69206-02330-C0iNRE181,ZRE182,ZWE182201408-201706

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-02210-A0iZRE182..V;ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69210-02210-B0iZRE182,ZWE182..G,V201408-201706

SILVER ME.,1D4

main69210-02210-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69210-02210-C0iZRE182,ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69210-02210-D0iZRE182..V;ZWE182..G,V201408-201706

RED M.M.,3R3

main69210-02210-E0iZRE182,ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69210-02210-E1iZRE182,ZWE182..G,V201512-201706

DK. BROWN M.M.,4U3

main69210-02210-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69210-02210-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69210-02210-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

main69211-02320-A0iNRE181,ZWE182..E,N201408-201706

WHITE PEARL CS.,070

main69211-02320-B0iNRE181,ZWE182..E,N201408-201706

SILVER ME.,1D4

main69211-02320-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69211-02320-C0iNRE181,ZWE182..E,N201408-201706

ATTITUDE BLACK MC.,218

main69211-02320-D0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

RED M.M.,3R3

main69211-02320-E0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ORANGE ME.,4R8

main69211-02320-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69211-02320-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69211-02320-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69211-02320-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-02460-A0iNRE181,ZWE182..E,N201408-201706

WHITE PEARL CS.,070

main69217-02460-B0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

SILVER ME.,1D4

main69217-02460-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69217-02460-C0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ATTITUDE BLACK MC.,218

main69217-02460-D0iNRE181,ZWE182..E,N201408-201706

RED M.M.,3R3

main69217-02460-E0iNRE181,ZWE182..E,N201408-201706

ORANGE ME.,4R8

main69217-02460-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69217-02460-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69217-02460-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69217-02460-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

main69250-02150-A0iZRE182,ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69250-02150-B0iZRE182..V;ZWE182..G,V201408-201706

SILVER ME.,1D4

main69250-02150-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69250-02150-C0iZRE182..V;ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69250-02150-D0iZRE182,ZWE182..G,V201408-201706

RED M.M.,3R3

main69250-02150-E0iZRE182..V;ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69250-02150-E1iZRE182,ZWE182..G,V201512-201706

DK. BROWN M.M.,4U3

main69250-02150-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69250-02150-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69250-02150-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-02220-A0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

WHITE PEARL CS.,070

main69218-02220-B0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

SILVER ME.,1D4

main69218-02220-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69218-02220-C0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ATTITUDE BLACK MC.,218

main69218-02220-D0iNRE181,ZWE182..E,N201408-201706

RED M.M.,3R3

main69218-02220-E0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

ORANGE ME.,4R8

main69218-02220-E1iZRE182..G201512-201706

DK. BROWN M.M.,4U3

main69218-02220-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69218-02220-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69218-02220-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

main69250-02160-A0iZRE182,ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69250-02160-B0iZRE182..V;ZWE182..G,V201408-201706

SILVER ME.,1D4

main69250-02160-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69250-02160-C0iZRE182..V;ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69250-02160-D0iZRE182..V;ZWE182..G,V201408-201706

RED M.M.,3R3

main69250-02160-E0iZRE182,ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69250-02160-E1iZRE182,ZWE182..G,V201512-201706

DK. BROWN M.M.,4U3

main69250-02160-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69250-02160-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69250-02160-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69212-02170-A0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

WHITE PEARL CS.,070

main69212-02170-B0iNRE181,ZWE182..E,N201408-201706

SILVER ME.,1D4

main69212-02170-B1iZRE18#..E,G,N201408-201612

GRAY ME.,1G3

main69212-02170-C0iNRE181,ZWE182..E,N201408-201706

ATTITUDE BLACK MC.,218

main69212-02170-D0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

RED M.M.,3R3

main69212-02170-E0iNRE181,ZWE182..E,N201408-201706

ORANGE ME.,4R8

main69212-02170-E1iNRE181,ZWE182..E,N201512-201706

DK. BROWN M.M.,4U3

main69212-02170-J0iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLUE ME.,8T7

main69212-02170-J1iNRE181,ZWE182..E,N201706

BLUE ME.,8X7

main69212-02170-K0iZWE182..E201512-201706

DEEP AMETHYST M.M.,9AH

main69220-02150-A0iZRE182..V;ZWE182..G,V201408-201706

WHITE PEARL CS.,070

main69220-02150-B0iZRE182,ZWE182..G,V201408-201706

SILVER ME.,1D4

main69220-02150-B1iZRE182..V201408-201612

GRAY ME.,1G3

main69220-02150-C0iZRE182,ZWE182..G,V201408-201706

ATTITUDE BLACK MC.,218

main69220-02150-D0iZRE182,ZWE182..G,V201408-201706

RED M.M.,3R3

main69220-02150-E0iZRE182,ZWE182..G,V201408-201706

ORANGE ME.,4R8

main69220-02150-E1iZRE182..V201512-201706

DK. BROWN M.M.,4U3

main69220-02150-J0iZRE182..V;ZWE182..G,V201408-201706

BLUE ME.,8T7

main69220-02150-J1iZRE182,ZWE182..G,V201706

BLUE ME.,8X7

main69220-02150-K0iZWE182..G,V201512-201706

DEEP AMETHYST M.M.,9AH

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-02220iZRE182..CVT;NRE181,ZWE182201408-201706

RH

main69242-02210iZRE182..CVT;NRE181,ZWE182201408-201706

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-02230iZRE182..CVT;NRE181,ZWE182201408-201706

RH

main69242-02220iZRE182..CVT;NRE181,ZWE182201408-201706

LH

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-02320iZRE181;ZRE182..6F201408-201706

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-02320iZRE181;ZRE182..6F201408-201706

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-0D020iZRE181;ZRE182..6F201408-201706

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-02320iZRE181;ZRE182..6F201408-201706

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-02320iZRE181;ZRE182..6F201408-201706

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-02350iZRE181;ZRE182..6F201408-201706

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-02350iZRE181;ZRE182..6F201408-201706

9014860083

main90148-60083

90148C0006

main90148-C0006

90167C0009

main90167-C0009

90189C0001

main90189-C0001

26 parts on this diagram · 1 diagram in section
