ROOF PANEL & BACK WINDOW GLASS

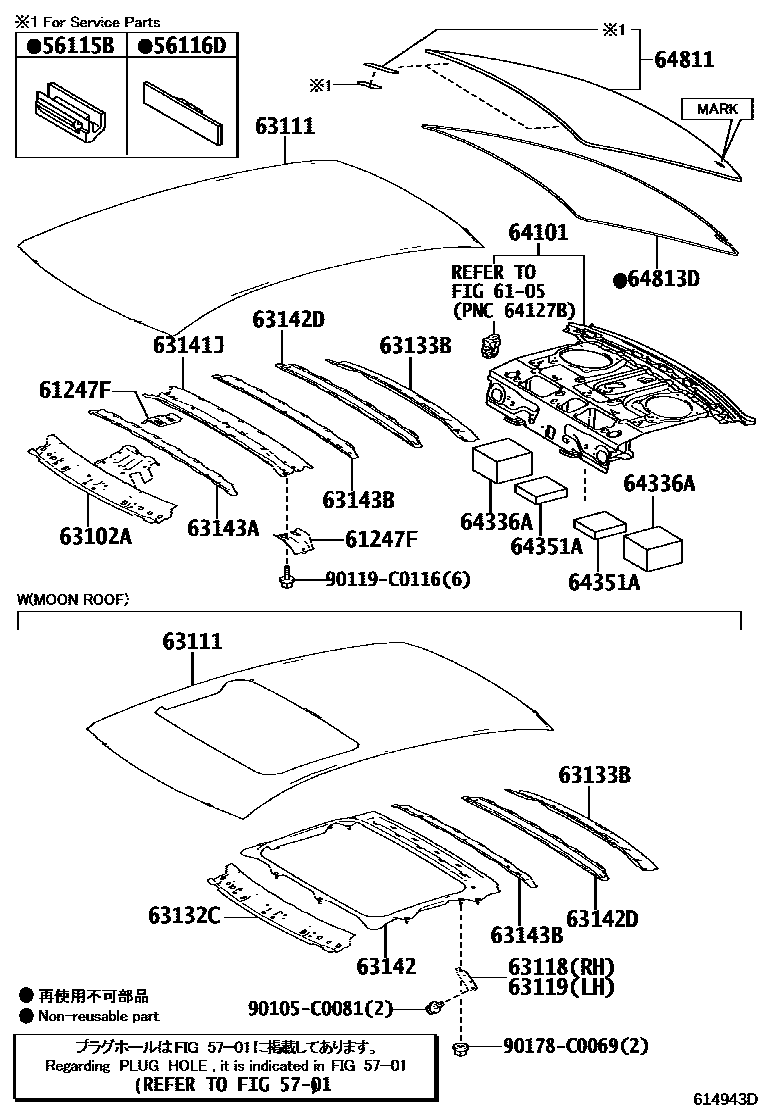

Parts diagram

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2i201408-201706

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2i201408-201611

5701HOLE PLUG

→ Go to FIG 57-01

6105LUGGAGE COMPARTMENT DOOR & LOCK

→ Go to FIG 61-05

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-02210×2i201408-201611

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-02400i201408-201611

63111PANEL, ROOF

main63111-02520i201706

main63111-02530i201706

main63111-02550i201512-201706

main63111-02610i201706

NORMAL ROOF & W(SHARK FIN ANTENNA)

63118SUPPORT, ROOF PANEL, RH

main63118-02100i201408-201611

63119SUPPORT, ROOF PANEL, LH

main63118-02100i201408-201611

63132CPANEL, WINDSHIELD HEADER, INNER

main63132-02230i201408-201611

63133BFRAME, BACK WINDOW

main63133-02160i201408-201411

main63133-02180i201412-201611

63141JREINFORCEMENT, ROOF PANEL

main63141-02220i201408-201611

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-02110i201408-201611

63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63127-02130i201408-201611

63143AREINFORCEMENT, ROOF PANEL

main63143-02200i201408-201611

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-02230i201408-201611

main63148-02100i201408-201706

64101PANEL SUB-ASSY, UPPER BACK

main64101-02530i201408-201503

main64101-02531i201504-201510

main64101-02532i201511-201601

main64101-02533i201602-201611

main64101-02550i201408-201601

main64101-02551i201706

64336APAD, PACKAGE TRAY TRIM SILENCER, SIDE

main64336-02090×2i201706

64351APAD, PACKAGE TRAY TRIM, NO.1

main64351-02100×2i201408-201706

64811GLASS, BACK WINDOW

main64801-02320i201608-201706

GLASS MARK=E001084

main64801-02350i201608-201706

MARK=E005771

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-02230i201706

90105C0081

main90105-C0081

90119C0116

main90119-C0116

90178C0069

main90178-C0069

24 parts on this diagram · 2 diagrams in section
