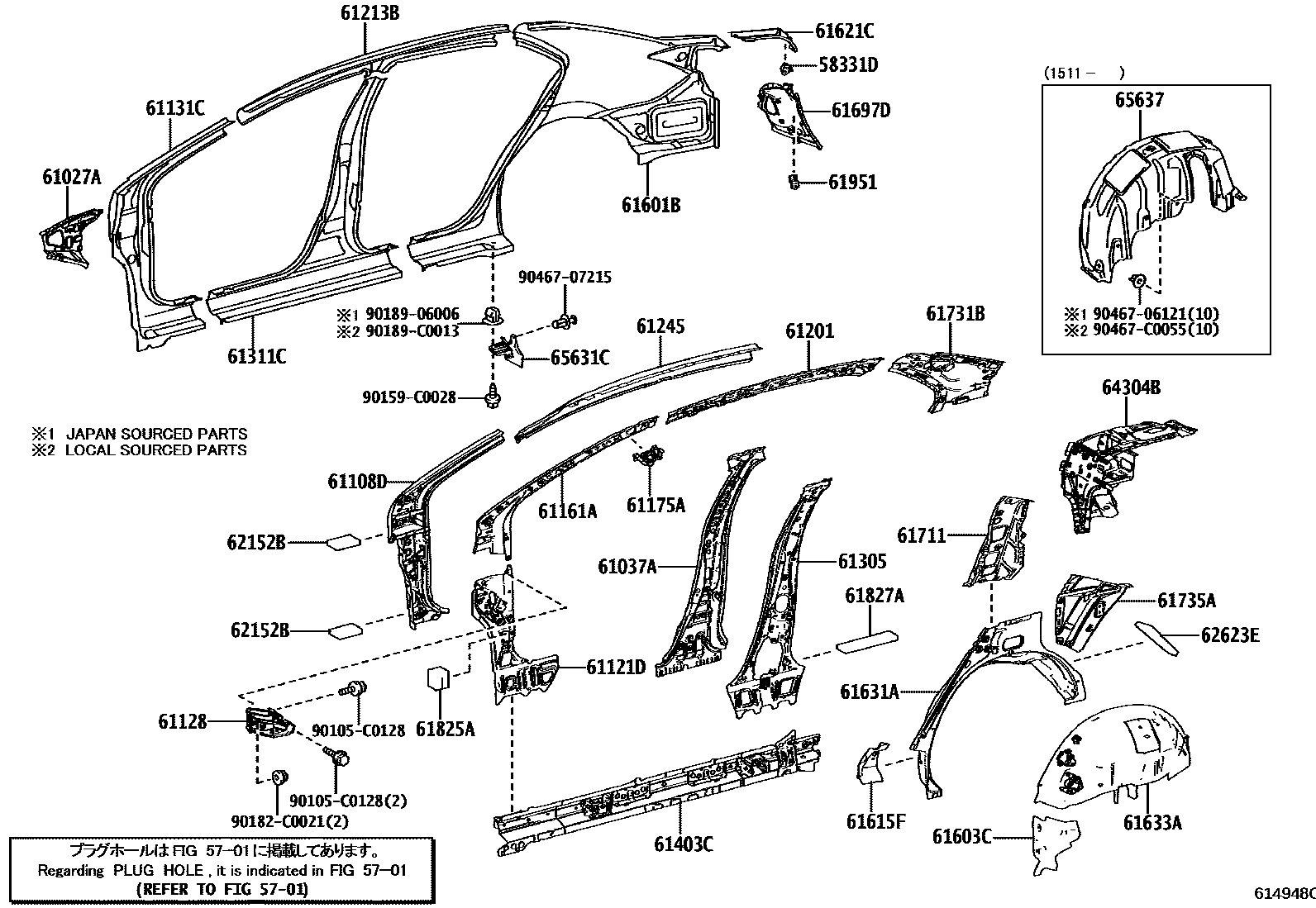

SIDE MEMBER

0001 1RH 0002 1LH

5701HOLE PLUG

→ Go to FIG 57-01

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-02200iNRE181,ZRE182,ZWE182201701-201706

main58331-12090iZRE182,ZWE182..CVT201408-201612

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-02070iZRE181;ZRE182..6F201408-201611

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02280iZRE181;ZRE182..6F201408-201611

61108DREINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH

main61108-02270iZRE181;ZRE182..6F201408-201611

61121DPANEL, COWL SIDE, RH

main61121-02210iZRE181;ZRE182..6F201408-201611

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-02230iZRE181;ZRE182..6F201408-201611

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02340iZRE181;ZRE182..6F201408-201611

61161APILLAR, FRONT BODY, INNER RH

main61161-02250iZRE181;ZRE182..6F201408-201611

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-02220iZRE18#,ZWE182201408-201609

main61175-02221iZRE181;ZRE182..6F201610-201611

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02260iZRE181;ZRE182..6F201408-201611

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02120iZRE182..CVT;NRE181,ZWE182201408-201706

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-02250iZRE181;ZRE182..6F201408-201611

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02180iZRE181;ZRE182..6F201408-201611

main61305-02181iNRE181,ZRE182,ZWE182201903

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02330iZRE181;ZRE182..6F201408-201611

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-02220iZRE181;ZRE182..6F201408-201611

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02440iZRE181;ZRE182..6F201408-201611

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61603-0F020iZRE181;ZRE182..6F201408-201611

61615FREINFORCEMENT, QUARTER PANEL, OUTER RH

main61615-02030iNRE181,ZRE182,ZWE182201701-201706

main61615-12010iNRE181201408-201701

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-02250iNRE181,ZRE182,ZWE182201706

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02230iZRE181;ZRE182..6F201408-201611

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-02960iZRE182..V201408-201612

main61607-02961iZWE182;ZRE18#..E,G,N201408-201612

main61607-02963iNRE181,ZRE182..CVT..(E,G); ZRE182..V201612-201701

LEATHER SEAT

main61607-02964iZWE182;NRE181,ZRE182..E,G,N201612-201701

main61607-02965iNRE181,ZRE182..CVT..(E,G); ZRE182..V201701-201705

LEATHER SEAT

main61607-02966iZWE182;NRE181,ZRE182..E,G,N201701-201705

main61607-02967iNRE181,ZRE182..CVT..(E,G); ZRE182..V201705-201706

LEATHER SEAT

main61607-02968iZWE182;NRE181,ZRE182..E,G,N201705-201706

61697DHOUSING, QUARTER PANEL END, RH

main61697-02150iZRE181;ZRE182..6F201408-201611

61711PANEL, ROOF SIDE, OUTER RH

main61711-02140iZRE181;ZRE182..6F201408-201611

main61711-02230iNRE181,ZRE182,ZWE182201802

61731BPANEL, ROOF SIDE, INNER RH

main61731-02320iZRE18#201408-201512

main61731-02321iZRE181;ZRE182..6F201601-201611

main61731-02410iNRE181,ZRE182,ZWE182201802

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-02220iZRE181;ZRE182..6F201408-201611

61825APLATE, NOISE CONTROL, NO.2

main61825-02100×2iZRE181;ZRE182..6F201408-201611

61827APLATE, NOISE CONTROL, NO.4

main61827-02090×2iZRE181;ZRE182..6F201408-201611

61951BRACKET, SIDE TRIM, RH

main61951-02110iZRE181;ZRE182..6F201408-201611

62152BPAD, COWL SIDE SILENCER, NO.2

main62152-12050×4iZRE181;ZRE182..6F201408-201611

62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-02110iZRE18#201408-201511

main62623-02140iZRE181;ZRE182..6F201511-201611

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-02230iZRE18#..E,G,N201408-201503

main64304-02231iZRE181;ZRE182..6F201504-201611

main64304-02270iZRE182..V201408-201503

main64304-02271iZRE182..V201504-201706

65631CPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-02300iZRE181;ZRE182..6F201408-201611

65637LINER, REAR WHEEL HOUSE, RH

main65637-02120iZRE181;ZRE182..6F201511-201611

main65637-02121iNRE181,ZRE182,ZWE182201709

90105C0128

main90105-C0128

90159C0028

main90159-C0028

90182C0021

main90182-C0021

9018906006

main90189-06006

90189C0013

main90189-C0013

9046706121

main90467-06121

9046707215

main90467-07215

90467C0055

main90467-C0055

42 parts on this diagram · 2 diagrams in section
