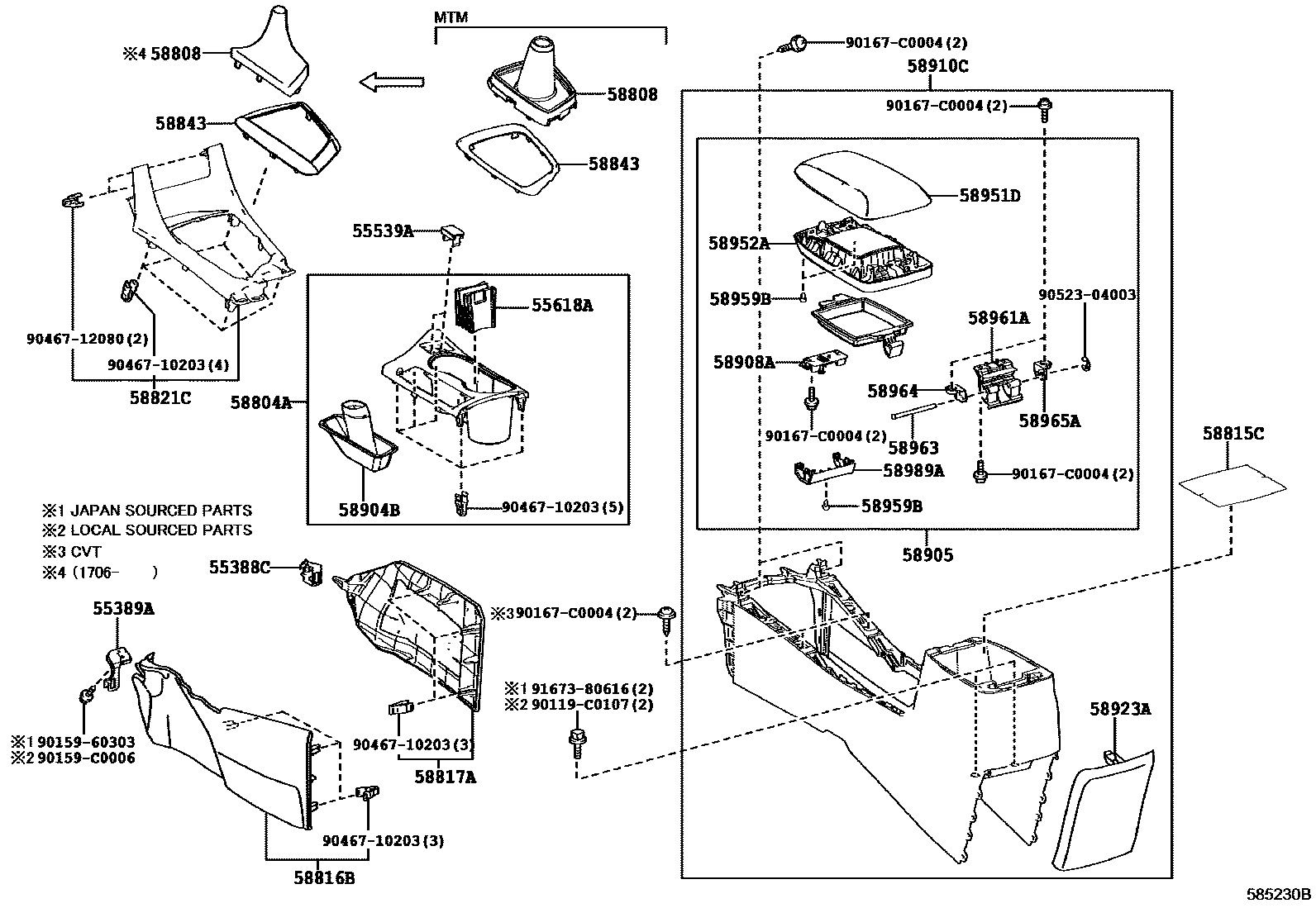

CONSOLE BOX & BRACKET

0001 1 0002 1

55388CBRACKET, CONSOLE MOUNTING, RH

main55388-02190iZRE182..CVT;NRE181,ZWE182201408-201706

55389ABRACKET, CONSOLE MOUNTING, LH

main55389-02170iZRE181;ZRE182..6F201408-201706

55539ACOVER, SPARE SWITCH HOLE

main55539-0D100-C0iZWE182..V201408-201706

BLACK,TRIM2#

main55539-0D100-C0iZWE182..V201408-201706

BLACK,TRIM0#,2#

55618AHOLDER, CONSOLE BOX CUP

main55618-02300-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#

main55618-02300-C0iNRE181,ZRE18#,ZWE182..E,G,N201408-201706

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-02440-C0iZRE181..N;ZWE182..E201408-201611

BLACK,TRIM0#,2#

sub58804-02441

main58804-02441-C0iZWE182..E201612-201706

BLACK,TRIM0#,2#

main58804-02450-C0iZWE182..G;ZRE18#..E,G201408-201611

BLACK,TRIM2#

sub58804-02451

main58804-02450-C0iZWE182..G;ZRE18#..E,G201408-201611

BLACK,TRIM0#,2#

sub58804-02451

main58804-02451-C0iZRE182,ZWE182..V201612-201706

BLACK,TRIM0#,2#

main58804-02451-C0iZWE182..G;NRE181,ZRE182..E,G201612-201706

BLACK,TRIM2#

main58804-02452-C0iZRE182,ZWE182..V201706

BLACK,TRIM0#,2#

main58804-02452-C0iZRE182,ZWE182..V201706

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-02460-C0iNRE181,ZRE18#..MTM201408-201706

BLACK,TRIM0#,2#

main58808-02610iNRE181,ZRE182..CVT201706

58815CCARPET, CONSOLE BOX

main58815-02380iZRE181;ZRE182..6F201408-201706

58816BINSERT, CONSOLE BOX

main58816-02290-C0iZRE182..V201408-201510

BLACK,TRIM2#

sub58816-02291

main58816-02290-C0iZRE182..V201408-201510

BLACK,TRIM0#,2#

sub58816-02291

main58816-02291-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM2#

main58816-02291-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM0#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-02290-C0iZRE182..V201408-201510

BLACK,TRIM2#

sub58817-02291

main58817-02290-C0iZRE182..V201408-201510

BLACK,TRIM0#,2#

sub58817-02291

main58817-02291-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM2#

main58817-02291-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM0#,2#

58821CPANEL, CONSOLE, UPPER

main58821-02510iZWE182201512-201706

sub58821-02511

main58821-02511iZWE182201706

main58821-02880-C0iZRE182..V201408-201706

BLACK,TRIM2#

main58821-02880-C0iNRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM0#,2#

58843BEZEL, SHIFTING HOLE

main58843-02760iZRE181..CVT..N201408-201706

main58843-02761iNRE181..CVT..N201706

main58843-02770iZRE181..CVT..E201408-201706

main58843-02771iNRE181,ZRE182..CVT..(E,G,V)201706

main58843-02780iNRE181..6F..N201408-201706

main58843-02790iZRE18#..MTM..(E,G)201408-201706

main58843-02791iNRE181..6F..E201706

58904BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58904-02350-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

main58904-02350-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-02C80-C1iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

IVORY/R080,TRIM2#

main58905-02C80-C2iZWE182..E;NRE181,ZRE18#..E,G,N201408-201706

BLACK,TRIM0#

main58905-02C80-C5iZWE182..E;NRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main58905-02C90-C1iZWE182..G201512-201706

IVORY,TRIM0#

main58905-02C90-C2iZRE182..V;ZWE182..G,V201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

main58905-02C90-C2iNRE181,ZRE182..CVT..(E,G)201408-201706

BLACK,TRIM2#

main58905-02C90-C3iZWE182..G201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main58905-02C90-C3iZWE182..G201706

FLAXEN,TRIM0#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-02200iZRE181;ZRE182..6F201408-201706

58910CBOX ASSY, CONSOLE, REAR

main58910-02641-C1iZRE18#..E,G,N201408-201510

BLACK/BLACK,TRIM2#

sub58910-02642

main58910-02641-C2iZRE18#..E,G,N201408-201510

BLACK/IVORY/R080,TRIM0#

sub58910-02642

main58910-02642-C1iZWE182..E;NRE181,ZRE182..E,G,N201511-201706

BLACK/BLACK,TRIM2#

main58910-02642-C2iZWE182..E;NRE181,ZRE18#..E,G,N201511-201706

BLACK/IVORY,TRIM0#

main58910-02642-C5iZWE182..E;NRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main58910-02670-C2iZRE182..V201408-201510

COMBI SEAT(DRIVER POWER SEAT),BLACK/BLACK,TRIM2#

sub58910-02671

main58910-02670-C2iZRE181..E;ZRE182..CVT..G201408-201510

BLACK/BLACK,TRIM2#

sub58910-02671

main58910-02671-C1iZWE182..G201512-201706

BLACK/IVORY,TRIM0#

main58910-02671-C2iZRE181..E;NRE181,ZRE182..CVT..(E,G)201511-201706

BLACK/BLACK,TRIM2#

main58910-02671-C2iNRE181,ZRE182..CVT..(E,G)201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK/BLACK,TRIM2#

main58910-02671-C2iZRE182..V;ZWE182..G,V201511-201706

LEATHER SEAT,BLACK/BLACK,TRIM2#

main58910-02671-C3iNRE181,ZRE182..CVT..(E,G)201706

FLAXEN,TRIM0#

main58910-02671-C3iZWE182..G201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

58923APANEL, CONSOLE REAR END

main58923-02300-C0iNRE181,ZRE182,ZWE182..E,G,N201408-201706

BLACK,TRIM0#,2#

main58923-02300-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-02B60-A0iZRE181;ZRE182..6F201408-201706

IVORY/R080,TRIM01

main58951-02B60-A0iNRE181,ZWE182..E,N201512-201706

IVORY/R080,TRIM0#

main58951-02B60-A2iZWE182..E;NRE181,ZRE182..E,G,N201706

FLAXEN,TRIM0#

main58951-02B60-C0iNRE181,ZWE182..E,N201512-201706

BLACK,TRIM2#

main58951-02B60-C0iZRE181;ZRE182..6F201408-201706

BLACK,TRIM20

main58951-02B70-A0iZWE182..G201512-201706

IVORY,TRIM0#

main58951-02B70-A0iZRE182..V201408-201706

IVORY,TRIM20

main58951-02B70-A1iNRE181,ZRE182..CVT..(E,G)201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,FLAXEN,TRIM0#

main58951-02B70-A1iZWE182..G201706

FLAXEN,TRIM0#

main58951-02B70-C0iZRE182..V;ZWE182..G,V201512-201706

BLACK,TRIM2#

main58951-02B70-C0iZRE182..V201408-201706

BLACK,TRIM20

main58951-02B70-C0iZRE182..V;ZWE182..G,V201706

LEATHER SEAT & 16INCH ALUMINUM WHEEL,BLACK,TRIM2#

58952ADOOR, CONSOLE COMPARTMENT, INNER

main58952-02520-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

main58952-02520-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078iZRE181;ZRE182..6F201408-201706

58961AHINGE, CONSOLE COMPARTMENT DOOR MALE

main58961-02220iZRE181;ZRE182..6F201408-201706

58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE

main58963-02180iZRE181;ZRE182..6F201408-201706

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-02400iZRE181;ZRE182..6F201408-201706

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-02410iZRE181;ZRE182..6F201408-201706

58989ARETAINER, CONSOLE BOX

main58989-02250-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

main58989-02250-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#

90119C0107

main90119-C0107

9015960303

main90159-60303

90159C0006

main90159-C0006

90167C0004

main90167-C0004

9046710203

main90467-10203

9046712080

main90467-12080

9052304003

main90523-04003

9167380616

main91673-80616

32 parts on this diagram · 2 diagrams in section
