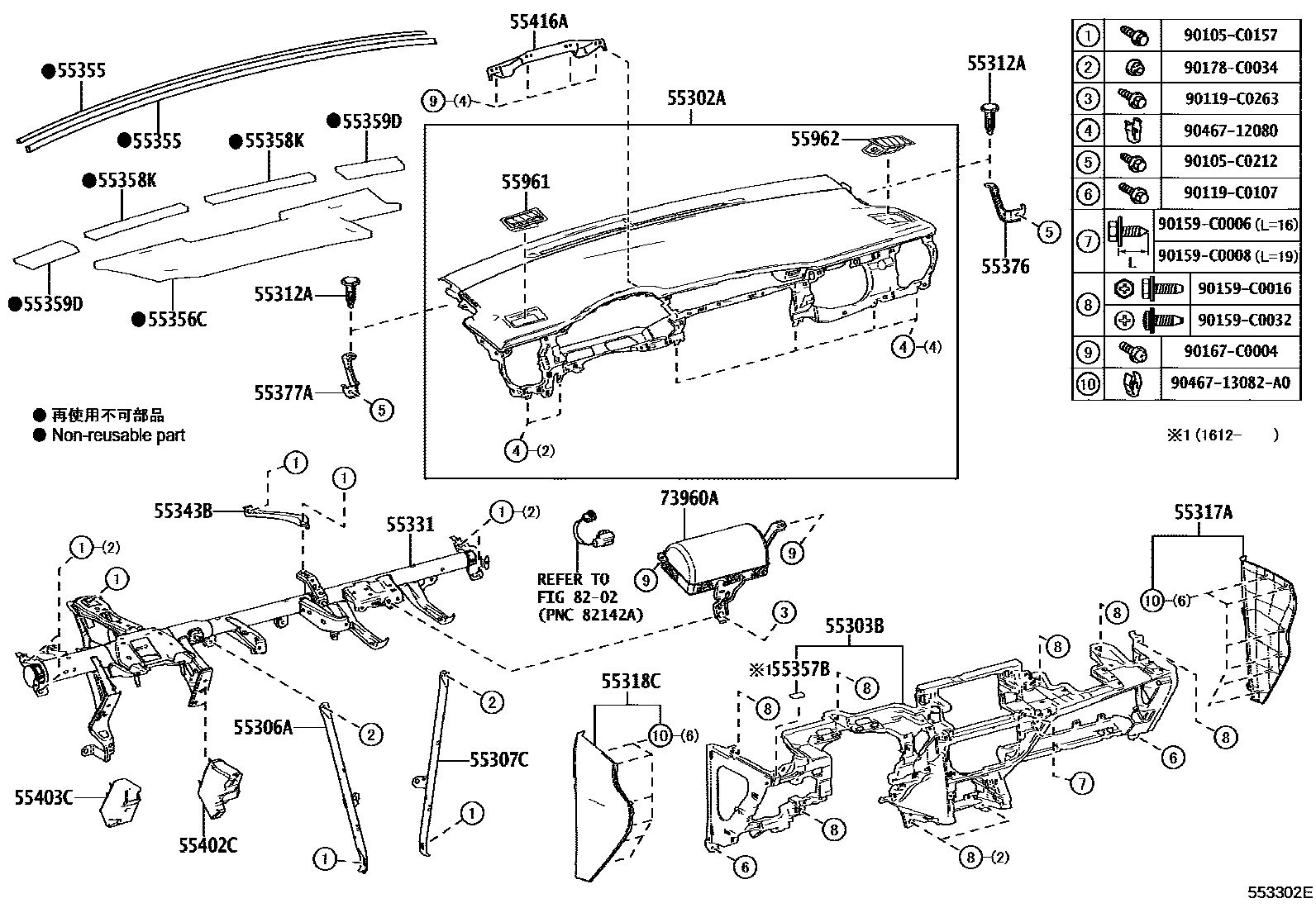

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-02620-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM2#

main55302-02620-C0iNRE181,ZRE182,ZWE182..E,G,N201511-201706

BLACK,TRIM0#,2#

main55302-02760-C0iZRE182..V201408-201510

BLACK,TRIM0#,2#

sub55302-02620

main55302-02760-C0iZRE182..V201408-201510

BLACK,TRIM2#

sub55302-02620

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-02470-C0iZRE18#,ZWE182..E,G,N201511-201612

BLACK,TRIM0#,2#

main55303-02470-C0iZRE182,ZWE182..V201511-201612

BLACK,TRIM2#

main55303-02471-C0iNRE181,ZRE182,ZWE182..E,G,N201612-201706

BLACK,TRIM2#

main55303-02471-C0iZRE182,ZWE182..V201612-201706

BLACK,TRIM0#,2#

main55303-02472-C0iZRE182,ZWE182..V201701-201702

BLACK,TRIM2#

sub55303-02471

main55303-02472-C0iNRE181,ZRE182,ZWE182..E,G,N201701-201702

BLACK,TRIM0#,2#

sub55303-02471

main55303-02500-C0iZRE18#..E,G,N201408-201510

BLACK,TRIM0#,2#

sub55303-02470

main55303-02500-C0iZRE182..V201408-201510

BLACK,TRIM2#

sub55303-02470

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-02680iZRE181;ZRE182..6F201408-201706

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-02430iNRE181,ZRE182,ZWE182201408-201706

55312ACLIP, INSTRUMENT PANEL

main52161-02040iNRE181,ZRE182,ZWE182201611-201706

(L)

main52161-16010iZRE18#,ZWE182201408-201611

sub52161-0K040

main52161-16010iNRE181,ZRE182,ZWE182201611-201706

(J)

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55317-02560-C0iZRE182..V201408-201510

BLACK,TRIM0#,2#

sub55317-02561

main55317-02560-C0iZRE18#..E,G,N201408-201510

BLACK,TRIM2#

sub55317-02561

main55317-02561-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM0#,2#

main55317-02561-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-02250-C0iZRE18#..E,G,N201408-201510

BLACK,TRIM2#

sub55318-02251

main55318-02250-C0iZRE182..V201408-201510

BLACK,TRIM0#,2#

sub55318-02251

main55318-02251-C0iNRE181,ZRE182,ZWE182..E,G,N201511-201706

BLACK,TRIM0#,2#

main55318-02251-C0iZRE182,ZWE182..V201511-201706

BLACK,TRIM2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-02820iNRE181,ZRE182,ZWE182201408-201706

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-02250iNRE181,ZRE182,ZWE182201408-201706

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-02460iNRE181,ZRE182,ZWE182201408-201706

8 X 8 X 1025

main55355-02470iNRE181,ZRE18#,ZWE182201408-201706

8 X 12 X 1025

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-02350iZRE182..CVT;NRE181,ZWE182201408-201706

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-02290iNRE181,ZRE182,ZWE182201612-201706

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-02180iZRE181;ZRE182..6F201408-201706

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-02180iZRE181;ZRE182..6F201408-201706

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-02170iZRE181;ZRE182..6F201408-201706

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-02160iZRE181;ZRE182..6F201408-201706

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-02090iZRE181;ZRE182..6F201408-201706

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-02190iZRE181;ZRE182..6F201408-201706

55416ARETAINER, METER HOOD, NO.1

main55416-02260iZRE181;ZRE182..6F201408-201706

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-02240-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

main55961-02240-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-02200-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM2#

main55962-02200-C0iZRE182,ZWE182..V201408-201706

BLACK,TRIM0#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-02240iZRE181;ZRE182..6F201408-201809

sub73960-02241

main73960-02241iNRE181,ZRE182,ZWE182201810

8202

90105C0157

main90105-C0157

90105C0212

main90105-C0212

90119C0107

main90119-C0107

90119C0263

main90119-C0263

90159C0006

main90159-C0006

90159C0008

main90159-C0008

90159C0016

main90159-C0016

90159C0032

main90159-C0032

90167C0004

main90167-C0004

90178C0034

main90178-C0034

9046712080

main90467-12080

9046713082A0

main90467-13082A0

35 parts on this diagram · 7 diagrams in section
