HOOD & FRONT FENDER

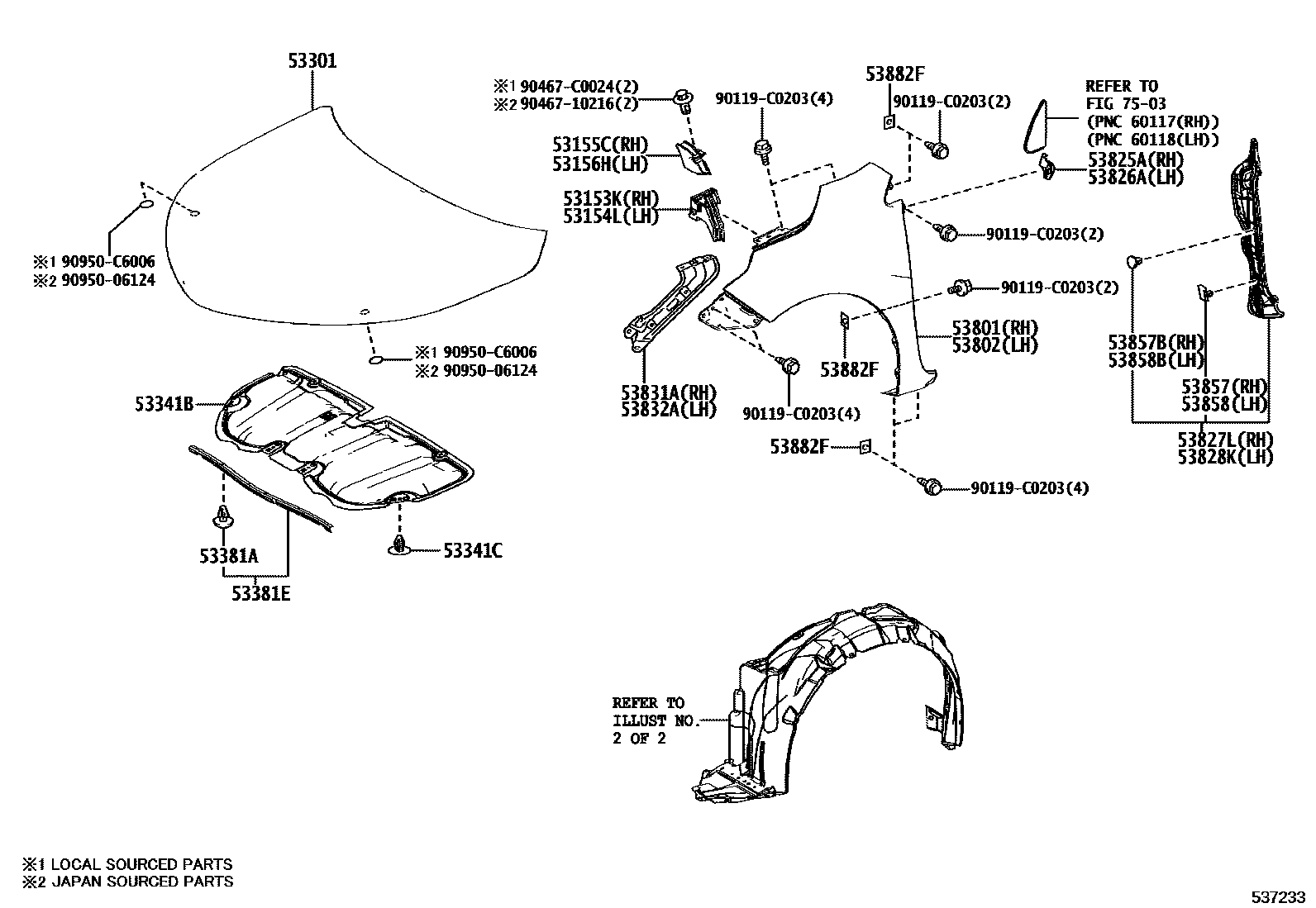

Parts diagram

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02080i201408-201611

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02080i201408-201611

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-02100i201408-201611

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-02090i201408-201611

53301HOOD SUB-ASSY

main53301-02350i201408-201706

53341BINSULATOR, HOOD

main53341-02360i201408-201611

53341CCLIP(FOR HOOD INSULATOR)

main90467-C0006×6i201408-201611

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×6i201408-201611

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-02240i201408-201503

main53381-02250i201504-201611

53801FENDER SUB-ASSY, FRONT RH

main53811-02430i201408-201611

53802FENDER SUB-ASSY, FRONT LH

main53812-02430i201408-201611

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02140i201408-201706

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02140i201408-201706

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02150i201408-201611

main53827-02151i201709

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02230i201408-201611

main53828-02231i201709

53831APANEL, FRONT FENDER SIDE, UPPER RH

main53831-02150i201408-201611

53832APANEL, FRONT FENDER SIDE, UPPER LH

main53832-02130i201408-201706

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010i201408-201611

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011i201408-201611

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010i201408-201611

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011i201408-201611

53882FSEAL, FRONT FENDER

main53882-0D030×8i201808

(L)

main53882-33060×8i201808

(J)

7503SIDE MOULDING

→ Go to FIG 75-03

90119C0203

main90119-C0203

9046710216

main90467-10216

90467C0024

main90467-C0024

9095006124

main90950-06124

90950C6006

main90950-C6006

28 parts on this diagram · 2 diagrams in section
