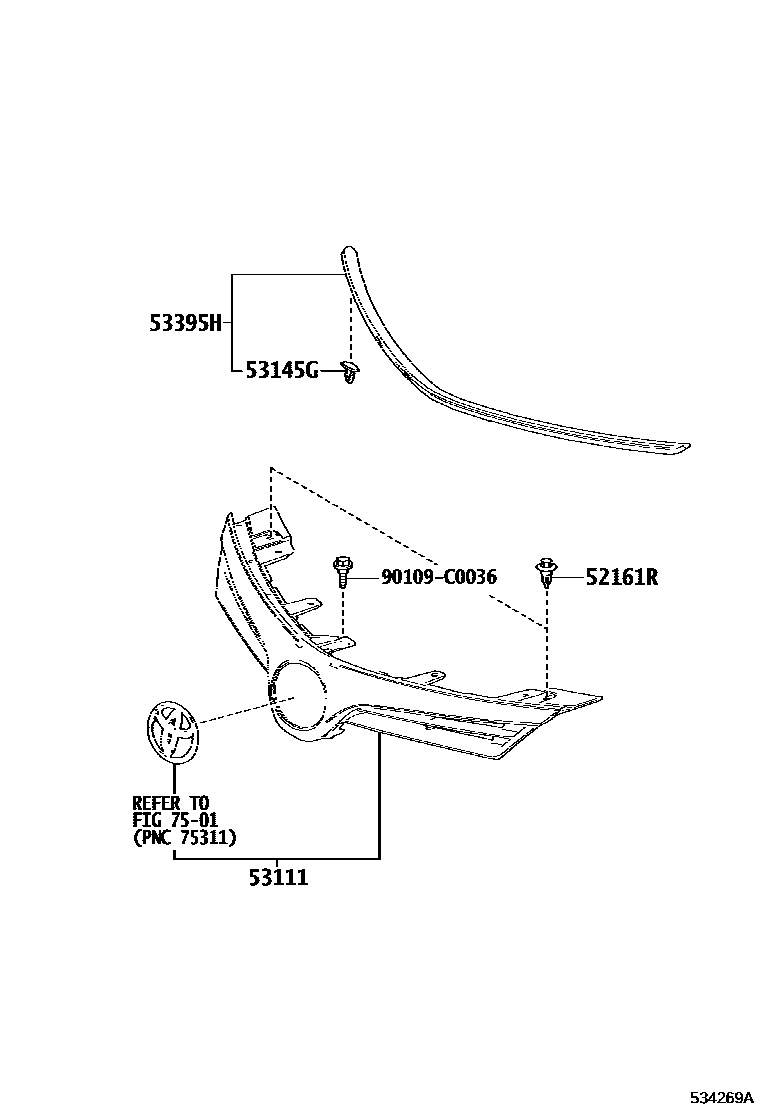

RADIATOR GRILLE

0001 1 0003 1

52161RPIECE, FRONT BUMPER

main52161-02040×2iZRE18#201408-201610

(L)

main52161-0E030×2iNRE181,ZRE18#201610-201706

(L)

main52161-16010×2iNRE181,ZRE182,ZWE182201706

(J)

53111GRILLE, RADIATOR

main53100-02430iNRE181;ZRE182..CVT201408-201706

PLATED

main53100-02850iZWE182201512-201706

PLATED

main53100-02C60iNRE181,ZRE182201706

PLATED

53145GCLIP, RADIATOR GRILLE

main53145-60030×9iZRE181;ZRE182..6F201408-201611

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-02150iZRE181;ZRE182..6F201408-201611

90109C0036

main90109-C0036

5 parts on this diagram · 2 diagrams in section
