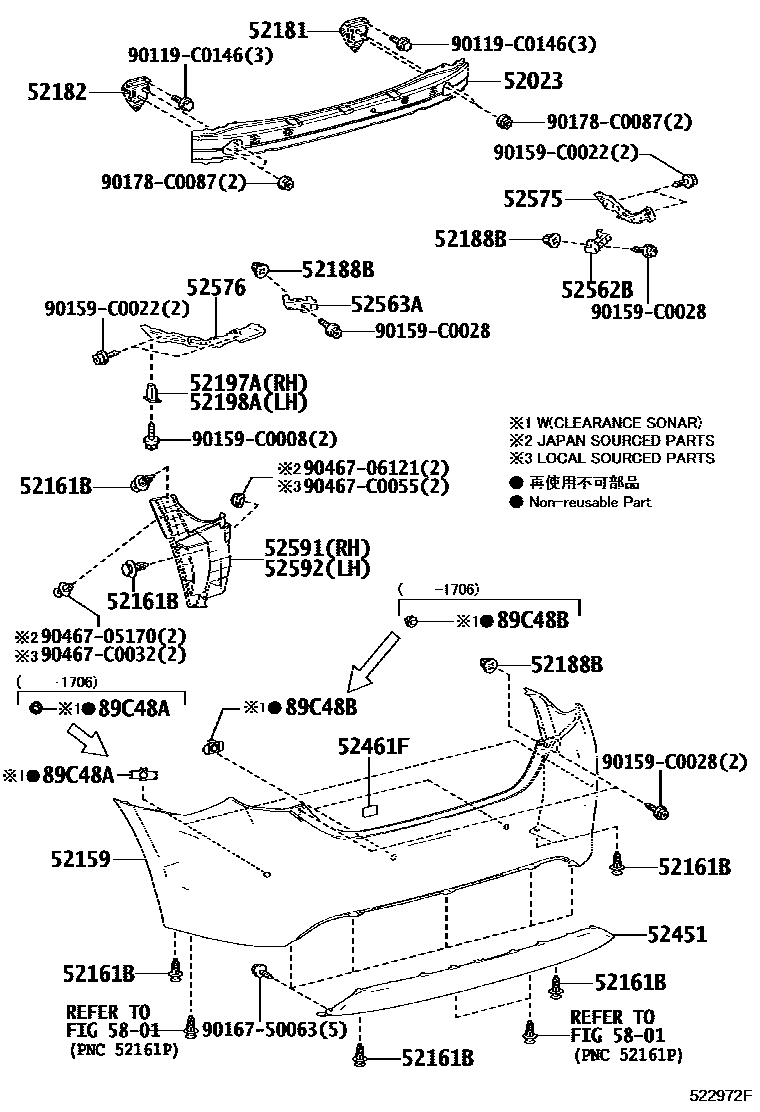

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-02220iZRE181;ZRE182..6F201408-201611

52159COVER, REAR BUMPER

main52159-0Z918iZWE182;NRE181,ZRE18#..G,N,V201408-201706

PAINT REQ.

main52159-0Z919iNRE181,ZRE181..E201408-201706

PAINT REQ.

main52159-0Z942iZWE182..G,V;NRE181,ZRE182..E,G,V201706

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040×8iZRE18#201408-201610

(L)

main52161-0E030×8iNRE181,ZRE18#201610-201706

(L)

main52161-16010×8iNRE181,ZRE182,ZWE182201706

(J)

sub52161-0K040

52181ARM, REAR BUMPER, RH

main52181-02230iNRE181,ZRE182,ZWE182201706

52182ARM, REAR BUMPER, LH

main52182-02200iZRE181;ZRE182..6F201408-201611

52188BSPACER, REAR BUMPER MOUNTING

main52188-06040×4iNRE181,ZRE182,ZWE182201706

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-06010iZRE181;ZRE182..6F201408-201611

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-06010iZRE181;ZRE182..6F201408-201611

52451GUARD, REAR BUMPER

main52453-02130iZRE181;ZRE182..6F201408-201611

52461FPAD, REAR BUMPER

main52462-02230iZRE181;ZRE182..6F201408-201611

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02280iNRE181,ZRE182,ZWE182201706

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02280iNRE181,ZRE182,ZWE182201706

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02170iZRE181;ZRE182..6F201408-201611

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02170iZRE181;ZRE182..6F201408-201611

52591SEAL, REAR BUMPER SIDE, RH

main52591-02330iNRE181;ZRE182..CVT201408-201705

main52591-02331iNRE181,ZRE182201706

main52591-02350iZWE182201512-201611

main52591-02351iZWE182201706

52592SEAL, REAR BUMPER SIDE, LH

main52592-02330iZRE182..6F;ZRE181,ZWE182201408-201611

main52592-02331iZWE182201612-201706

5801

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-02090-A0×2iNRE181,ZRE181..E201408-201706

WHITE PEARL CS.,070

main89348-02090-B0×2iNRE181,ZRE181..E201408-201706

SILVER ME.,1D4

main89348-02090-B1×2iZRE181..E201408-201611

GRAY ME.,1G3

main89348-02090-C0×2iNRE181,ZRE181..E201408-201706

ATTITUDE BLACK MC.,218

main89348-02090-D0×2iNRE181,ZRE181..E201408-201706

RED M.M.,3R3

main89348-02090-E0×2iNRE181,ZRE181..E201408-201706

ORANGE ME.,4R8

main89348-02090-E2×2iNRE181..E201612-201706

DK. BROWN M.M.,4U3

main89348-02090-J0×2iNRE181,ZRE181..E201408-201706

BLUE ME.,8T7

main89348-02100×2iZRE182,ZWE182..V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-02090-A0×2iNRE181,ZRE181..E201408-201706

WHITE PEARL CS.,070

main89348-02090-B0×2iNRE181,ZRE181..E201408-201706

SILVER ME.,1D4

main89348-02090-B1×2iZRE181..E201408-201611

GRAY ME.,1G3

main89348-02090-C0×2iNRE181,ZRE181..E201408-201706

ATTITUDE BLACK MC.,218

main89348-02090-D0×2iNRE181,ZRE181..E201408-201706

RED M.M.,3R3

main89348-02090-E0×2iNRE181,ZRE181..E201408-201706

ORANGE ME.,4R8

main89348-02090-E2×2iNRE181..E201612-201706

DK. BROWN M.M.,4U3

main89348-02090-J0×2iNRE181,ZRE181..E201408-201706

BLUE ME.,8T7

main89348-02100×2iZRE182,ZWE182..V201706-201905

AUDIO-*DA(ACCESSORY) & *BT & 4SPEAKER

90119C0146

main90119-C0146

90159C0008

main90159-C0008

90159C0022

main90159-C0022

90159C0028

main90159-C0028

9016750063

main90167-50063

90178C0087

main90178-C0087

9046705170

main90467-05170

9046706121

main90467-06121

90467C0032

main90467-C0032

90467C0055

main90467-C0055
