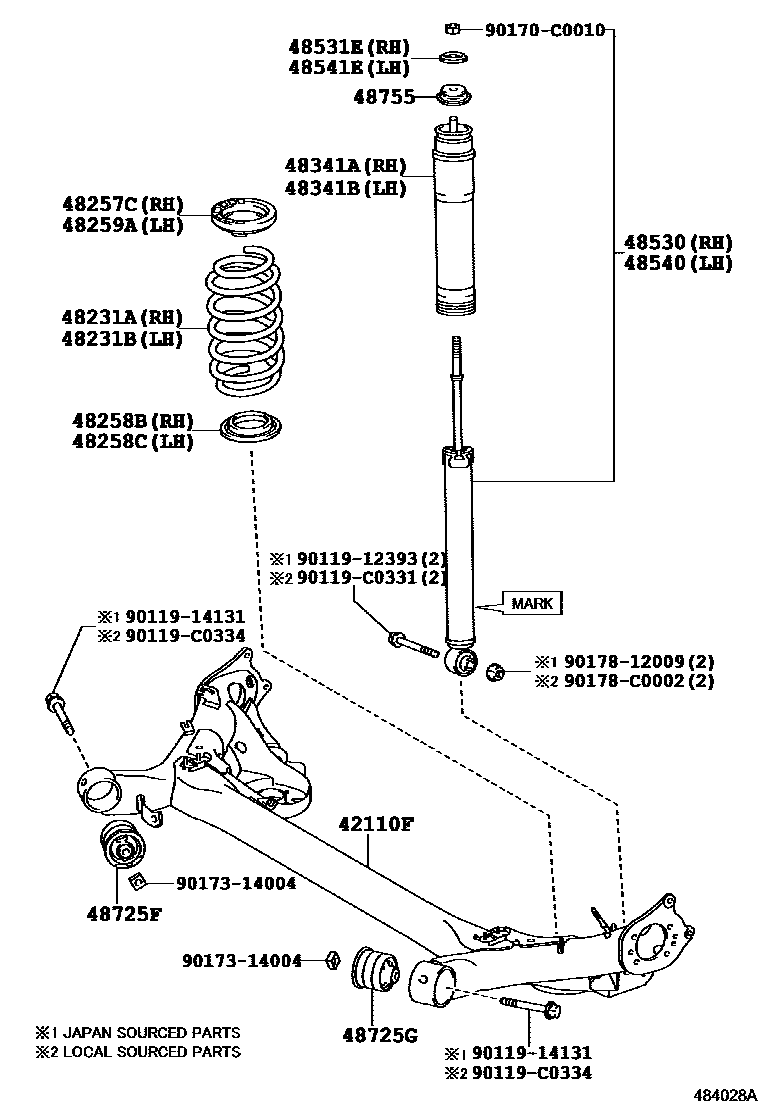

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-02380iZRE181;ZRE182..6F201408-201611

48231ASPRING, COIL, REAR RH

main48231-02G90iNRE181;ZRE182..CVT201408-201706

main48231-02J30iZWE182201706

48231BSPRING, COIL, REAR LH

main48231-02G90iZRE181;ZRE182..6F201408-201611

main48231-02J30iZWE182201706

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-0D070iNRE181,ZRE182,ZWE182201706

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-0D090iZRE182..CVT;NRE181,ZWE182201408-201706

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-0D090iZRE182..CVT;NRE181,ZWE182201408-201706

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-0D070iZRE181;ZRE182..6F201408-201611

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-02090iZRE182..CVT;NRE181,ZWE182201408-201706

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-02090iZRE181;ZRE182..6F201408-201611

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09Z30iZWE182201512-201706

MARK 48530-02E40

main48530-8Z012iZRE18#201408-201611

MARK 48530-02E20

main48530-8Z039iZRE182201612-201706

MARK 48530-02G70

main48530-8Z040iNRE181201612-201706

MARK 48530-02G50

main48530-8Z058iNRE181201706

MARK 48530-02J30

main48530-8Z059iZRE182201706

MARK 48530-02J40

main48530-8Z060iZWE182201706

MARK 48530-02J50

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90948-02159iNRE181,ZRE182,ZWE182201612-201706

(J)

main90948-C2005iNRE181,ZRE182,ZWE182201706-201804

(L)

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09Z30iZWE182201512-201706

MARK 48530-02E40

main48530-8Z012iZRE18#201408-201611

MARK 48530-02E20

main48530-8Z039iZRE182201612-201706

MARK 48530-02G70

main48530-8Z040iNRE181201612-201706

MARK 48530-02G50

main48530-8Z058iNRE181201706

MARK 48530-02J30

main48530-8Z059iZRE182201706

MARK 48530-02J40

main48530-8Z060iZWE182201706

MARK 48530-02J50

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90948-02159iNRE181,ZRE182,ZWE182201706-201804

(J)

main90948-C2005iNRE181,ZRE182,ZWE182201612-201706

(L)

48725FBUSH, REAR AXLE CARRIER, RH

main48725-0F020iZRE182..CVT;NRE181,ZWE182201408-201706

48725GBUSH, REAR AXLE CARRIER, LH

main48725-0F020iZRE181;ZRE182..6F201408-201611

48755SUPPORT, REAR SUSPENSION

main48755-02140×2iZRE181;ZRE182..6F201408-201611

9011912393

main90119-12393

9011914131

main90119-14131

90119C0331

main90119-C0331

90119C0334

main90119-C0334

90170C0010

main90170-C0010

9017314004

main90173-14004

9017812009

main90178-12009

90178C0002

main90178-C0002

24 parts on this diagram · 1 diagram in section
