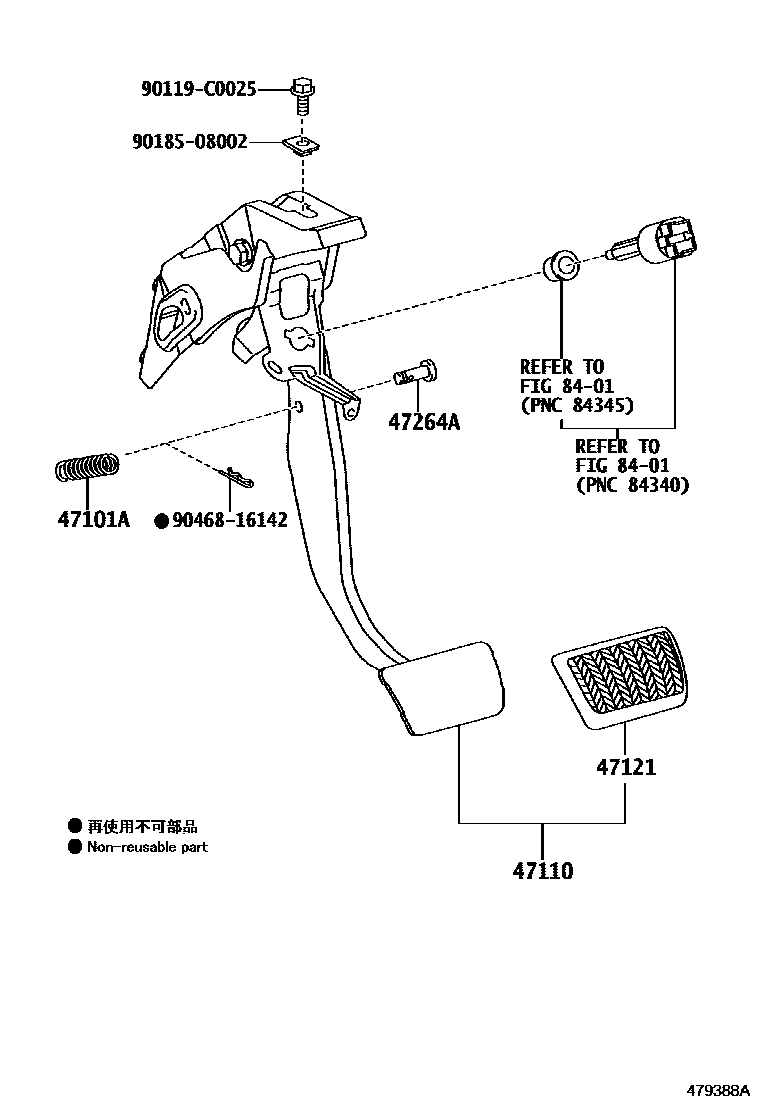

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14088iZWE182201512-201706

main90507-13010iZRE182..CVT201408-201612

main90507-15007iNRE181,ZRE182201612-201706

47110SUPPORT ASSY, BRAKE PEDAL

main47110-02380iZWE182201706

main47110-02810iNRE181,ZRE18#..MTM201408-201706

main47110-02820iNRE181,ZRE182..CVT201706

47121PAD, BRAKE PEDAL

main31321-42010iNRE181..6F201706

main47121-02110iZWE182201706

main47121-42010iZRE181..CVT201408-201611

47264APIN(FOR PUSH ROD)

main47148-33011iZRE181;ZRE182..6F201506-201611

main90249-08256iZRE18#201408-201505

main90249-08304iZWE182201512-201706

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0025

main90119-C0025

9018508002

main90185-08002

9046816142

main90468-16142

8 parts on this diagram · 2 diagrams in section
