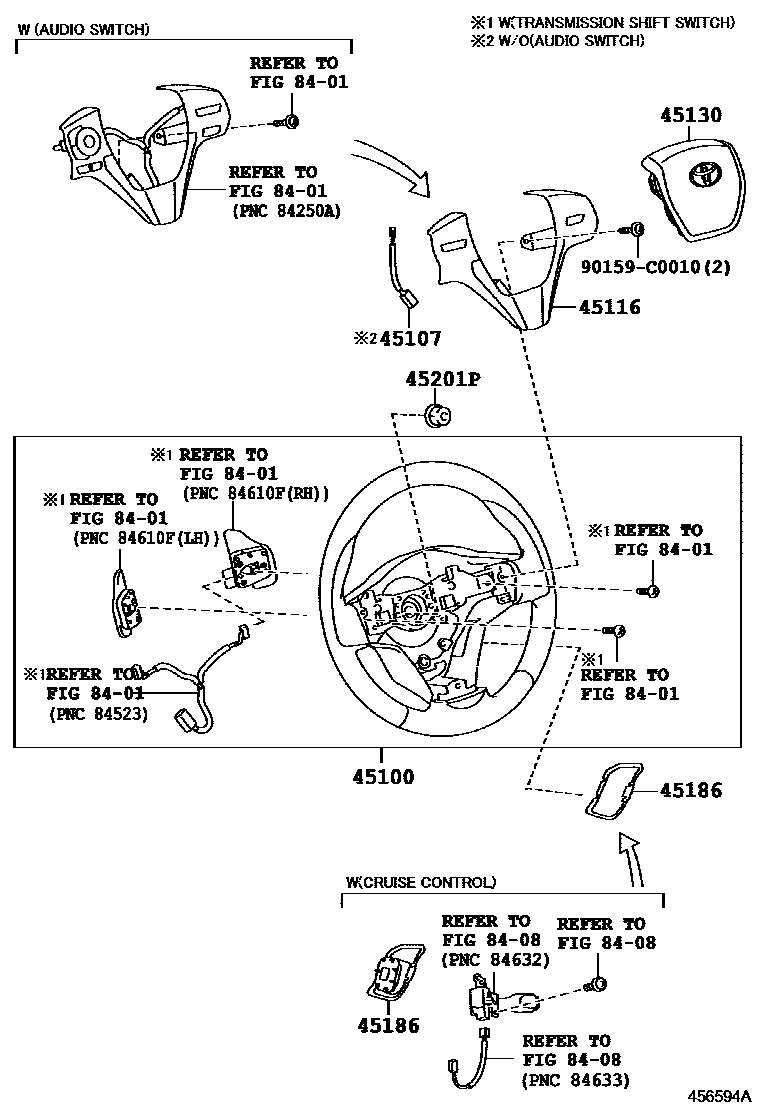

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#
3-SPOKE,URETHANE,BLACK,TRIM0#,2#
3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,BLACK,TRIM2#
45107WIRE SUB-ASSY, HORN BUTTON
LEATHER SEAT; R&D SEAT
45116ORNAMENT, STEERING WHEEL, NO.1
BLACK,TRIM0#,2#
BLACK,TRIM0#,2#
45130BUTTON ASSY, HORN
BLACK,TRIM0#,2#; BLACK,TRIM2#
45186COVER, STEERING WHEEL, LOWER NO.2
BLACK,TRIM0#,2#
BLACK,TRIM2#
45201PNUT, STEERING WHEEL SET
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
90159C0010
main90159-C0010
9 parts on this diagram · 1 diagram in section
