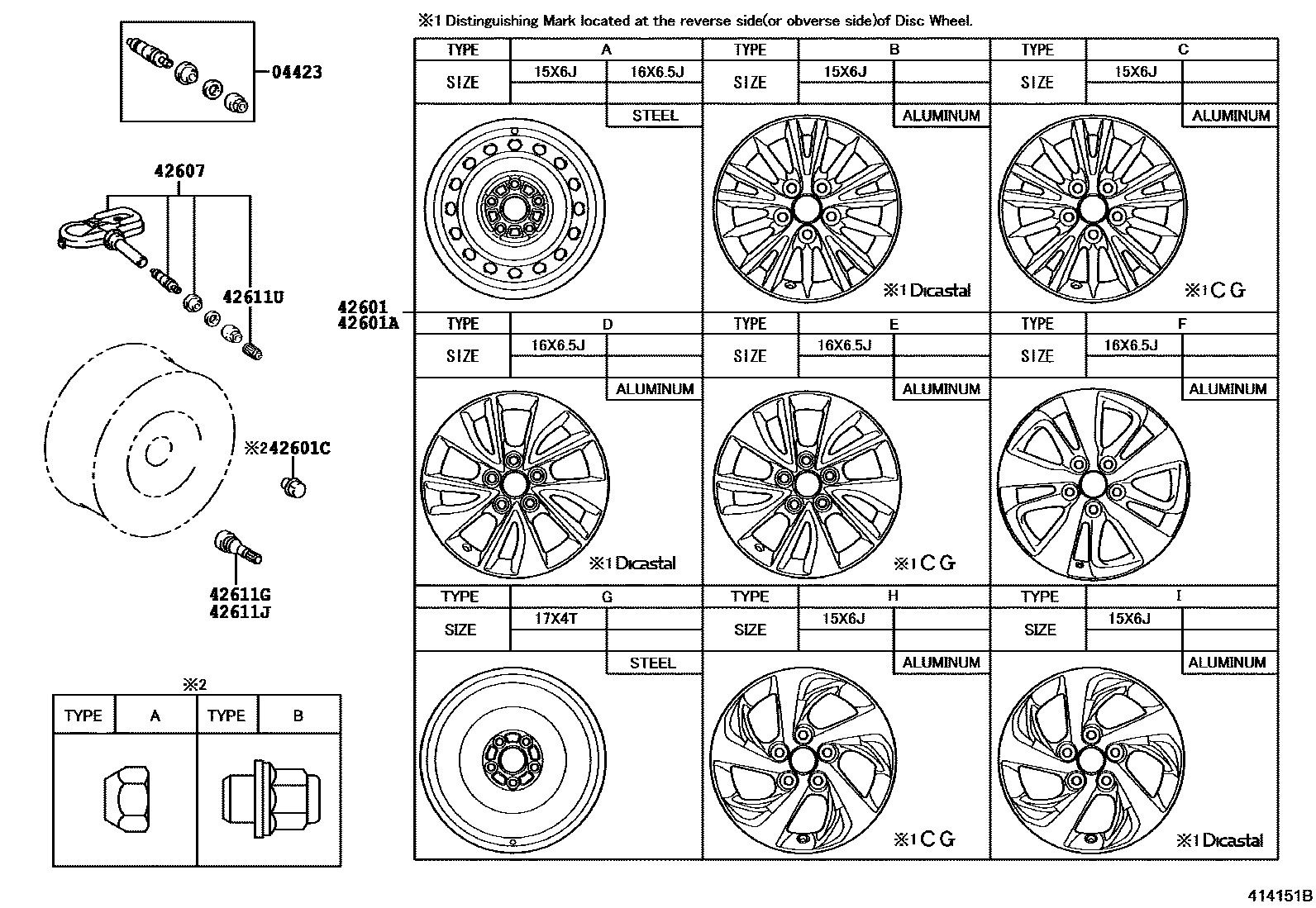

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
15X6J, #,TYPE H:REFER ILLUST.
15X6J, #,TYPE I:REFER ILLUST.
16X6.5J, #,LEATHER SEAT & 16INCH ALUMINUM WHEEL,TYPE E:REFER ILLUST.; 16X6.5J, #,TYPE E:REFER ILLUST.
16X6.5J, #,LEATHER SEAT & 16INCH ALUMINUM WHEEL,TYPE D:REFER ILLUST.; 16X6.5J, #,TYPE D:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
15X6J, #,TYPE C:REFER ILLUST.
15X6J, #,TYPE B:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE E:REFER ILLUST.; 16X6.5J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE E:REFER ILLUST.; 16X6.5J, #,TYPE E:REFER ILLUST.
16X6.5J, #,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE D:REFER ILLUST.; 16X6.5J, #,TYPE D:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
16X6.5J, #,TYPE F:REFER ILLUST.
15X6J, #,ACCESSORY&TIRE & DISC WHEEL-195/65R15 6J(ACCESSORY),TYPE C:REFER ILLUST.
16X6.5J, #,ACCESSORY,TYPE E:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE G:REFER ILLUST.
15X6J, #,TYPE A:REFER ILLUST.
16X6.5J,TIRE & DISC WHEEL-205/55R16 6.5J ALUMI GENERAL COUNTRIES,TYPE A:REFER ILLUST.; 16X6.5J,TYPE A:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42611GVALVE (FOR TUBELESS TIRE)
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
8 parts on this diagram · 3 diagrams in section
