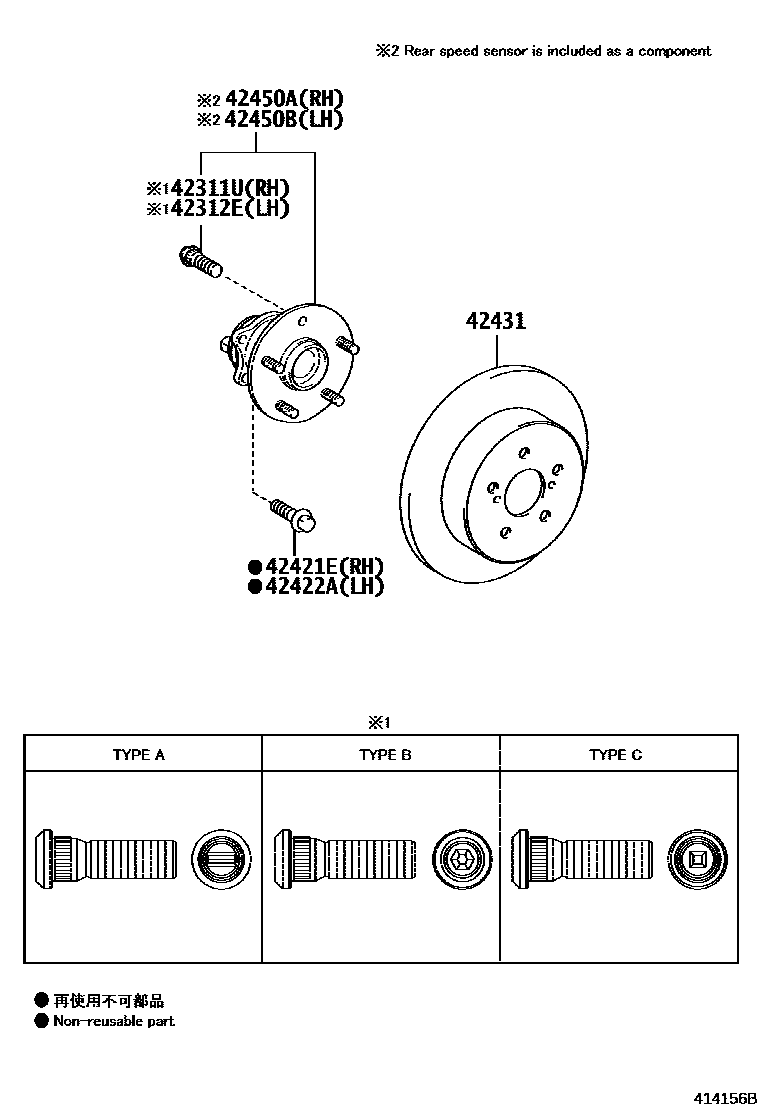

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZRE182..CVT;NRE181,ZWE182201408-201706

TYPE A:REFER ILLUST.

main90942-02081×5iZRE181;ZRE182..6F201408-201611

TYPE B:REFER ILLUST.

main90942-02082×5iZRE181;ZRE182..6F201408-201611

TYPE C:REFER ILLUST.

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iNRE181,ZRE182,ZWE182201706

TYPE A:REFER ILLUST.

main90942-02081×5iZRE181;ZRE182..6F201408-201611

TYPE B:REFER ILLUST.

main90942-02082×5iZRE181;ZRE182..6F201408-201611

TYPE C:REFER ILLUST.

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-C0045×4iZRE181;ZRE182..6F201408-201611

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-C0045×4iZRE181;ZRE182..6F201408-201611

42431DISC, REAR

main42431-02300×2iZRE181;ZRE182..6F201408-201611

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02280iNRE181,ZRE18#,ZWE182201408-201706

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02280iNRE181,ZRE18#,ZWE182201408-201706

7 parts on this diagram · 1 diagram in section
