TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

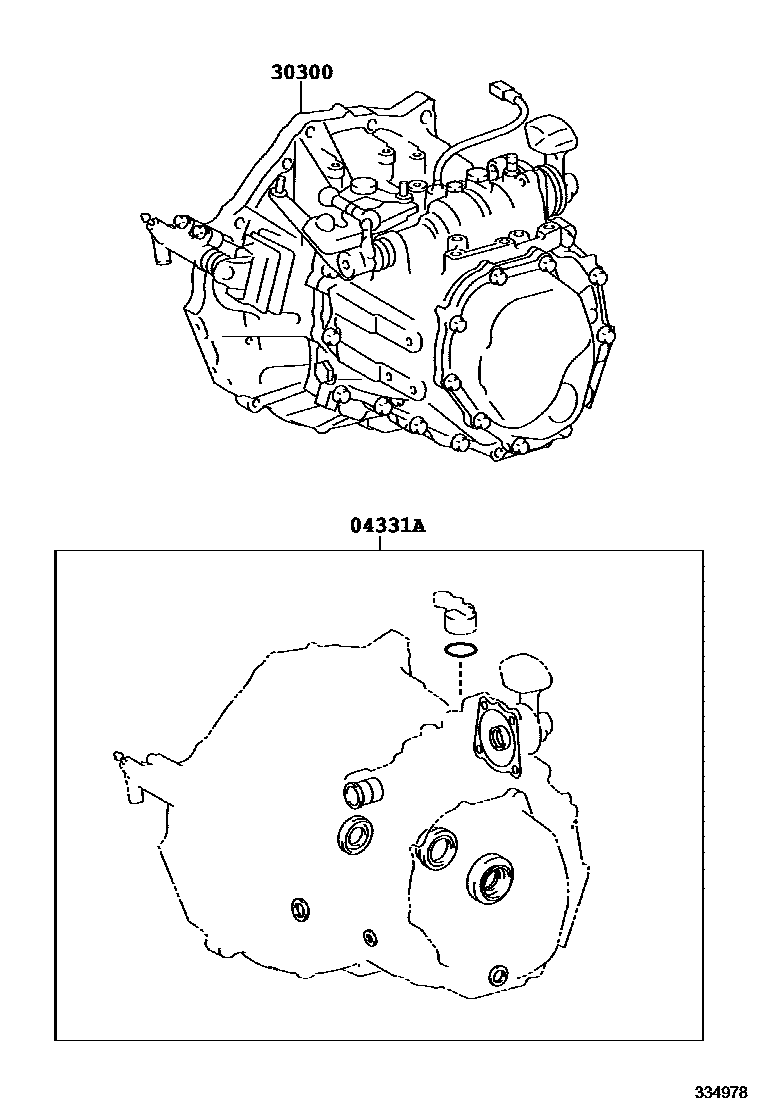

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-02101i201408-201611

main04331-20252i201408-201611

main04331-20270i201612-201706

30300TRANSAXLE ASSY, MANUAL

main30300-02370i201408-201611

C51

main30300-12G20i201408-201611

EC60

main30300-12G80i201612-201706

EC6A

2 parts on this diagram · 2 diagrams in section
