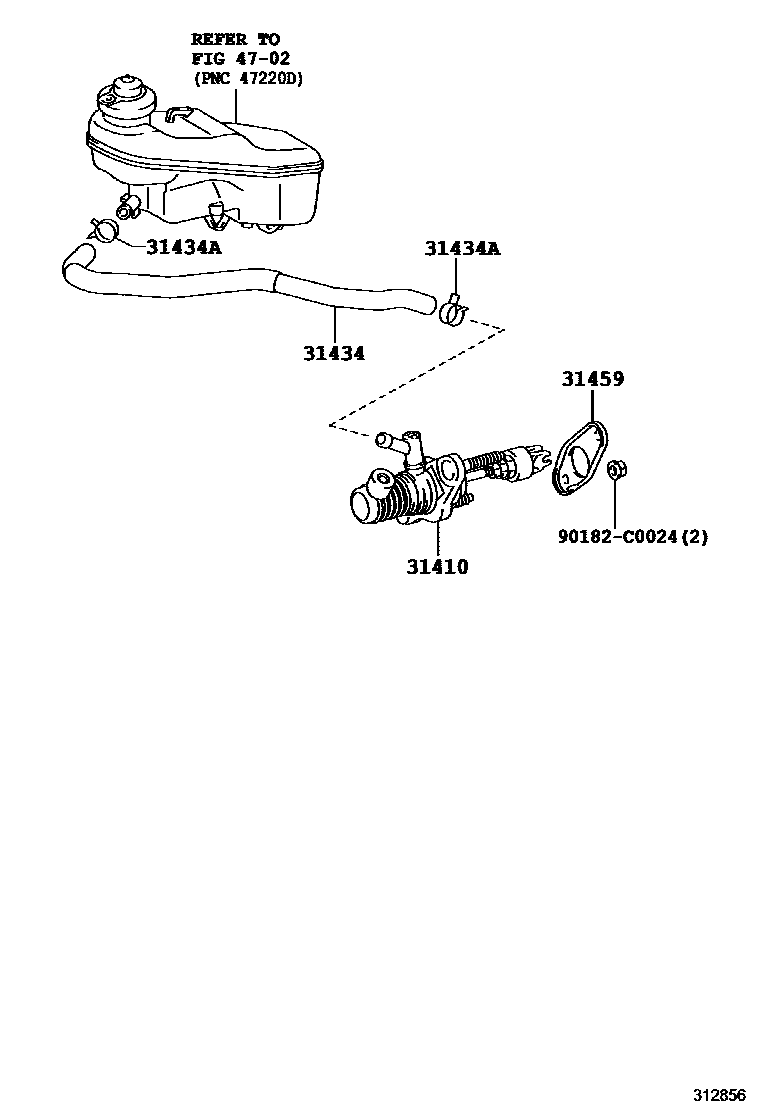

CLUTCH MASTER CYLINDER

31410CYLINDER ASSY, CLUTCH MASTER

main31420-02070iNRE181..6F201706

31434TUBE, CLUTCH RESERVOIR

main31434-12100iZRE18#..MTM201408-201611

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main90466-C0021×2iNRE181..6F201408-201706

(L)

main96136-41801×2iNRE181..6F201408-201706

(J)

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-42040iNRE181..6F201706

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

90182C0024

main90182-C0024

6 parts on this diagram · 1 diagram in section
