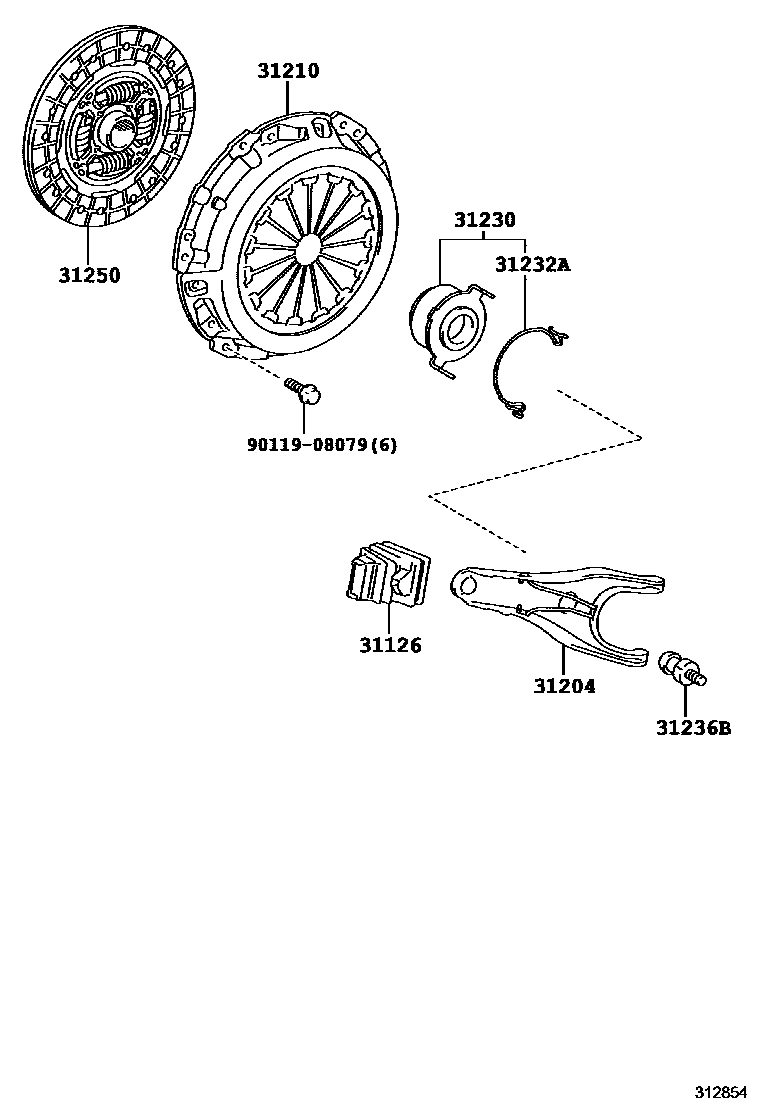

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D040iZRE181..5F201408-201611

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D030iZRE181..5F201408-201611

31210COVER ASSY, CLUTCH

main31210-02290iNRE181..6F201706

main31210-02320iZRE182..6F201408-201611

(L)

main31210-12340iZRE182..6F201408-201611

(J)

main31210-52053iZRE181..5F201408-201611

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D010iZRE181..5F201408-201512

main31230-0D011iZRE181..5F201512-201611

31232ACLIP, RELEASE BEARING HUB

main31232-0D010iZRE181..5F201512-201611

main31232-12070iZRE181..5F201408-201512

31236BSUPPORT, RELEASE FORK

main31236-0D010iZRE181..5F201408-201611

31250DISC ASSY, CLUTCH

main31250-02270iNRE181..6F201706

main31250-02290iZRE182..6F201408-201611

(L)

main31250-12510iZRE181..5F201408-201611

main31250-12600iZRE182..6F201408-201611

(J)

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
