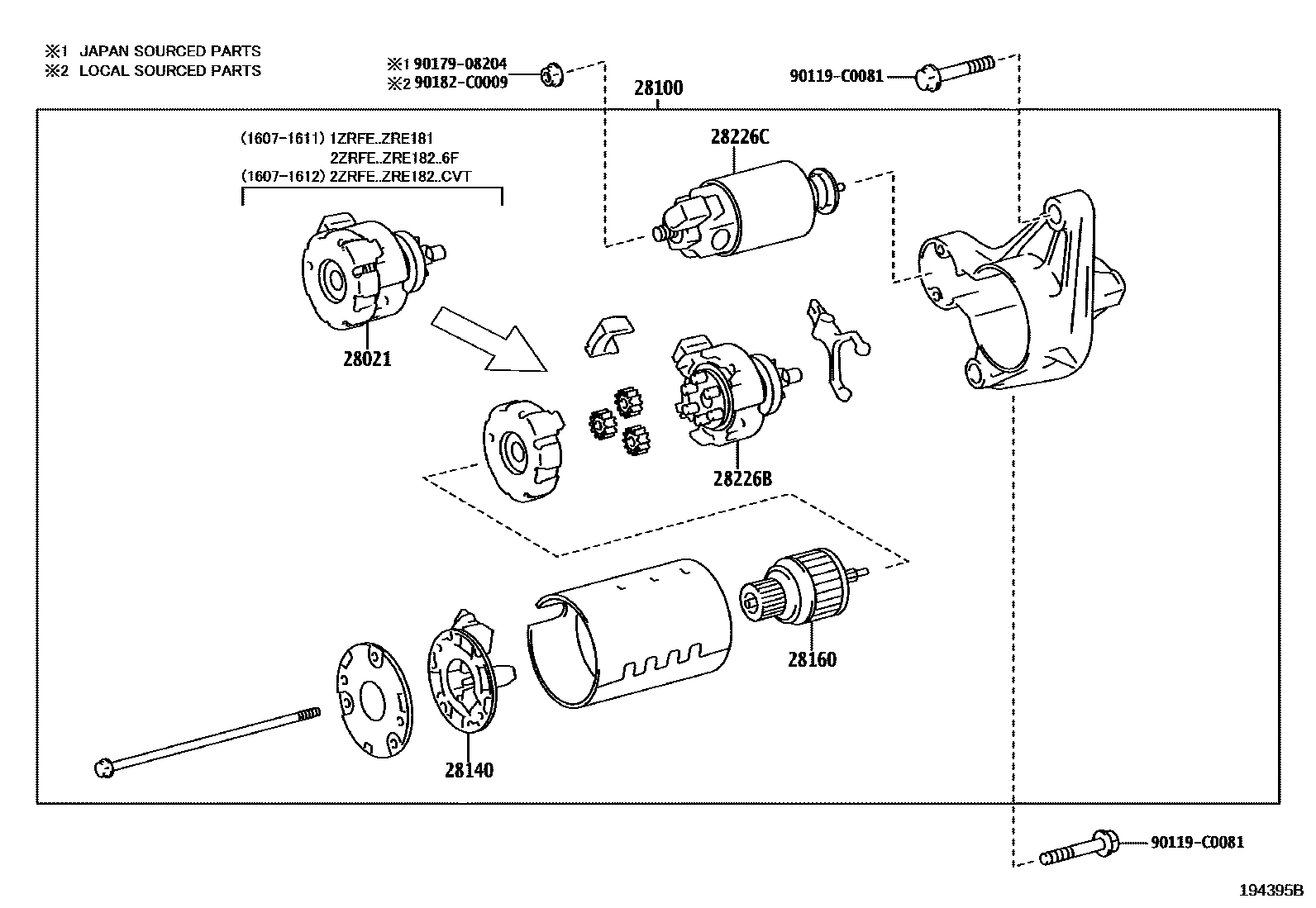

STARTER

0001 112V 1.2KW 0003 112V 1.7KW 0004 112V 1.7KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201607-201612

main28021-0T360i2ZRFE..ZRE182201612-201706

main28021-0Y400i9NRFTS..NRE181..CVT201612-201706

28100STARTER ASSY

main28100-0T220i2ZRFE..ZRE182201612-201809

12V 1.7KW

main28100-0T221i2ZRFE..ZRE182201809

12V 1.7KW

main28100-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201408-201612

12V 1.2KW

main28100-0Y400i9NRFTS..NRE181..CVT201612-201809

12V 1.7KW

main28100-0Y401i9NRFTS..NRE181..CVT201809

12V 1.7KW

main28100-0Y420i9NRFTS..NRE181..6F201612-201706

12V 1.7KW

28140HOLDER ASSY, STARTER BRUSH

main28140-0T330i2ZRFE..ZRE182..CVT201502-201612

main28140-0T340i1ZRFE,2ZRFE..ZRE18#201408-201409

main28140-0V040i9NRFTS,2ZRFE..NRE181,ZRE182..CVT201612-201706

main28140-21070i1ZRFE,2ZRFE..ZRE18#201409-201502

28160ARMATURE ASSY, STARTER

main28160-0N110i9NRFTS..NRE181..CVT201612-201706

main28160-0S050i2ZRFE..ZRE182201612-201706

main28160-0T330i1ZRFE..ZRE181;2ZRFE..ZRE182..6F201502-201612

main28160-21080i1ZRFE,2ZRFE..ZRE18#201408-201502

28226BSTARTER KIT, REPAIR SERVICE

main28226-0T300i1ZRFE,2ZRFE..ZRE18#201502-201607

main28226-37100i9NRFTS,2ZRFE..NRE181,ZRE182..CVT201612-201706

main28226-47170i1ZRFE,2ZRFE..ZRE18#201408-201502

28226CSTARTER KIT, REPAIR SERVICE, NO.2

main28226-0T330i2ZRFE..ZRE182..CVT201502-201612

main28226-0T340i1ZRFE,2ZRFE..ZRE18#201408-201409

main28226-37130i1ZRFE,2ZRFE..ZRE18#201409-201502

90119C0081

main90119-C0081

9017908204

main90179-08204

90182C0009

main90182-C0009

9 parts on this diagram · 3 diagrams in section
