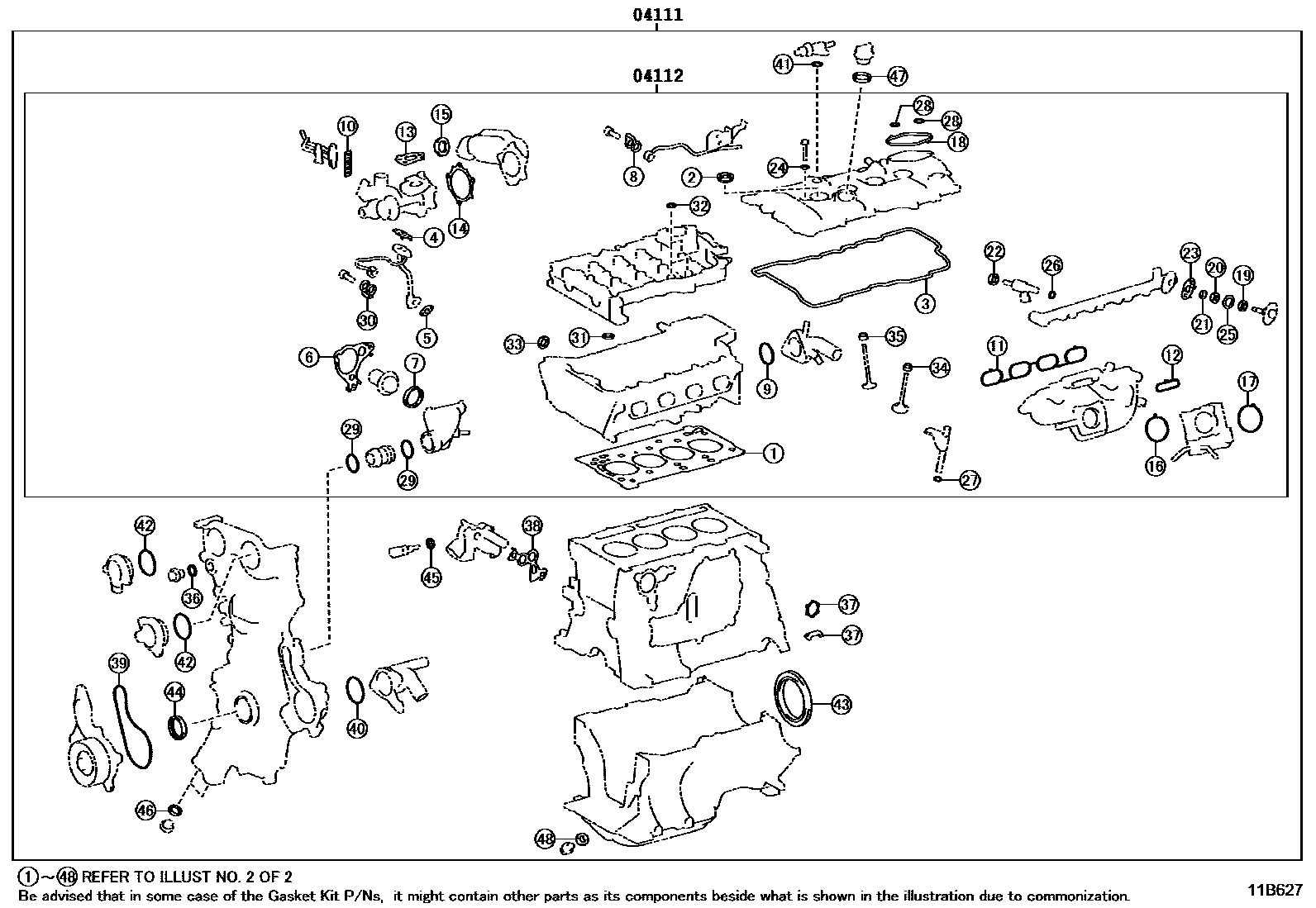

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-0T240i2ZRFE..ZRE182201408-201502

MADE IN CHINA

main04111-0T241i2ZRFE..ZRE182201502-201706

MADE IN CHINA

main04111-0T251i8ZRFXE..ZWE182201512-201706

main04111-0Y120i9NRFTS..NRE181; 9NRFTS..NRE181..6F201706

EXHAUST EMISSION CONTROL-JING 6

main04111-37470i1ZRFE..ZRE181; 2ZRFE..ZRE182201408-201502

MADE IN JAPAN

main04111-37471i1ZRFE,2ZRFE..ZRE18#201502-201706

MADE IN JAPAN

main04111-0Y150i9NRFTS..NRE181..CVT201810-201812

EXHAUST EMISSION CONTROL-CHINA 6B

04112GASKET KIT, ENGINE VALVE GRIND

main04112-0T023i2ZRFE..ZRE182201408-201502

MADE IN CHINA

main04112-0T024i1ZRFE..ZRE181201505-201706

MADE IN CHINA

main04112-0T220i8ZRFXE..ZWE182201706

main04112-0Y120i9NRFTS..NRE181201612-201706

main04112-37370i1ZRFE..ZRE181; 2ZRFE..ZRE182201408-201502

MADE IN JAPAN

main04112-37371i1ZRFE,2ZRFE..ZRE18#201502-201706

MADE IN JAPAN

main04112-0Y150i9NRFTS..NRE181..CVT201810-201812

EXHAUST EMISSION CONTROL-CHINA 6B

2 parts on this diagram · 6 diagrams in section
